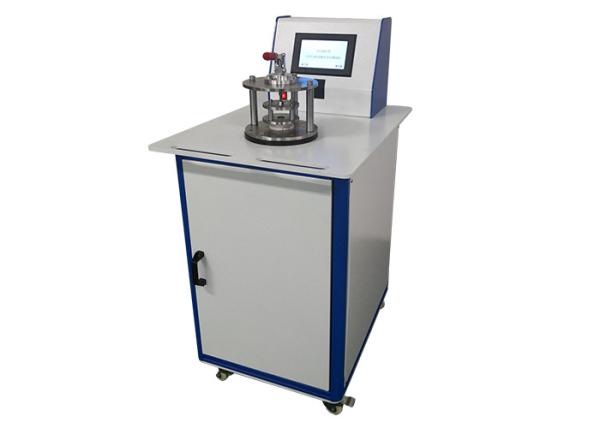

One Time Face Mask Air Permeability Testing Equipment Touch Screen Control ASTM Standard
One Time Face Mask Air Permeability Testing Equipment Touch Screen Control ASTM Standard
Specifications
Brand Name :
HAIDA
Model Number :
HD
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
30 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Standard :
ASTMF2100, YY 0469-2011, EN14683:2019
Power supply :
220V, 50Hz,300W
Measuring range :
0-2000Pa, accuracy: 1Pa
Weight :
25kg
Dimensions :
460mm x 500 mmx 670 mm
Description

ASTM Standard Touch Screen Control Disposable Medical Mask Air Permeability Testing Equipment

Product Introduction:

Disposable medical mask air permeability testing equipment​ is used to measure the pressure difference index of medical surgical masks under specified conditions.

Test Principle:
Disposable medical mask air permeability testing equipment​ measures the air flow that vertically passes through a given area of the sample within a certain period of time under the specified pressure difference, and calculates the breathability.

Permeability is the ability of a material to allow gases to pass under pressure.

Product Features:

1. HD color touch screen.

2. High precision imported digital differential pressure gauge.

3. High-precision imported flowmeter with high flow control accuracy.

Technical Parameters:

Measuring range 0-2000Pa, accuracy: 1Pa
Flowmeter range 0-10L/min, accuracy: 3%±
Exhaust volume of air pump 8L/min(1-100L/min adjustable)
Experimental area 4.9cm²,5.06cm²
Dimensions 460 x 500 x 670 mm
Power supply 220V, 50Hz,300W
Weight 25kg
Test standard YY 0469-2011, Y/T 0969-2013, EN14683:2019, ASTMF2100
