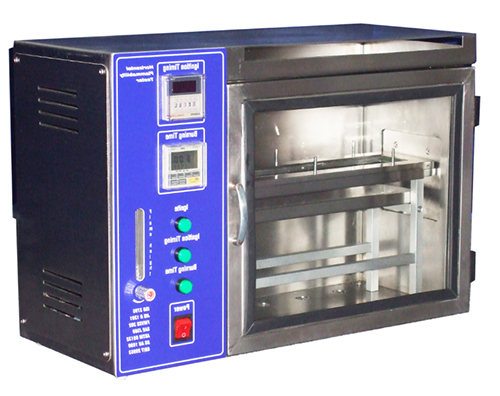

Stainless Steel Frame Automotive Interior Flammability Test Machine
Stainless Steel Frame Automotive Interior Flammability Test Machine
Specifications
Brand Name :
HAIDA
Model Number :
HD-F758
Certification :
CE，ISO
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
30 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Specimen ignition Time :
15s
Specimen undersurface to the burning bottom plate distance :
178mm
The distance front specimen holder to inner surface of the combustion chamber :
22mm
The distance outside specimen holder to inner surface of the combustion chamber :
50mm
Nozzle inner diameter :
Ø9.5mm
Air adjustment hole :
flame time 0 ~ 99min 99S(can be adjusted)
Description

stainless steel frame Automotive interior Flammability test machine

APPLICATIONS & TEST PURPOSE:

The machine is used to test foam relative combustion rate and flame resistance. It also applys to automobile interior materials flame retardant properties in the failure and non-normal state, it is with full stainless steel of whole frame.

DESIGN STANDARD: ISO 3795

Stainless Steel Frame Automotive Interior Flammability Test Machine

STANDARD FEATURES:

Specimen ignition Time 15s
Specimen undersurface to the burning bottom plate distance 178mm
The distance front specimen holder to inner surface of the combustion chamber 22mm
The distance outside specimen holder to inner surface of the combustion chamber 50mm
Nozzle inner diameter Ø9.5mm
Air adjustment hole flame time 0 ~ 99min 99S(can be adjusted)
Flame height 20mm to 100mm as per standard
Time setting range 0 ~ 9999.9s
Burning Angle 90 ° (0 °)
Thermometer 150 ℃, the resolution: 1 ℃
Resolution 0.1s
Combustion gas high purity liquid gas(provided by customer)
Configurations Control box, burning box body, burning lamp, solenoid valve, high pressure igniter, thermometer, signal control line, specimen holder

About us
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Stainless Steel Frame Automotive Interior Flammability Test Machine

Stainless Steel Frame Automotive Interior Flammability Test Machine

customer letter

Stainless Steel Frame Automotive Interior Flammability Test Machine

Stainless Steel Frame Automotive Interior Flammability Test Machine

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
