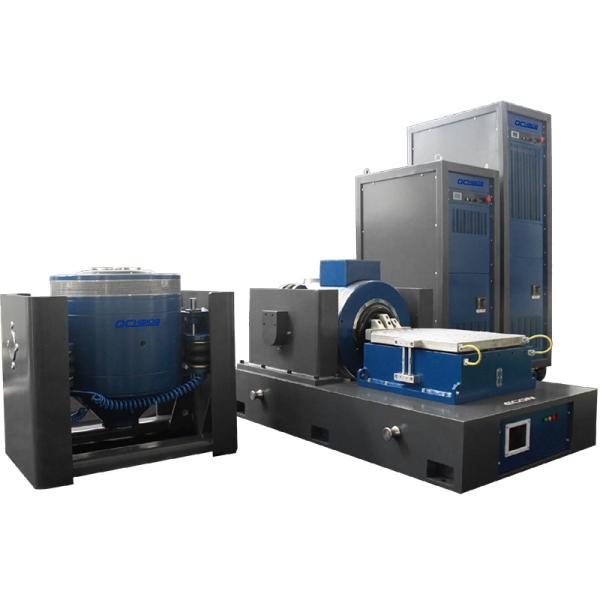

High Frequency Vibration Test System Electro Dynamic 3 Axis Vibration Table Test Machine
High Frequency Vibration Test System Electro Dynamic 3 Axis Vibration Table Test Machine
High Frequency Vibration Test System Electro Dynamic 3 Axis Vibration Table Test Machine
High Frequency Vibration Test System Electro Dynamic 3 Axis Vibration Table Test Machine
High Frequency Vibration Test System Electro Dynamic 3 Axis Vibration Table Test Machine
High Frequency Vibration Test System Electro Dynamic 3 Axis Vibration Table Test Machine
Specifications
Place of Origin :
China
Brand Name :
Haida
Model Number :
HD-G826
Certification :
CE, ISO
Packaging Details :
wooden case
Supply Ability :
10 Set/Sets per Month
Price :
$35,000.00 - $50,000.00/sets
Warranty :
1 year
Customized support :
OEM, ODM
Power :
Electronic
Frequency range :
5~2,600 Hz
Displacement (continuous) :
100 mm
Max. Velocity :
1.8 m/s
Max. Acceleration :
75 G
Amplifier output :
30 kVA
Rated output voltage :
120 Vrms
Amplifier efficiency :
> 90%
Air volume :
0.46 m3/s
Product name :
Electro-dynamic Vibration Table
Port :
Shenzhen , HongKong , Guangzhou
Description

High Frequency Electro-dynamic 3 Axis Vibration Table Test Machine

Product Description

Electromagnetic vibration table is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality.

Performance Data Sheet

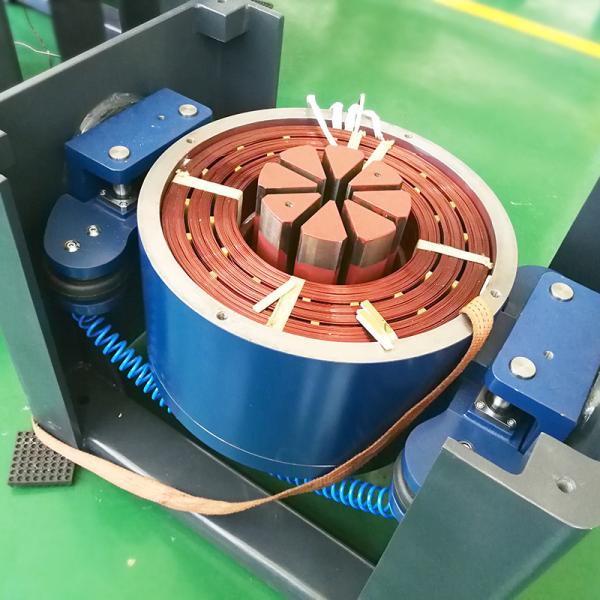

Vibration Shaker

Sine force (peak)

30kN

Shock force (peak)

60 kN

Frequency range

5~2,600 Hz

Displacement (continuous)

100 mm

Max. Velocity

1.8 m/s

Max. Acceleration

75 G

Armature Diameter

445 mm

1st order resonant frequency

2,400 Hz

Allowable eccentric moment

>500 Nxm

Armature weight

40 kg

HE/ST screw dimension

M10 (metric)

Axial vibration isolation frequency

<3 Hz

Max. Payload

500 kg

Magnetic flux leakage

≤1 mT

Dimensions (L×W×H, unpacked)

1,330x860x1,250 mm

Weight (unpacked)

2,500 kg

Installation

Rubber mat (anchor bolts required)

Power Amplifier

Amplifier output

30 kVA

SNR

>65 dB

Rated output voltage

120 Vrms

Amplifier efficiency

> 90%

Dimensions (L×W×H, unpacked)

800x900x2,100 mm

Weight (unpacked)

500 kg

Blower

Air volume

0.46 m3/s

Power

7.5 kW

Air duct diameter

200 mm

Air pressure

8.8kPa

Installation

Able to connect to ceiling (up to two 90 degree bends), max 20’ run

Horizontal Slip Table

Dimensions

600x600 mm

Thickness

45 mm

Frequency limit

2,000 Hz

Effective mass

54 kg

Note:

1. High pressure oil-film bearing is used for better uniformity.

Vibration Controller and Accelerometer

Vibration Controller VT-9008-4

4 Channel Vibration Controller with Sine and Self Calibration.

Accelerometer EA-YD-181

100mV/g, Range: 50g, Working Freq.: 1-10kHz, Weight: 11gram, with 10ft low noise cable

Other supported functions/accessories

Environmental chambers

Supported

Mobile devices

Customizable

Insulation boards

Customizable

Fixture

Customizable

Working environment of the system

Temperature range

0-40℃

Humidity range

0~90% , no condensation

Power requirements

380V/3ph/50Hz, 40kVA

Compressed air pressure

0.6 Mpa

Dimensions for reference only

High Frequency Vibration Test System Electro Dynamic 3 Axis Vibration Table Test Machine

High Frequency Vibration Test System Electro Dynamic 3 Axis Vibration Table Test Machine

Company Information

Our company Introduction:

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 15 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

High Frequency Vibration Test System Electro Dynamic 3 Axis Vibration Table Test Machine

Packaging & Shipping

Packaging & Shipping

Test machine are covered with air bubble film before put them into the wooden case.There are different modes of transportation to choose from: sea, air and land.

High Frequency Vibration Test System Electro Dynamic 3 Axis Vibration Table Test Machine

Our Services

Haida Equipment Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:

1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment

Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information:

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service

High Frequency Vibration Test System Electro Dynamic 3 Axis Vibration Table Test Machine

FAQ

Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con

Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:

www.haidatestequipment.com

If you want to know more information...

Please leave a message below and click " CONTACT SUPPLIER "

Thanks for your time and attention!
