Nozzle Inner Diameter Oslash 9.5mm Automotive Interior Materials Flammability Testing Equipment
Nozzle Inner Diameter Oslash 9.5mm Automotive Interior Materials Flammability Testing Equipment
Specifications
Brand Name :
HAIDA
Model Number :
6021-HD
Certification :
ISO,CE,
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Power Supply :
AC 220V, 50Hz
Fuel Gas :
High-purity liquefied gas (user-provided)
Overall Dimensions (L×W×H) :
1200×700×1500mm
Combustion Chamber Dimensions (L×W×H) :
385×204×360mm
Flame Application Time :
Adjustable: 0–3200.0 seconds
Burning Time :
Adjustable: 0–3200.0 seconds
Burner Angle :
Fixed at 90° (vertical)
Flame Height :
Adjustable: 20–100mm (standard-compliant)
Temperature Display :
Digital readout; Resolution: 0.1°C
Steel Ruler :
Length: 500mm; Accuracy: 1mm
Description

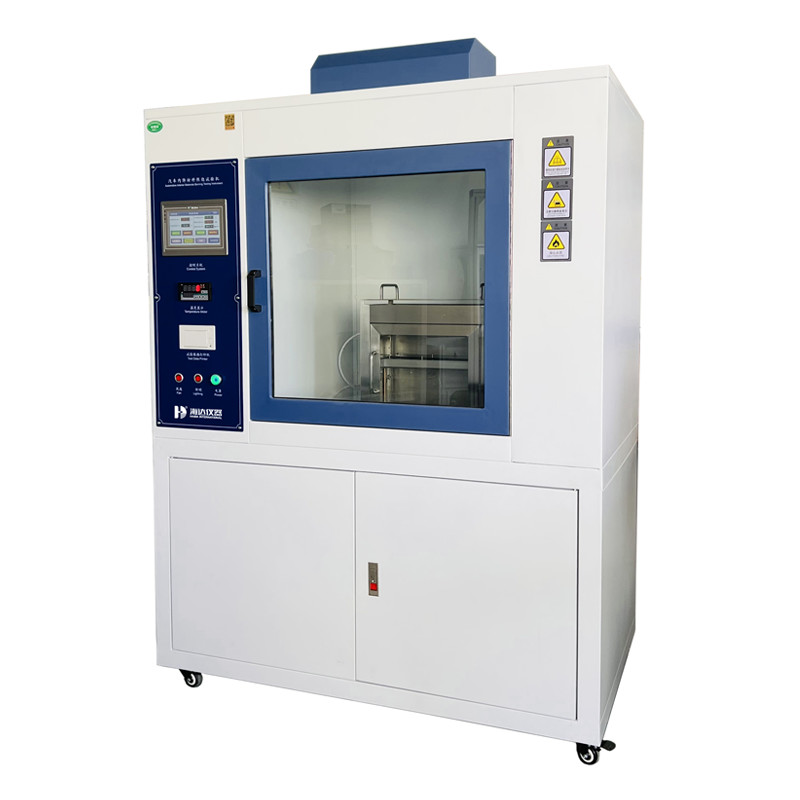

Automotive Interior Materials Flammability Tester

Description:

Automotive Interior Materials Flammability Tester is designed and manufactured in accordance with GB 8410-2006 to evaluate the horizontal burning characteristics of automotive interior materials.

Compliance Standards:

GB 8410-2006, ASTM D5132, FMVSS 571.302, ISO 3795

Key Features:

Stainless steel combustion chamber: Resistant to smoke and gas corrosion.

Automated control system: Includes automatic ignition, gas supply, timing, and test termination.

User-friendly interface: 7-inch color LCD touchscreen with real-time data display and printing.

Nozzle Inner Diameter Oslash 9.5mm Automotive Interior Materials Flammability Testing Equipment

Technical Parameters:

Model 6021-HD
Control System 7-inch color LCD touchscreen + PLC (Programmable Logic Controller), with built-in test data printer.
Display System Real-time monitoring of flame application time, burning time, and burning speed. Controls include flame start/stop and combustion length input.
Overall Dimensions (L×W×H) 1200×700×1500mm
Combustion Chamber Dimensions (L×W×H) 385×204×360mm
Flame Application Time Adjustable: 0–3200.0 seconds
Burning Time Adjustable: 0–3200.0 seconds
Burner Angle Fixed at 90° (vertical)
Burner Specifications Nozzle inner diameter: Ø9.5mm; Effective length: 100mm; Equipped with air adjustment holes
Flame Height Adjustable: 20–100mm (standard-compliant)
Temperature Display Digital readout; Resolution: 0.1°C
Steel Ruler Length: 500mm; Accuracy: 1mm
Fuel Gas High-purity liquefied gas (user-provided)
Configuration Includes:
• Control system
• Combustion chamber
• Burner assembly
• Solenoid valve
• High-voltage igniter
• Temperature display
• Signal control cables
• Upper/lower sample holders
• 500mm/1mm steel ruler
Power Supply AC 220V, 50Hz

ABOUT HAIDA

Nozzle Inner Diameter Oslash 9.5mm Automotive Interior Materials Flammability Testing Equipment

Nozzle Inner Diameter Oslash 9.5mm Automotive Interior Materials Flammability Testing Equipment

Nozzle Inner Diameter Oslash 9.5mm Automotive Interior Materials Flammability Testing Equipment

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
