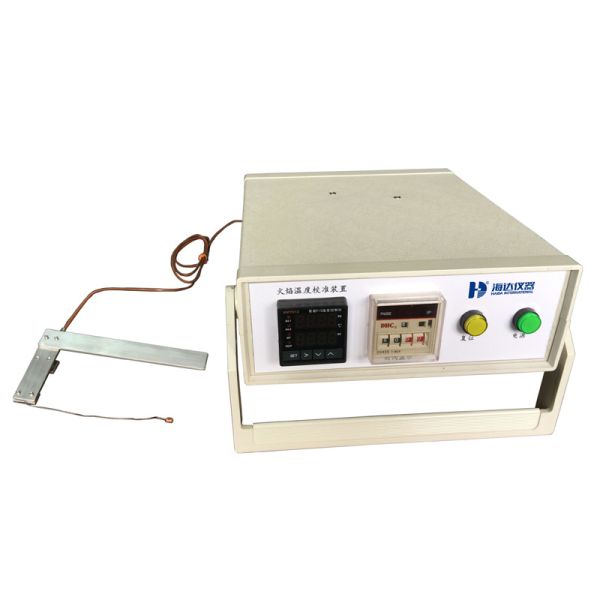

Flame Temperature Calibration Device 500W Essential Tool for Fire Hazard Testing of Electric and Electronic Products
Flame Temperature Calibration Device 500W Essential Tool for Fire Hazard Testing of Electric and Electronic Products
Specifications
Brand Name :
HAIDA
Model Number :
6015-HD
Certification :
ISO,CE,
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Timer :
Adjustable range: 0.01–99.99 seconds
Diameter :
Ø9.00±0.01mm
Length :
19.14±0.02mm
Bevel Angle :
45±0.5°
Mass (Pre-drilling) :
10.00g±0.05g
Material :
High-conductivity electrolytic copper
Surface Finish :
Fully polished
Thermocouple :
Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath
Description

Flame Temperature Calibration Device 500W

Description:

This calibration device is designed in accordance with ASTM D5207-03 and related IEC, UL, GB standards for measuring flame temperatures in combustion test equipment.

Calibration Procedure:

Position the copper block 55±1mm above the needle flame burner.
Ignite the flame; the time for the copper block temperature to rise from 100°C±2°C to 700°C±3°C must be 54±2 seconds to validate the flame for testing.

Perform three measurements, allowing the copper block to cool naturally to <50°C between tests.

Reference Standard:

ASTM D5207-03: Standard Practice for Confirmation of 20-mm (50-W) and 125-mm (500-W) Test Flames for Small-Scale Burning Tests on Plastic Materials.


GB/T 5169.15: Fire Hazard Testing for Electric and Electronic Products — Part 15: Test Flames — 500W Flame Apparatus and Confirmational Test Methods.

IEC 60695-11-3: Fire hazard testing for electric and electronic products — Part 11-3: Test flames — 500W flames — Apparatus and confirmational test methods.

Flame Temperature Calibration Device 500W Essential Tool for Fire Hazard Testing of Electric and Electronic Products

Technical Parameters:

Model 6015-HD
Thermocouple Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath
Timer Adjustable range: 0.01–99.99 seconds
Copper Block Specifications
Diameter Ø9.00±0.01mm
Length 19.14±0.02mm
Bevel Angle 45±0.5°
Mass (Pre-drilling) 10.00g±0.05g
Material High-conductivity electrolytic copper
Surface Finish Fully polished

ABOUT HAIDA

Flame Temperature Calibration Device 500W Essential Tool for Fire Hazard Testing of Electric and Electronic Products

Flame Temperature Calibration Device 500W Essential Tool for Fire Hazard Testing of Electric and Electronic Products

Flame Temperature Calibration Device 500W Essential Tool for Fire Hazard Testing of Electric and Electronic Products

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
