45 Degrees Flame Retardant Performance Testing Equipment For Textile With SUS 304 Stainless Steel
45 Degrees Flame Retardant Performance Testing Equipment For Textile With SUS 304 Stainless Steel
Specifications
Brand Name :
HAIDA
Model Number :
6003-HD
Certification :
ISO,CE,
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Power Supply :
AC 220V, 50Hz
control system :
Color LCD touch screen + PLC (Programmable controller)
presentation system :
Color LCD touch screen, can set and display ignition time, spread time
marker line :
White cotton mercerized sewing thread
timer :
0 ~ 999.9 seconds can be set, timing resolution: 0.1S
Flowmeter range :
0 ~ 60mL/min
counter weight :
The mass is 30g±5g
Description

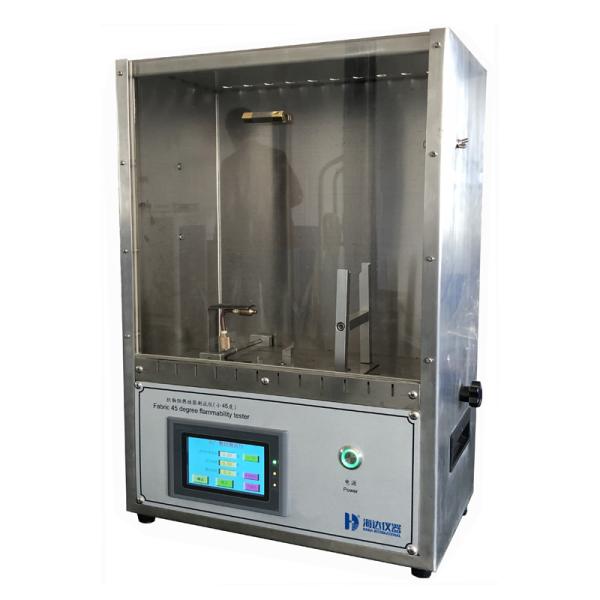

Textile 45 degrees flame retardant performance tester

Description:

The testing machine is a whole box-type design, mainly composed of control system and combustion chamber, the sample is installed in the combustion chamber at a 45 degree Angle of the sample frame, so that the nozzle close to the sample, with the flame to ignite the sample to reach the specified time and return, observe the burning condition of the sample and the flame spread speed on the sample, evaluate the sample ignitability and flame spread performance.

This testing machine is suitable for measuring the flame retardant performance of clothing fabric, decorative fabric, tent fabric, etc

Standard:

GB / T14644-2014,ASTM D1230,CRF16-1610,CA/TB117

45 Degrees Flame Retardant Performance Testing Equipment For Textile With SUS 304 Stainless Steel

Product Feature:

The test machine is made of SUS#304 brushed stainless steel, heat and smoke corrosion resistance, and easy to clean, the box size is (LxWxH) : 370x220x350mm±10mm, the front of the combustion box is a transparent observation door, convenient for the tester to operate and control, the top of the box behind the 11 evenly arranged diameter of 12.7mm ventilation holes.

Technical Parameters:

control system Color LCD touch screen + PLC (Programmable controller)
presentation system Color LCD touch screen, can set and display ignition time, spread time
combustor Professional burner, made of brass, beautiful and durable, igniter top distance from the sample surface 8mm, flame height: 16mm
marker line

White cotton mercerized sewing thread
timer

0 ~ 999.9 seconds can be set, timing resolution: 0.1S
Flowmeter range 0 ~ 60mL/min
counter weight The mass is 30g±5g
combustion gas

Butane gas (factory-configured butane with purity greater than 98%)
specimen holder
The sample clip can be supported and fixed so that it is tilted at a 45 degree Angle, and its relative position with the flame front can be adjusted according to the different thickness of the sample
  • Sample holder can be mounted
 It is composed of two U-shaped steel plates with a thickness of 2.0mm, and its inner frame size is 152x38mm. The sample is fixed in the middle of the two plates and is clamped on both sides
power supply AC 220V / 50Hz
