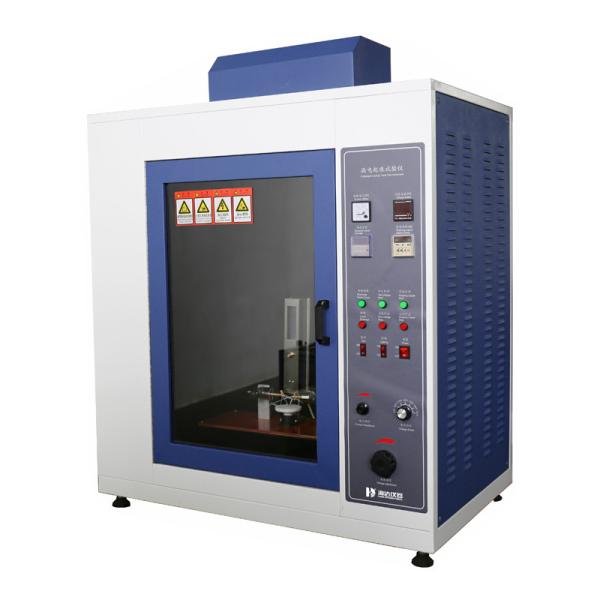

Flammability Testing Equipment For Insulating Materials And Products With Comparative Tracking Index Tester
Flammability Testing Equipment For Insulating Materials And Products With Comparative Tracking Index Tester
Specifications
Brand Name :
HAIDA
Model Number :
6006-HD
Certification :
ISO,CE,
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Power Supply :
AC 220V, 50Hz
Chamber Volume :
≥0.5 m³, with a glass observation door
Electrode Force :
Rectangular platinum electrodes, each applying 1.0N ±0.05N to the sample
Test Duration :
Adjustable range: 0.01–99.99 seconds/minutes/hours
Test Cycles :
Pre-settable: 1–999,900 cycles
Description

Comparative Tracking Index Tester

Description:

Under humid or contaminated conditions, leakage currents may occur between live parts of opposite polarity or between live parts and grounded metal components, leading to arcing, material erosion, short circuits, or even ignition.

This tester simulates such scenarios to conduct destructive testing on insulating materials, evaluating their relative resistance to tracking under specified voltages in the presence of electric fields and contaminated water. It is suitable for solid insulating materials and products in electrical/electronic equipment and household appliances, such as relay sockets, switch covers, and contactor housings.

Standard:

IEC 60112:2020, GB/T 4207-2022, IEC 60335-1, GB 4706.1, IEC 60884-1, GB/T 2099.1, IEC 60950, GB 4943.1-2022

Flammability Testing Equipment For Insulating Materials And Products With Comparative Tracking Index Tester

Product Feature:

Technical Parameters:

Model 6006-HD
Chamber Volume ≥0.5 m³, with a glass observation door
Electrical Load Adjustable test voltage: 100–600V. Short-circuit current: 1A ±0.1A with ≤10% voltage drop. Overcurrent relay trips at 0.5A ±10% (2s tolerance ±10%), triggering an audible alarm for failed samples (reset via voltage stop).
Electrode Force Rectangular platinum electrodes, each applying 1.0N ±0.05N to the sample.
Test Duration Adjustable range: 0.01–99.99 seconds/minutes/hours.
Test Cycles Pre-settable: 1–999,900 cycles
Droplet System Droplet height adjustable: 30–40mm. Mass of 50 droplets: 0.997–1.147g; 20 droplets: 0.380–0.480g. Droplet interval: 30±5 seconds (configurable).
Key Features Stainless steel/brass construction with platinum-plated electrodes (high-temperature/corrosion-resistant). Precise droplet counting, stable control system, integrated ventilation, and lighting for clear observation and fume extraction.
Power Supply AC 220V, 50Hz.

ABOUT HAIDA

Flammability Testing Equipment For Insulating Materials And Products With Comparative Tracking Index Tester

Flammability Testing Equipment For Insulating Materials And Products With Comparative Tracking Index Tester

Flammability Testing Equipment For Insulating Materials And Products With Comparative Tracking Index Tester

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
