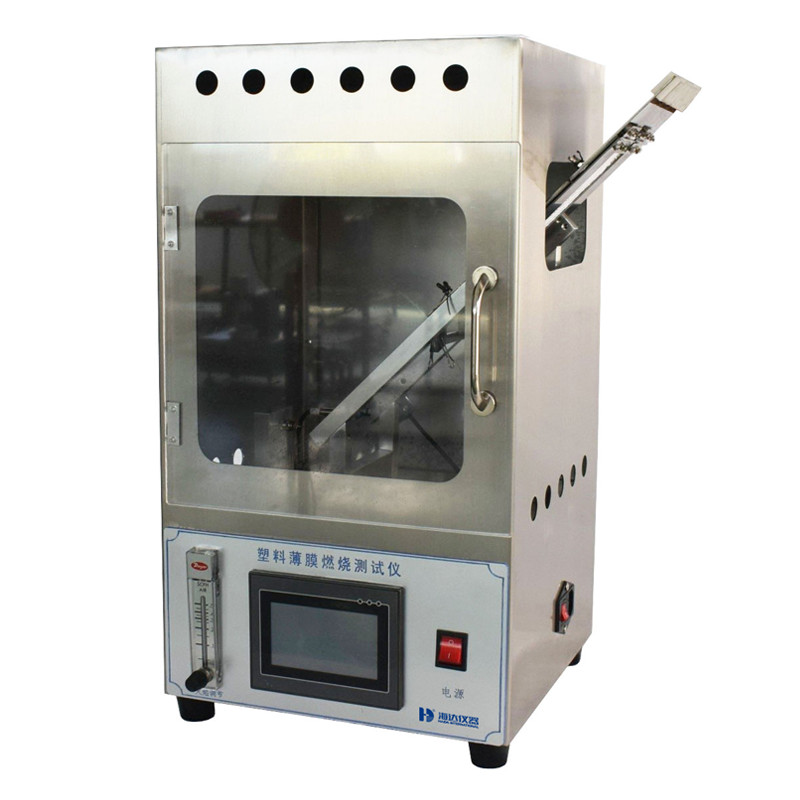

45 Deg Flammability Testing Equipment For Non-Rigid Polyethylene Films With Stainless Steel Sample Clamp
45 Deg Flammability Testing Equipment For Non-Rigid Polyethylene Films With Stainless Steel Sample Clamp
Specifications
Brand Name :
HAIDA
Model Number :
6024-HD
Certification :
ISO,CE,
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Power Supply :
AC 220V, 50Hz
Burner :
No. 22 needle flame (adjustable length)
Ignition Time :
0–99.99 seconds (resolution: 0.01s)
Chamber :
Stainless steel with transparent observation window
Sample Holder :
Adjustable 45° angle; accommodates varying thicknesses
Sample Clamp :
Stainless steel, secures specimens between plates with side clips
Description

Plastic Film 45° Flammability Tester

Description:

Plastic Film 45° Flammability Tester is manufactured in accordance with the U.S. Flammable Fabrics Act (FFA) and mandatory testing requirements of the CPSC.
It evaluates the flame resistance of non-rigid, unsupported polyethylene films (transparent, translucent, or opaque).

Compliance Standards:

U.S. Consumer Product Safety Commission (CPSC) 16 CFR Part 1611

45 Deg Flammability Testing Equipment For Non-Rigid Polyethylene Films With Stainless Steel Sample Clamp

Technical Parameters:

Model 6024-HD
Burner No. 22 needle flame (adjustable length)
Ignition Time 0–99.99 seconds (resolution: 0.01s)
Burning Time 0–99.99 seconds (resolution: 0.01s)
Chamber Stainless steel with transparent observation window
Sample Holder Adjustable 45° angle; accommodates varying thicknesses
Sample Clamp Stainless steel, secures specimens between plates with side clips
Power Supply AC 220V, 50Hz
