Flammability Testing Equipment Vertical Flame Tester For Textiles For After-Flame Flame Resistance And Char Length Tendencies
Flammability Testing Equipment Vertical Flame Tester For Textiles For After-Flame Flame Resistance And Char Length Tendencies
Specifications
Brand Name :
HAIDA
Model Number :
6027-HD
Certification :
ISO,CE,
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Power Supply :
AC 220V, 50Hz
Control System :
7-inch color LCD touchscreen + PLC (Programmable Logic Controller)
Chamber Dimensions (L×W×H) :
329×329×767mm
Burner Angle :
90° (vertical)
Burner Dimensions 1 :
ASTM D6413: 442×76mm
Burner Dimensions 2 :
CPAI-84: 420×80mm
Description

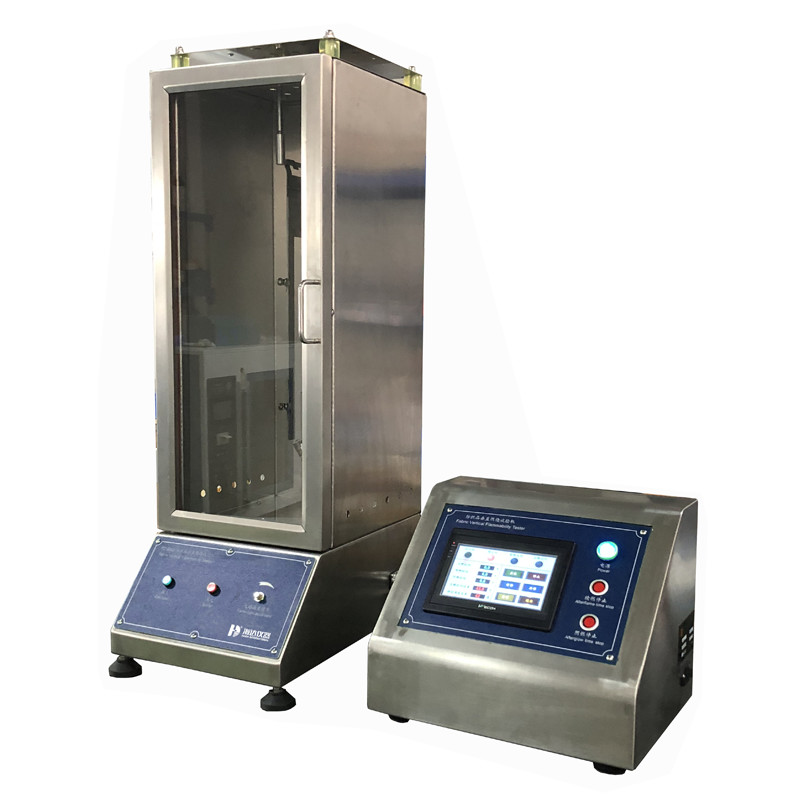

Vertical Flame Tester for Textiles

Description:

Vertical Flame Tester for Textiles is designed and manufactured in accordance with CPAI-84 and ASTM D6413 standards, and is used to determine the after-flame, flame resistance, and char length tendencies of textiles.

Compliance Standards:

CPAI-84, ASTM D6413

Flammability Testing Equipment Vertical Flame Tester For Textiles For After-Flame Flame Resistance And Char Length Tendencies

Technical Parameters:

Model 6027-HD
Control System 7-inch color LCD touchscreen + PLC (Programmable Logic Controller)
Display System Real-time monitoring of:
• Ignition time
• Afterflame time
• Flame resistance time
Chamber Dimensions (L×W×H) 329×329×767mm
Ventilation • Top: 16×Ø12.5mm holes
• Sides: 6×Ø12.5mm holes per side
Timing Functions Adjustable (0–999.9 seconds) for:
• Ignition
• Afterflame
• Flame resistance
Burner Angle 90° (vertical)
Burner Dimensions • ASTM D6413: 442×76mm
• CPAI-84: 420×80mm
Chamber Material SUS 304 stainless steel
Key Components Includes: • Control/combustion chambers
• Burner assembly
• Solenoid valve
• High-voltage igniter
• Gas pressure regulator
• Lighting system
Power Supply AC 220V, 50Hz

ABOUT HAIDA

Flammability Testing Equipment Vertical Flame Tester For Textiles For After-Flame Flame Resistance And Char Length Tendencies

Flammability Testing Equipment Vertical Flame Tester For Textiles For After-Flame Flame Resistance And Char Length Tendencies

Flammability Testing Equipment Vertical Flame Tester For Textiles For After-Flame Flame Resistance And Char Length Tendencies

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
