Top quality Magnetic tank level gauge / automatic diesel tank volume sensor liquid float type level meter smart probes

SYW-A Magnetostrictive sensor Probe

1,The probe consist of:

Fully enclosed magnetostrictive probe.

Electronic Pod using for data measuring and transforming.

Floater made according to the product.

2,Features:

Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC

Accuracy: level accuracy is ±0.3mm

Stability: strong anti-jamming ability

Efficiency: less than 1 second to test one tank.

3,Probe Performance

Gas station level gauge

1.Gas station level gauge consist of SYW-A magnetostrictive probe and touch control console (TCM-1,TCC-2,TCC-3).

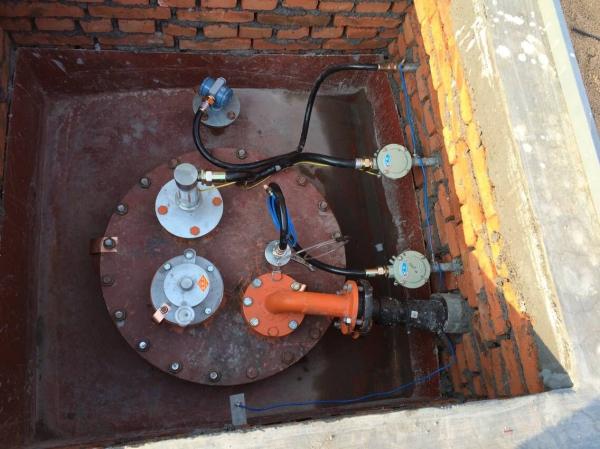

2.SYW-A magnetostrictive probe installed in the tank,take the magnetostrictive technology,can accurately measure the inner tank oil level ,water level and multiple temperature;

3.Touch control console installed in the control room, it can automatically probe data acquisition and processing, real-time display can tank storage information, realize the tank leak detection, automatic unloading, record query, control multi-channel submersible pump,oil level alarm, data upload, and other functions.

1,It can monitor up to 12 tanks and monitor the delivery conditions, it also enjoys a static leak test function.

2,It can display product level, water level, temperature, volume, ullage.

3,It enjoys a tank tilt compensation function.

4,It can display dynamically the change of product level and water level with graphics in proportion, it features a 7 inch colored touch-screen console panel, and each interface displays 4 graphics.

5,It features an audible and visual alarm function with front panel.

6,It comes with two RS-232 serial interface communication ports to connect with different brand Center Console.

7,It enjoys a record function, all information are stored in memory for future queries

8,There is an embedded printer in it to print inventory reports, delivery reports, leak reports and shift reports.

9,It can calculate volume of product by multipoint, which can fully ensure the accuracy of volume of the product.

10,After connected with Center Console though internet, it can provide information in long-distance for manager to arrange the inventory.

11,It can monitor the oil pump according to the product level, which can avoid the product spilled and pumpdown..

12,It can connect with flow-meter to display delivery information constantly.
