automatic tank gauge for petrol station ,underground tank gauge,volume measuring sensor
automatic tank gauge for petrol station ,underground tank gauge,volume measuring sensor
Specifications
Brand Name :
GUIHE
Model Number :
SYW-A
Certification :
ISO9001
Place of Origin :
QINGDAO CHINA
MOQ :
1 PIECE
Price :
99-499USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000PIECE/MONTH
Packaging Details :
WOODEN CASE
Power Supply Voltage :
AC120~265V 50HZ
Explosion-proof grade :
ExiaIIBT4 (Intrinsically safe)
Pressure range :
-0.02Mpa~0.6Mpa
Temperature :
-40℃~70℃
Product name :
gasoline control
Sensor type :
Magnetostrictive Sensor
Usage :
underground oil tank
Accuracy :
0.3mm
Description

automatic tank gauge for petrol station ,underground tank gauge,volume measuring sensor

automatic tank gauge for petrol station ,underground tank gauge,volume measuring sensorautomatic tank gauge for petrol station ,underground tank gauge,volume measuring sensorautomatic tank gauge for petrol station ,underground tank gauge,volume measuring sensor

automatic tank gauge for petrol station ,underground tank gauge,volume measuring sensorautomatic tank gauge for petrol station ,underground tank gauge,volume measuring sensor

Detai:

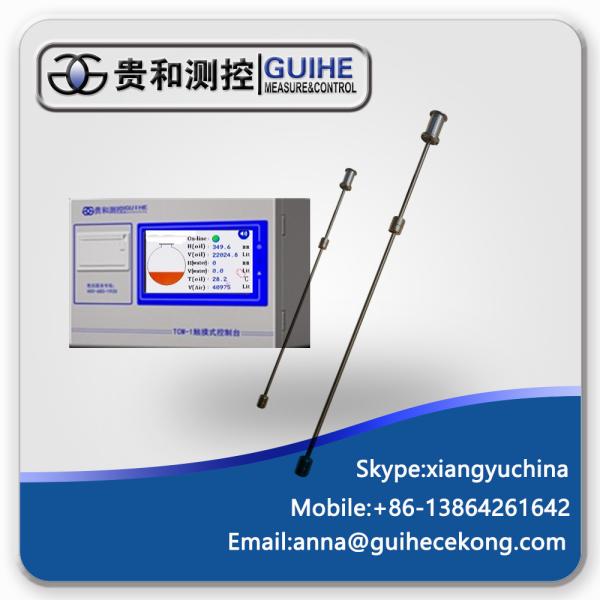

SYW-A Magnetostrictive Probe

1,The probe consist of:

Fully enclosed magnetostrictive probe.

Electronic Pod using for data measuring and transforming.

Floater made according to the product.

2,Features:

Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC

Accuracy: level accuracy is ±0.3mm

Stability: strong anti-jamming ability

Efficiency: less than 1 second to test one tank.

3,Probe Performance

Item SYW-A
Purpose To measure product level, water level and temperature
Titles of medium Gasoline, diesel, kerosene, ethanol , water etc.
State of medium Liquid
Explosion-proof grade ExiaIIBT4 (Intrinsically safe)
Pressure range -0.02Mpa~0.6Mpa
Certificate PCEC Conformity Certificate of Explosion-proof / Permit of Manufacture Measuring Instruments
Temperature -40℃~70℃
Product Level Accuracy ±0.3mm
Water Level Accuracy ±0.3mm
Temperature Accuracy ±0.2℃
Height Resolution 0.023mm
Repeatability ±0.1mm
Environmental Temperature Effect Error<0.2mm
Vibration Effect Error<0.5mm
Lowest Product Inactive Zone 2.5'' floater-180mm
Lowest Water Inactive Zone 2.5'' floater-25mm
Measured Variable Product level, interface level and temperature of 5 sensors and average temperature
Probe Length 600~3500mm
Method of Communication RS-485
Probe Material 1Cr18Ni9Ti
Power Supply +24~26VDC
Protection Class of Probe Canister IP67
Max Communication Distance 1200m

Two : TCM-1 & tcc-3 TOUCH CONTROL CONSOLE

1,It can monitor up to 12 tanks and monitor the delivery conditions, it also enjoys a static leak test function.

2,It can display product level, water level, temperature, volume, ullage.

3,It enjoys a tank tilt compensation function.

4,It can display dynamically the change of product level and water level with graphics in proportion, it features a 7 inch colored touch-screen console panel, and each interface displays 4 graphics.

5,It features an audible and visual alarm function with front panel.

6,It comes with two RS-232 serial interface communication ports to connect with different brand Center Console.

7,It enjoys a record function, all information are stored in memory for future queries

8,There is an embedded printer in it to print inventory reports, delivery reports, leak reports and shift reports.

9,It can calculate volume of product by multipoint, which can fully ensure the accuracy of volume of the product.

10,After connected with Center Console though internet, it can provide information in long-distance for manager to arrange the inventory.

11,It can monitor the oil pump according to the product level, which can avoid the product spilled and pumpdown..

12,It can connect with flow-meter to display delivery information constantly.

INSTALLATION PICTURES :

automatic tank gauge for petrol station ,underground tank gauge,volume measuring sensor

automatic tank gauge for petrol station ,underground tank gauge,volume measuring sensor

automatic tank gauge for petrol station ,underground tank gauge,volume measuring sensor

automatic tank gauge for petrol station ,underground tank gauge,volume measuring sensorautomatic tank gauge for petrol station ,underground tank gauge,volume measuring sensorautomatic tank gauge for petrol station ,underground tank gauge,volume measuring sensor

automatic tank gauge for petrol station ,underground tank gauge,volume measuring sensor
