Anti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level system
Anti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level system
Specifications
Brand Name :
GUIHE
Model Number :
SYW
Certification :
ISO CE
Place of Origin :
QINGDAO ,CHINA
MOQ :
1 PIECE
Price :
100-600 USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PIECE/MONTH
Delivery Time :
3-7 DAYS
Packaging Details :
WOODEN CASE
Product name :
automatic fuel oil tank level meter
Application :
diesel fuel tank level sensor
Type :
magnetostrictive level sensor
Accuracy :
0.3
Output signal :
4~20mA
Measuring range :
600-3500mm
volume measure :
oil tank level measurement volume measuring sensor
magnetostrictive sensor :
fuel controller
Description

Overfill Protection and Tank Level Gauge System for petrol filling station, overflow prevention valves for tank, atg

Tank level gauge ATG Oil and gas recovery pump/system for gas station, fuel pump , petrol station management system

Anti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level system

Fuel tank level gauge consist of Magnetostrictive probe (mode:SYW-A, SYW-A1)and Touch screen control console (mode:TCM-1,TCC-3).

SYW-A magnetostrictive probe installed in the tank, with magnetostrictive technology,can accurately measure the fuel level ,water level,ullage and multiple temperature.

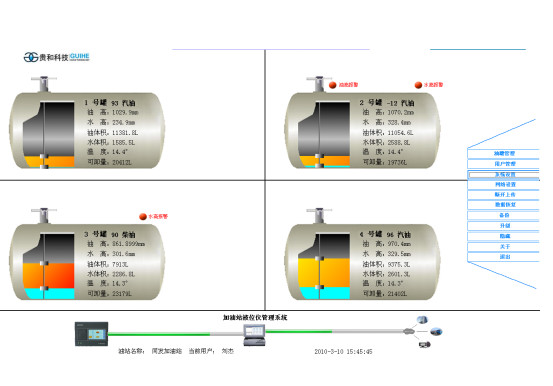

Touch control console installed in the petrol station control room, it can automatically probe data acquisition and processing, real-time display tank storage information, realize the tank leak detection, automatic unloading, record query, control multi-channel submersible pump,oil level alarm, data upload, and other functions.

Product Introduction
Anti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level system

SYW-A Probe +TCM-1 Touch Control Console + Central Control System + Internet

●Industrial design, long service life, fast in running.
●Excellent compatibility with different brand Central Control System.
●Integrated design for the safety barrier and control console in order to easy installation and lower the cost.
●Information are stored in memory for future inquiry.
●It enjoys a tank tilt compensation function
●It can connect with explosion-proof ringer outdoors avoiding the product spilled
●With an embedded printer it can print inventory reports, delivery reports, leak reports and shift reports
●It can monitor up to 12 tanks and display dynamically the product level and water level with colored graphics in proportion.
●After connected with Central Control System though internet, it can provide information for manager to manage the inventory, delivery and the sale of the product.

Product Parameters
No.
Item
Specification
1
Usage
To measure product level, water level and temperature
2
Measuring Medium
Gasoline, diesel, kerosene, ethanol , water etc.
3
Explosion-proof
ExiaIIBT4 (Intrinsically safe)
4
Temperature
-40℃~70℃
5
Fuel Level Accuracy
±0.3mm
6
Temperature Accuracy
±0.2℃
7
Height Resolution
0.023mm
8
Lowest Product Inactive Zone
2.5'' floater-180mm
9
Lowest Water Inactive
2.5'' floater-25mm
10
Measured Variable
Product level, interface level and temperature of 5 sensors and average temperature
11
Measuring Range
600~4000mm
12
Communication
RS-485
13
Power Supply
+24~26VDC
14
Protection Class of Probe Canister
IP67
15
Probe Material
1Cr18Ni9Ti
16
Max Communication Distance
1200m
Product Details Show
Anti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level system
Anti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level system
Anti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level system
Anti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level system
Anti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level system
Anti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level system
Anti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level systemAnti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level system
Anti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level systemAnti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level system
Anti explosion proof Automatic Tank level gauge, Digital Underground diesel fuel tank gauging system, atg level system
