Name: SYWA RS485 diesel fuel tank level gaugetank calibration magnetostrictive level transmitter
Brand: GUIHE
Price: 100 USD

MachineU > China Products > Electrical Equipment & Supplies > Generators > Generator Parts & Accessories

SYW-A RS485 diesel fuel tank level gauge,tank calibration magnetostrictive level transmitter

Specifications

Brand Name :

GUIHE

Model Number :

SYW

Certification :

ISO CE

Place of Origin :

QINGDAO ,CHINA

MOQ :

1 PIECE

Price :

100-600 USD

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :

1000PIECE/MONTH

Delivery Time :

3-7 DAYS

Packaging Details :

WOODEN CASE

Product name :

automatic fuel oil tank level meter

Application :

diesel fuel tank level sensor

Type :

magnetostrictive level sensor

Accuracy :

0.3

Output signal :

4~20mA

Measuring range :

600-3500mm

volume measure :

oil tank level measurement volume measuring sensor

magnetostrictive sensor :

fuel controller

Description

Product Introduction

SYW-A Probe +TCM-1 Touch Control Console + Central Control System + Internet

●Industrial design, long service life, fast in running.
●Excellent compatibility with different brand Central Control System.
●Integrated design for the safety barrier and control console in order to easy installation and lower the cost.
●Information are stored in memory for future inquiry.
●It enjoys a tank tilt compensation function
●It can connect with explosion-proof ringer outdoors avoiding the product spilled
●With an embedded printer it can print inventory reports, delivery reports, leak reports and shift reports
●It can monitor up to 12 tanks and display dynamically the product level and water level with colored graphics in proportion.
●After connected with Central Control System though internet, it can provide information for manager to manage the inventory, delivery and the sale of the product.

Product Parameters

Gas station level gauge

1.Gas station level gauge consist of SYW-A /SYW-A1 magnetostrictive probe and touch control console (TCM-1,TCC-2,TCC-3).

2.SYW-A /SYW-A1magnetostrictive probe installed in the tank,take the magnetostrictive technology,can accurately measure the inner tank oil level ,water level and multiple temperature;

3.Touch control console installed in the control room, it can automatically probe data acquisition and processing, real-time display can tank storage information, realize the tank leak detection, automatic unloading, record query, control multi-channel submersible pump,oil level alarm, data upload, and other functions.

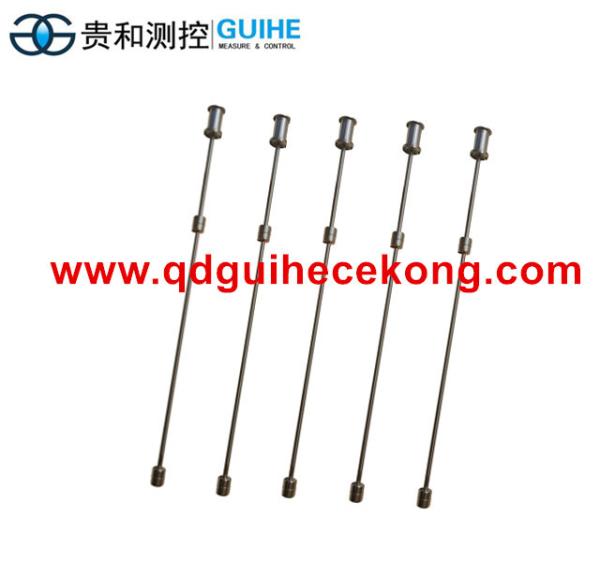

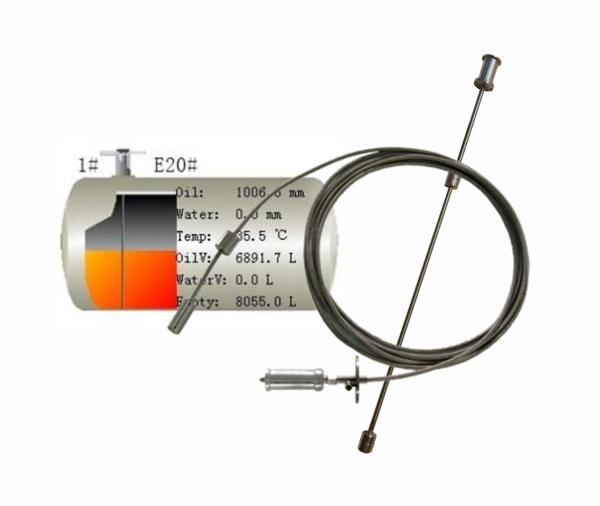

SYW-A Magnetostrictive sensor Probe

1,The probe consist of:

Fully enclosed magnetostrictive probe.

Electronic Pod using for data measuring and transforming.

Floater made according to the product.

2,Features:

Safety: ExiaIIBT4 (Intrinsically safe) issued by PCEC

Accuracy: level accuracy is ±0.5mm

Stability: strong anti-jamming ability

Efficiency: less than 1 second to test one tank.

3,Probe Performance

Item	SYW-A
Purpose	To measure product level, water level and temperature
Titles of medium	Gasoline, diesel, kerosene, ethanol , water etc.
State of medium	Liquid
Explosion-proof grade	ExiaIIBT4 (Intrinsically safe)
Pressure range	-0.02Mpa~0.6Mpa
Certificate	PCEC Conformity Certificate of Explosion-proof / Permit of Manufacture Measuring Instruments
Temperature	-40℃~70℃
Product Level Accuracy	±0.5mm
Water Level Accuracy	±0.5mm
Temperature Accuracy	±0.2℃
Height Resolution	0.023mm
Repeatability	±0.1mm
Environmental Temperature Effect	Error<0.2mm
Vibration Effect	Error<0.5mm
Lowest Product Inactive Zone	2.5'' floater-180mm
Lowest Water Inactive Zone	2.5'' floater-25mm
Measured Variable	Product level, interface level and temperature of 5 sensors and average temperature
Probe Length	600~3500mm
Method of Communication	RS-485
Probe Material	1Cr18Ni9Ti
Power Supply	+24~26VDC
Protection Class of Probe Canister	IP67
Max Communication Distance	1200m

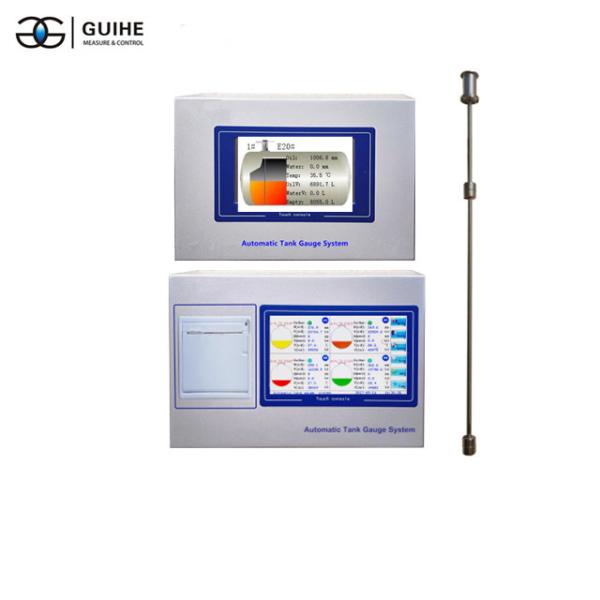

TCM-1 Touch Control Console

Specification

Items	Performance index
L×W×H	400mm×300mm×200mm
Supply Voltage	AC 120V~265V 50Hz
Ambient Temperature	-10℃~+60℃
Ambient Humidity	20%~85%
Screen Dimension	7 Inch
Display Mode	English,graphic,LCD
