D12-D40 Portable Bar Peeling Rebar Thread Rolling Machine Bridge Tunnel Building
D12-D40 Portable Bar Peeling Rebar Thread Rolling Machine Bridge Tunnel Building
D12-D40 Portable Bar Peeling Rebar Thread Rolling Machine Bridge Tunnel Building
D12-D40 Portable Bar Peeling Rebar Thread Rolling Machine Bridge Tunnel Building
D12-D40 Portable Bar Peeling Rebar Thread Rolling Machine Bridge Tunnel Building
D12-D40 Portable Bar Peeling Rebar Thread Rolling Machine Bridge Tunnel Building
D12-D40 Portable Bar Peeling Rebar Thread Rolling Machine Bridge Tunnel Building
D12-D40 Portable Bar Peeling Rebar Thread Rolling Machine Bridge Tunnel Building
Specifications
Brand Name :
Qifu
Model Number :
HGS40, HGS40DZ, HGS40KZS, HGS40DZS, HGS50
Certification :
ISO
Place of Origin :
Chongqing, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10,000 units per month
Delivery Time :
30 days
Packaging Details :
Wooden Box
Rebar thread diameter: :
16-40mm
Motor power: :
4kw
Voltage: :
3-380V 50Hz
Thread rolling speed: :
40-62 rpm
Maximum thread length: :
90mm
Type :
HGS-40, HGS-40DZ, HGS-40KZS, HGS-40DZS, HGS-50
Work efficiency: :
30-40mm/min
Weight: :
450 kg
Name :
D12-D40 Portable Bar Peeling Thread Rolling Rebar Machine Bridge Tunnel Building
Keywords :
Rolling Rebar Machine Bridge Tunnel
Description

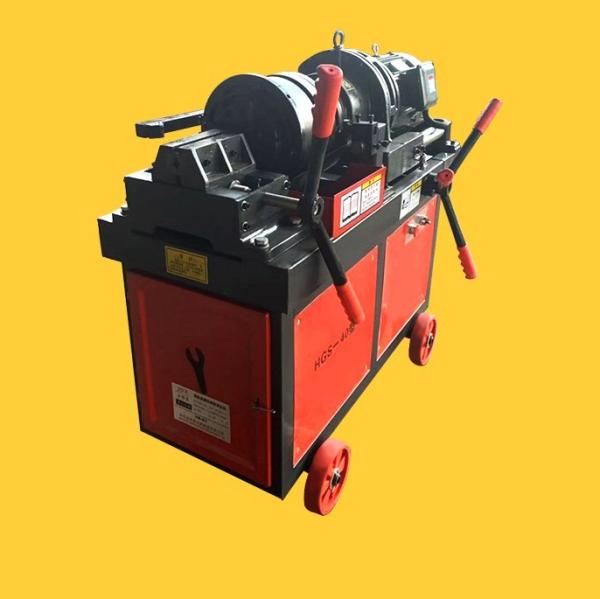

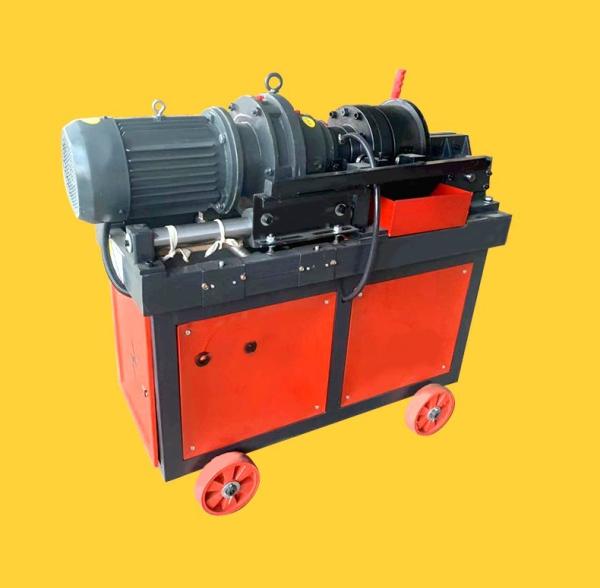

D12-D40 Portable Bar Peeling Thread Rolling Rebar Machine Bridge Tunnel Building

Steel bar thread rolling machine is mainly used for rolling straight threaded head of ribbed steel bar in construction engineering. It is the key equipment for realizing straight threaded connection of reinforced steel bar.
The steel bar rolling thread connection technology is suitable for industrial and civil buildings. Its process is simple and fast, no open flame operation, no pollution to the environment, no explosion fire hazards, safe and reliable, and can be constructed around the clock, saving a lot of steel and energy.
Only a spanner is used to connect the steel bars, and each steel bar joint is about one minute, which shortens the construction period and realizes industrialized and civilized construction.

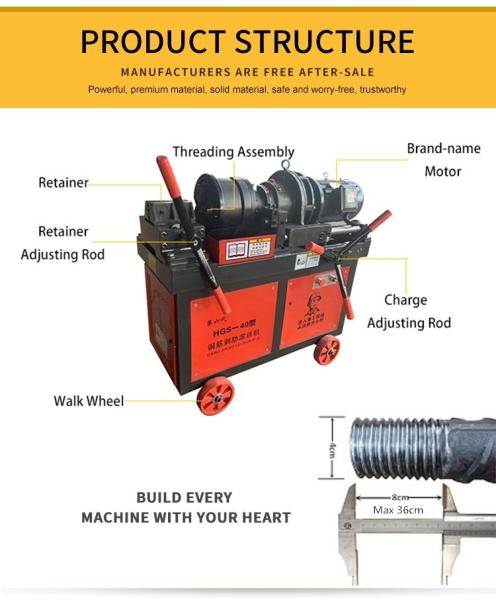

HGS Series Rebar Thread Rolling Machine:
Product Advantage:
1.The precision of rolling and threading is very high after the steel bar is removed, and the consistency of the diameter is very good.
2.It has compact structure and simple operation, and the threading speed is faster than other devices.
3.We refer to its stripping device as "idiomatic", which is easy to understand, and the stability of rib size is very good.
4.As long as the steel bar can be used to complete the thread processing, the processing efficiency of the silk head is also very high;
5.It has strong automaticity, which can automatically raise the knife and return automatically, and the noise generated by the equipment is small;
6.The joint quality is stable and reliable, and the joint strength is higher than the normal parent material;

After-sales Service: Online Technical Support, Onsite Installation, Ons
Warranty: 1-year
Suitable for: Aluminum, Alloy, Stainless Steel
Custom: Customized Graphic, Logo and Packing Are Available
Transport Package: Customized

Rebar thread diameter: 16-40mm
Motor power: 4kw
Voltage: 3-380V 50Hz
Thread rolling speed: 40-62 rpm
Maximum thread length: 80mm
Thread angle: 60°, 75°
Work efficiency: 30-40mm/min
Weight: 450 kg

PRODUCT ADVANTAGES
According to your local market needs and budget, we can design the right machine for you.

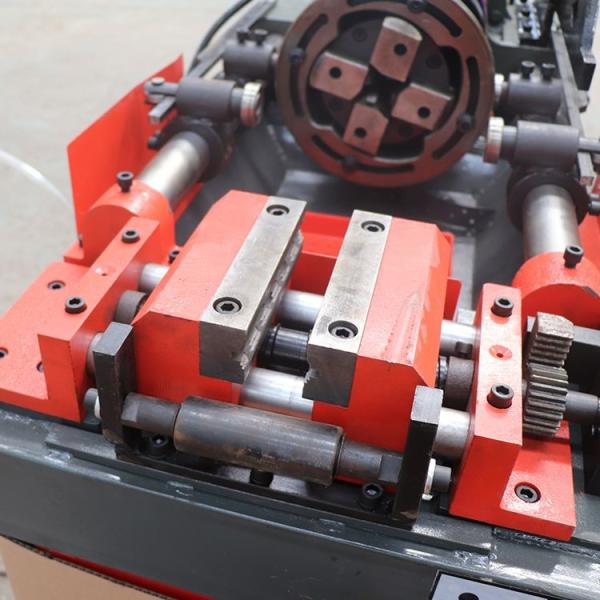

1.High-strength Jaw
High-strength jaw, with high abrasion resistance and toughness, high occlusion, fixed and non-displacement of the workpiece, and long service life.

2.Stripping&Rolling Assembly
Rib stripping and rolling integration, automatic opening and closing, convenient and fast, sharp and wear-resistant, efficient rolling.

3.High-quality Motor
All copper national standard motor, the movement uses high-quality copper coil, the coil is high temperature resistant, and the motor has a long service life.

4.We can provide custom rebar bending machines according to customer requirements such as work capacity, weight, shape, color, voltage, etc.
Currently, we has advanced production technology and advanced product testing equipment, scientific and sound corporate management, and strictly operates in accordance with the ISO/TS9001:2008 international quality standard management system, strict quality clearance, and provides customers with qualified products.

Basic Info.

Model NO.
Rebar Thread Rolling Machines
Warranty
Within 1 Year
Model Number
HGS40, HGS50
Speed
62rpm /40-62rpm
Material
Metal
Transport Package
Wooden Case or Iron Frame, 1 Set /Package
Specification
ISO9001
Trademark
rebar thread rolling Machine
Origin
Chongqing China
HS Code
8459700000

D12-D40 Portable Bar Peeling Rebar Thread Rolling Machine Bridge Tunnel BuildingD12-D40 Portable Bar Peeling Rebar Thread Rolling Machine Bridge Tunnel Building

Our Services

Before sales: Engineering Consultance Service & Technical Support

After sales : Process clients' feedback and or problems during the operation of the

equipments/machines within 24 hours.

OEM service: We accept OEM orders and 70 percent of our clients are enjoying OEM services.
