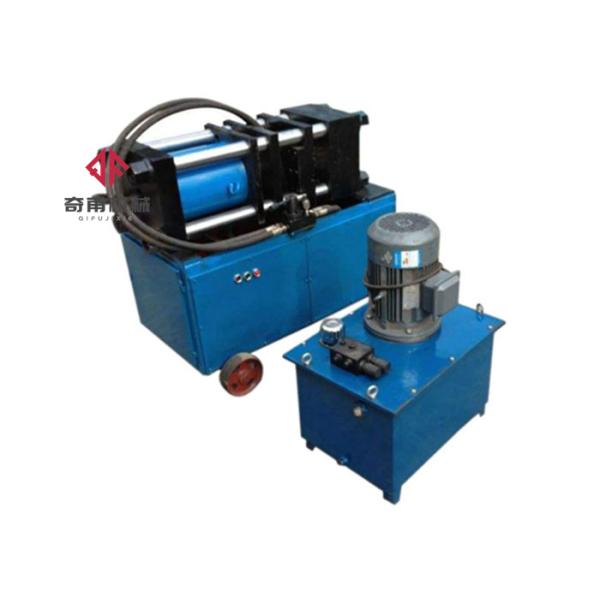

Automatic steel bar upsetting machine cold forging steel bar processing machine

Description:

The steel bar upsetting machine realizes the reinforcement of steel bar and thread processing. It solves the problem of pretreatment before steel bar processing and the number of times the same equipment enters the factory, thereby reducing the process of on-site processing and multiple steel bar handling, and the construction is more convenient, faster, and simple to operate. Improve work efficiency and shorten the construction period. The straight thread rolling mill adopts a kind of roll head, which can realize the roll processing of various specifications of steel, and solve the internal coolant of each type of rolling straight thread rolling machine required for the same equipment for steel straight thread processing. The process chip removes the problem and can realize automatic feeding until the entire rolling process is completed and automatically stops, and then automatically reverses. You can achieve automatic retreat. Automatic process of automatic shutdown and automatic reset

Applicable:

The upsetting machine uses the principle of cold forging to plastically deform the end of the steel bar, increasing the diameter by 4-6mm, and then processing the thread. The actual cross-sectional area after threading is larger than the cross-sectional area of ​​the original steel bar, which greatly increases the tensile strength of the joint. The threaded joints of reinforced concrete are completely broken in the base material through the tensile test, which is suitable for construction, roads, bridges, power stations, etc.

Features:

1. High production efficiency, 300-500 heads per level can be upset:
2. Equipment failure rate is small, non-fragile parts, low construction cost.
3. Environmental protection, safety, not affected by the environment and climate change.
4. Enlarge the cross-sectional area of the steel end by 15-20%, so that the bottom diameter of the processed thread is not less than the diameter of the base metal, and the tensile strength is fully exerted.
5. Simple operation, hydraulic electric control, no need for professional technical personnel training, 10 minutes start-up operation;

use
Professional steel cold heading machine. It is mainly used for the construction of steel bar rolling straight thread, and it is the key equipment to realize the connection of steel bar. It can process ribbed steel with a diameter of 16-32mm.

Features
The professional steel cold heading machine can complete the process from rib stripping to thread rolling at one time. The threaded full-tooth profile is processed with high dimensional accuracy and high mechanical strength. It can process straight thread and reverse thread.
The machine is easy to operate, compact and reliable, and has a unique automatic opening and closing mechanism.
Processing steel bars with a diameter range of 16-32mm.

structure
The professional steel bar cold heading machine is composed of frame, clamp, guide rail, slide plate, cycloidal pinwheel reducer, rib stripping rolling head, feeding mechanism, automatic opening and closing mechanism, stroke limit mechanism, cooling system, electrical control box, and control System and other components.
