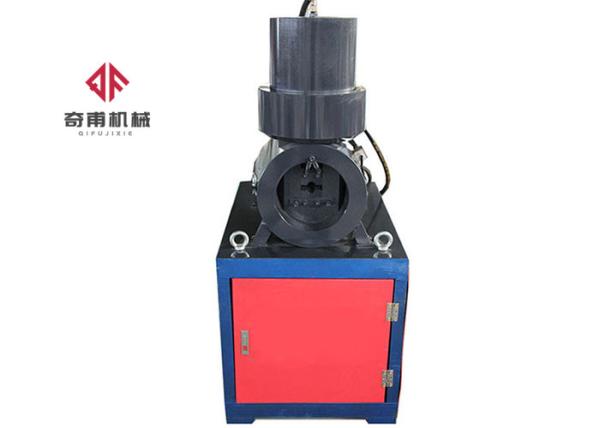

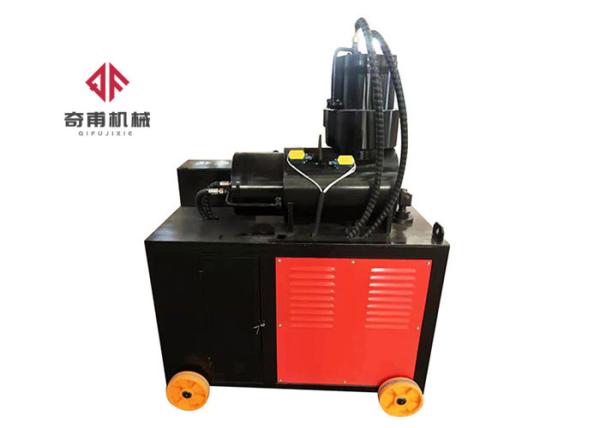

16-32mm building steel pier thick machine automatic forging machine

Applications:

The upsetting straight thread connection technology uses a special upsetting pre-end to upset the threaded section of the bar to be processed, so that the diameter of the rough upset part is larger than the diameter of the base material. Then the upsetting part is threaded with a special sleeve threading machine, and then the two steel-head threaded parts are connected with a wrench with a sleeve of the same size to complete the so-called steel butt joint. The upsetting straight thread connection technology has the characteristics of stable performance, quick connection and labor saving, and high inspection qualification rate. At the same time, it can fully solve the problem of non-rotatable steel connection.

Description:

The automatic double-cylinder reinforced pier roughing machine is used to plastically deform the cold indenter of the steel bar, increase the diameter, and reprocess the thread, so that the effective cross-section of the thread is larger than the steel base material, thereby improving the quality of the joint and making the joint more resistant The tensile strength is greater than the base material. This machine is suitable for connecting bridges, subways and other national key projects with high requirements. The machine is easy to operate, high quality, fast, and not affected by the environment. It is suitable for rough machining of piers of 16-32mm 400-grade steel bars.

Product Features:

1. High bonding strength, it can exert 100% steel stretching to meet Chinese standards (JGJ1072010), American standards (USB, 1997), British standards (BS8110), Taiwan (560) (CNS) and other domestic and foreign related standards Standards have been introduced one after another.
2. The operation is simple, no professional and technical personnel are required, and the on-site connection speed is fast.
3. High production efficiency, each machine can produce 300-500 products, and the project has no time limit. Environmental protection, safety, economy, less investment, and low cost.

use
Professional steel cold heading machine. It is mainly used for the construction of steel bar rolling straight thread, and it is the key equipment to realize steel bar connection.

Features
The professional steel cold heading machine can complete the process from rib stripping to thread rolling at one time. The threaded full-tooth profile is processed with high dimensional accuracy and high mechanical strength. It can process straight thread and reverse thread.
The machine is easy to operate, compact and reliable, and has a unique automatic opening and closing mechanism.

structure
The professional steel bar cold heading machine is composed of frame, clamp, guide rail, slide plate, cycloidal pinwheel reducer, rib stripping rolling head, feeding mechanism, automatic opening and closing mechanism, stroke limit mechanism, cooling system, electrical control box, and control System and other components.
