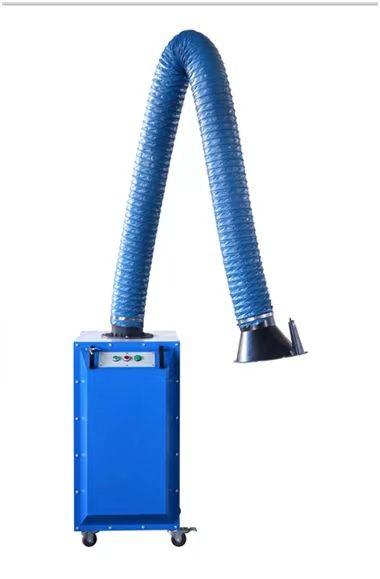

Single Arm Smoke Extractor Polishing Welding Fume Dust Collector Air Valume 1500～3000m3/h
Single Arm Smoke Extractor Polishing Welding Fume Dust Collector Air Valume 1500～3000m3/h
Single Arm Smoke Extractor Polishing Welding Fume Dust Collector Air Valume 1500～3000m3/h
Single Arm Smoke Extractor Polishing Welding Fume Dust Collector Air Valume 1500～3000m3/h
Specifications
Brand Name :
Qiaoda
Model Number :
QD-HY1500D/2200D/3000D
Certification :
CE SGS ISO
Place of Origin :
China
MOQ :
1 pc
Price :
USD 500~900/pc
Payment Terms :
L/C, T/T
Supply Ability :
20 pcs/month
Delivery Time :
25~30 days
Packaging Details :
wooden package
Power :
1.5~3.0kw
Color :
Blue
Voltage :
380V, 50hz(optional)
Air Valume :
1500～3000m3/h
Type :
Portable industrial dust collector
Application :
Industrial Dust Removal
Port :
Tianjin port
Condition :
New
Customized :
accept
Marketing Type :
New Product 2024
Description

Two Arm Welding Smoke Extraction System Welding Fume Dust Collection For Metal Welding

Single Arm Smoke Extractor Polishing Welding Fume Dust Collector Air Valume 1500～3000m3/h

1. Application

The welding smoke purifier produced by the company is a purification device designed for industrial welding smoke and light particles, it is light and flexible, easy to operate, it is also widely used in chemical, electronics, metal processing, tobacco, glass, pharmaceutical, food processing, purification room, hospital and other industries and other places with dust and smoke pollution.

2. Parameter Description

Take QD-HY1500D model for example:

Air Volume 1500m3/h Power 1.5kw
Power 380V, 50HZ(optional) Filter Cartridge Φ325*500mm, 1 pc
Body Dimension 500*700*1000mm Cleaning Method Manual/Pulse
Shell Thickness 1.4mm The Size of Arm Φ*L160*2000mm, 1 pc
Noise <85 dB Purification Efficiency 99.97%

4. Maintenance instructions

The equipment is put into use after repeated experiments for various parts and systems in accordance with the workshop production equipment specifications during processing and under the condition of ensuring production safety and stable operation. The equipment itself has no wearing parts, and no special attention is required during use. All systems are secured at the time of equipment completion. The equipment supplies are provided by our unit and replaced by the workshop operator after the power is turned off.
Follow the following rules when performing repairs and maintenance:
(1)When cleaning the machine shell, replacing parts or changing the working state, you must shut down and unplug the power supply.
(2) Avoid any way to damage the wire, such as squeezing and dragging. And regularly check whether the power cord is damaged, if there is any damage to the power cord, should immediately stop using the machine and be repaired by professionals, replace the damaged power cord and so on.
(3) Machine storage: when the machine is not in use, it should be placed in a dry room to avoid the sun and rain.
(4) The equipment needs to clean the filter cartridge from time to time to prevent clogging, affecting the effect of vacuuming.

5. FAQ

Q: What certificates do you have?
A:CE / ISO / SGS

Q: Do you provide after-sales service?
A: Yes. Engineer provided.

Q: How long is your warranty?
A: One year after the delivery. In the meantime, we ship damaged parts free of charge as long as they are not artificially damaged.

Q: Which payment methods do you accept?
A: Telegraphic transfer, L/C, paypal, cash, D/P, D/A, Western Union, MoneyGram

Q: What kind of transportation do you offer?
A: The customer decides the mode of transportation, air, land and sea
