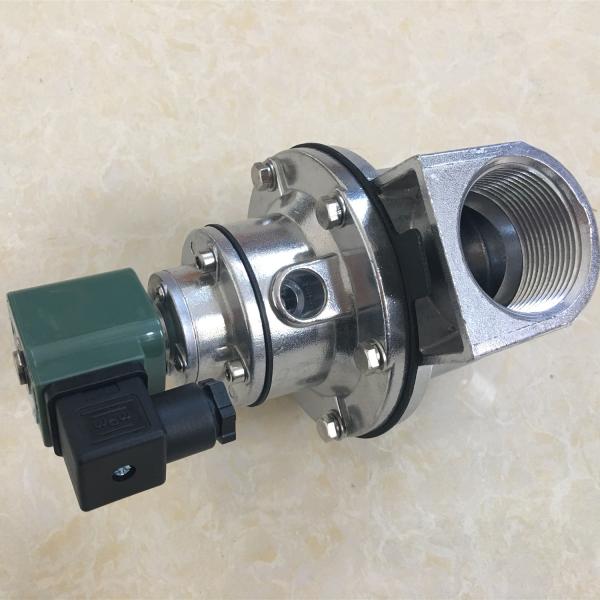

DMF-Z/Y/T/2L-B-G3/4 DMF Bag Filter Dust Collector Electromagnetic Diaphragm Air Pushing Pulse Valve Jet Solenoid Valve

1. Classification
According to the angle of the valve inlet and outlet and the form of air inlet can be divided into three kinds:
(a) Right-angle electromagnetic pulse valve: the valve body inlet and outlet at right angles, directly controlled by the electrical signal diaphragm valve;
(b) Straight-through electromagnetic pulse valve: the valve body inlet and outlet into 180 degrees, directly by the electrical signal control of the diaphragm valve;
(c) submerged electromagnetic pulse valve: valve body inlet submerged in the air bag, directly controlled by the electrical signal diaphragm valve.
In addition to the conventional three solenoid valves, there is a rotary blowing with a large diameter ultra-low pressure electromagnetic pulse valve.rical signal control of the diaphragm valve

2. Installation
(1) Before use, take care to check that the components have not been damaged during transportation.
(2) Before installation, the gas supply pipe should be ventilated and cleaned of debris. When installing, pay attention to the direction of gas flow and whether the receiver is correct.
(3) Apply suitable lubricant to all O-ring seals during installation.
(4) There are three pins on the electromagnetic pulse valve coil with special plugs, one of which with “ ” symbol is the grounding pin, and the user can decide whether to ground it or not according to the need. (In general, the voltage is less than 36V can not be grounded, greater than 36V should be grounded.) The other two are coil power supply pins, which are connected to the terminals of the corresponding sequence of the pulse blowing controller and the terminals of the common wire for the valve. Pay attention to whether the voltage meets the requirements.
(5) The dust collector air distribution box (including the receiver) is customized by the user, and the capacity of the air distribution box should meet the requirements of providing a stable air source for the electromagnetic pulse valve, and the inner wall of the air distribution box should be clean and free of rust and other sundries, and there is no leakage of the air distribution box, and it meets the requirements of the relevant safety.
(6) The temperature of the seals of the valve and the air bag and the blowing connecting pipe is -10℃～70℃. If high temperature seals are required, please specify when ordering.

3. Parameter

4. Q&A

Q: What certificates do you have?
A:CE / ISO / SGS

Q: Do you provide after-sales service?
A: Yes. Engineer provided.

Q: How long is your warranty?
A: One year after the delivery. In the meantime, we ship damaged parts free of charge as long as they are not artificially damaged.

Q: Which payment methods do you accept?
A: Telegraphic transfer, L/C, paypal, cash, D/P, D/A, Western Union, MoneyGram

Q: What kind of transportation do you offer?
A: The customer decides the mode of transportation, air, land and sea.
