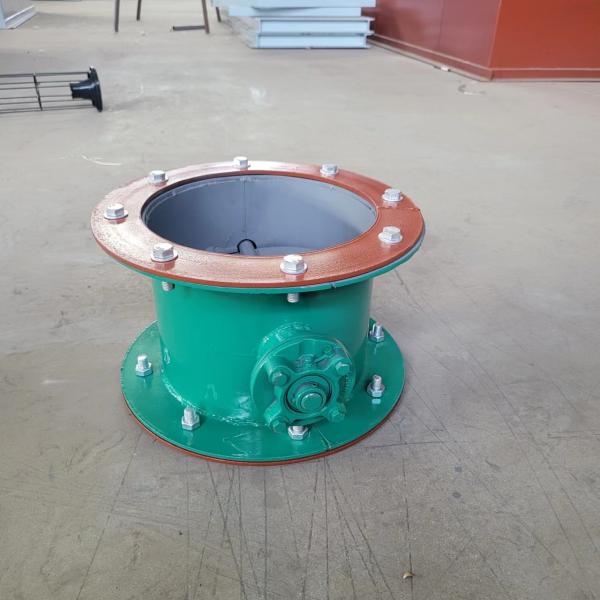

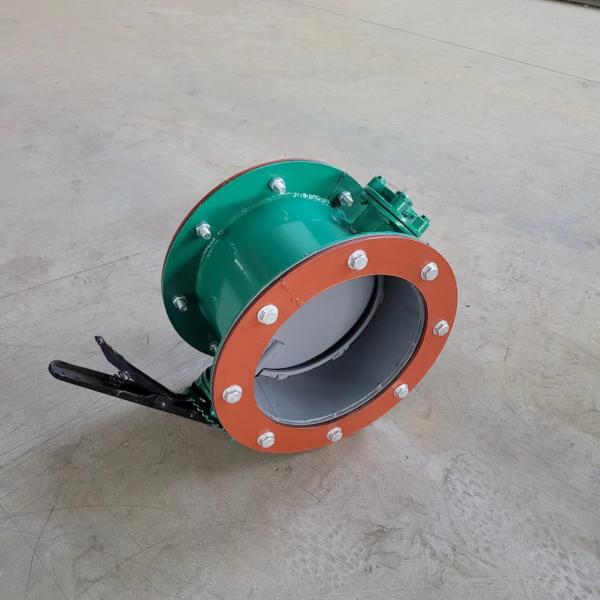

1/2 Inch - 48 Inch Stainless Steel Butterfly Valve Manual DN100-DN3000
1/2 Inch - 48 Inch Stainless Steel Butterfly Valve Manual DN100-DN3000
1/2 Inch - 48 Inch Stainless Steel Butterfly Valve Manual DN100-DN3000
1/2 Inch - 48 Inch Stainless Steel Butterfly Valve Manual DN100-DN3000
1/2 Inch - 48 Inch Stainless Steel Butterfly Valve Manual DN100-DN3000
1/2 Inch - 48 Inch Stainless Steel Butterfly Valve Manual DN100-DN3000
Specifications
Brand Name :
QiaoDa
Model Number :
DN500
Certification :
ISO
Place of Origin :
China
MOQ :
1PC
Price :
negotiated price
Payment Terms :
T/T
Supply Ability :
100 units per month
Delivery Time :
15 word days
Packaging Details :
Consultation with customers
Size :
1/2 inch - 48 inch
Temperature Range :
-29°C to 538°C
End Connections :
Flanged, Threaded, Butt Weld, Socket Weld
Leakage rate :
1% - 3%.
Pressure environment :
Atmospheric pressure
Type :
Butterfly valve
Applicable medium :
Industrial flue gas
Nominal diameter :
DN100-DN3000
Operation :
Manual, electric or pneumatic
Material :
Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Bronze
Operating temperature :
100-500
Country of origin :
China
Feature :
Regulating flue gas
Description

Stainless Steel Butterfly Valve Manual Butterfly

1. Introduction

Butterfly valve is a simple structure of the regulating valve, but also can be used for low-pressure pipeline media switching control. Ventilation butterfly valve is a kind of non-closed type butterfly valve. Main products: large ventilation butterfly valve, electric ventilation butterfly valve, leakage rate of 0, explosion-proof ventilation butterfly valve.

2. Working Principle
Ventilation butterfly valve is divided into manual and electric drive, can be driven by the motor or turbine drive actuator, so that the butterfly plate in the 90 ° range of free rotation to achieve the purpose of opening and closing or regulating the flow of media.

3. Specification

Product name Ventilation butterfly valve Product brand QiaoDa
Product classification Flue valve Nominal pressure Atmospheric pressure
Product material Carbon steel or stainless steel Product size According to the drawing
Product caliber DN300-2000 Product weight According to the drawing
Model number diameter 0 D D. B L t d d Bolt hole number
(n)
(mm)
D04101 100 195 100 160 80 177 14 φ15 14 4
DD4102 150 250 150 215 238 17×17
D04103 200 305 200 270 270 16 8
D04104 250 365 260 330 90 300 12
D04105 300 430 310 385 180 342 18
DD4106 350 480 360 435 367
DD4107 400 535 410 490 392 20 18
D04108 450 585 460 540 417
DD4109 500 645 520 600 447
00410 600 745 620 700 497 16
D04111 700 850 710 800 260 570 22 32×32
DD4112 800 950 810 900 620 20
004113 900 1050 910 1000 670
D04114 1000 1150 1010 1100 720 22
DD4115 1100 1250 110 1200 300 790 24
DD4116 1200 1350 1210 1300 840
DD4117 1300 1450 1310 1400 890 24
28
DD4118 1400 1550 1410 1500 940
