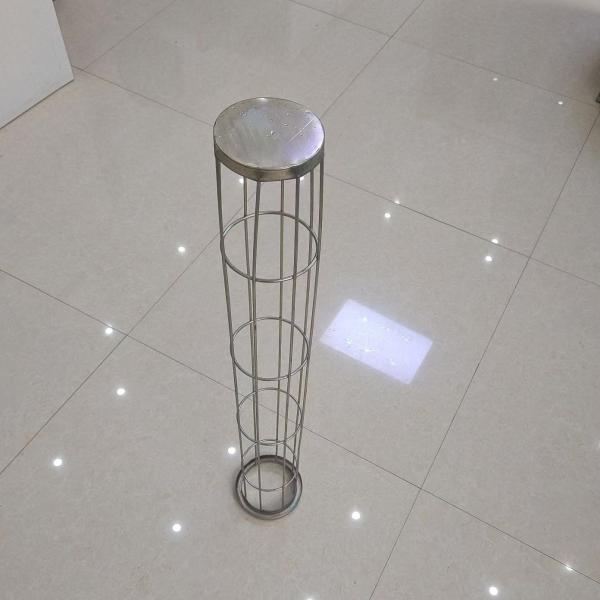

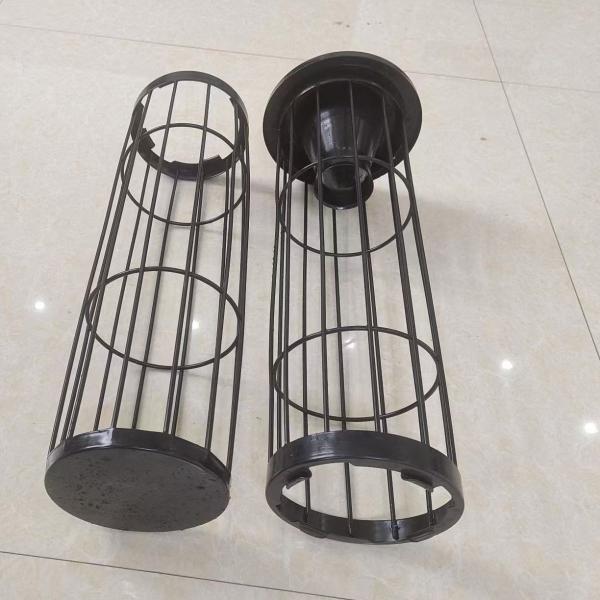

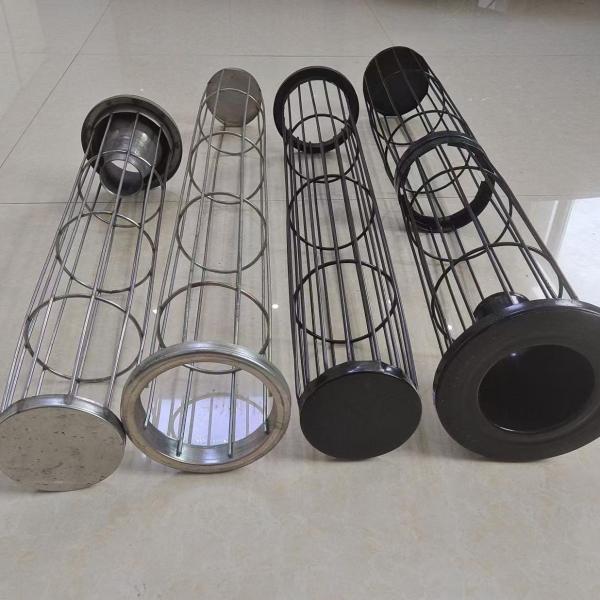

Round Filter Bag Cage Pleated Dust Collector Air Welding Making Machine Polyester 304 316 Skeleton Filter Bag Cage

The quality and use of dust collector skeleton directly affects the dust removal efficiency of bag filter. Dust collector skeleton is one of the accessories in bag filter, which is used in dust collector of chemical industry, metallurgy, building materials, iron and steel, cement, thermal power generation and other industries, and is used to support the dust filter bag to prevent collapsing, which is favorable to the distribution of dust, and improve the efficiency. According to the different requirements of the use of the environment, dust collector skeleton can be divided into galvanized skeleton, spraying skeleton, silicon skeleton, in order to meet the different requirements of the use.

1. Classification of dust collector skeleton:

(1) Silicon dust collector skeleton can be used in industrial and mining environment at about 280℃, and the instant use temperature can reach 300℃. In some specific environments can replace the stainless steel dust collector skeleton, reduce the manufacturing cost of enterprises. Silicon dusting skeleton production and spraying dusting skeleton production process is the same, only in the drying process than the spraying dusting skeleton temperature and time to be higher than the dusting skeleton, in the dust collector skeleton surface spraying powder for silicon powder. Silicon powder in the natural environment of the service life of up to several decades, silicon treatment of the dust filter skeleton has excellent heat resistance and low temperature resistance, but also has excellent sex, can extend the service life of the dust filter skeleton, bring the unique excellent performance of silicon.
(2) Spraying dust collector skeleton is to clean the welded dust skeleton after acid washing and phosphating, and clean the oil, rust, dust, etc., and form a layer of uniform and rough gray phosphate film that is not easy to rust on the outer surface of the dust skeleton, which can not only prevent the rust, but also increase the adhesion of the spraying layer. The dust collector skeleton will use the corona discharge phenomenon to make the plastic powder adsorption on the surface of the workpiece to form the thickness of the powder coating, and then after 180 ~ 220 ℃ baking, so that the plastic powder melting adhesion on the surface of the dust collector skeleton, forming a layer of protection to prolong the temperature resistance and service life of the skeleton.
(3) Galvanized dust collector skeleton adopts cold galvanization, also called electrolytic zinc plating, the use of electrolytic equipment will be dust skeleton after degreasing, pickling, after the composition of zinc salts into the solution, connected to the negative electrolytic equipment, placed on the opposite side of the zinc plate fittings, connected to the positive electrolytic equipment connected to the power supply, the use of electric current from the positive electrode to the negative electrode of the directional movement of the dust skeleton will be deposited a layer of zinc. The appearance of the zinc-plated dusting skeleton is smooth, no zinc tumors, burrs, silver-white or colorful, with the acid resistance, alkali resistance is currently a commonly used dusting skeleton.

2. Specification

3. FAQ

Q: Do you provide after-sales service?
A: Yes. Engineer provided.

Q: How long is your warranty?
A: One year after the delivery. In the meantime, we ship damaged parts free of charge as long as they are not artificially damaged.

Q: Which payment methods do you accept?
A: Telegraphic transfer, L/C, paypal, cash, D/P, D/A, Western Union, MoneyGram

Q: What kind of transportation do you offer?
A: The customer decides the mode of transportation, air, land and sea
