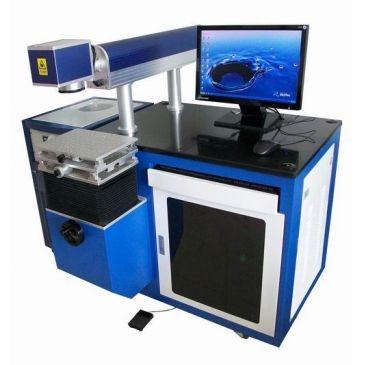

1.Fiber laser

2.High speed galvo scanner(import or china brand optional)

3.No maintenance laser source: service time 100,000 hours.

4. Higher precision,faster speed

5. Small size,low power consumption

6. Red light preview:show the marking position before laser

7. Notebook with Powerful software

8. User friendly interface, easy operation

V, Applicable Materials

It can mark all kind metal materials and some non-metallic materials, industrial plastic, electroplates, metal-coated materials, rubbers, ceramics, mobile button, plastic transparent button. Electronic parts, IC, tools, communication products. Bathing products, tool accessories, glasses and watches, jewelry, button decoration for boxes and bags, cookers, stainless steel products and so on

VI,Applicable Industry

Mobile phone keypads, nonopaque-plastic keypads, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc.

VII, Equipment Features and Technical Advantages

1.Combines the CNC institutions with diode YAG & CO2 laser marking technology in one.

2.Can engrave precisely on any metal and non-metal materials.

3.Can engrave the letter, icons and pictures with high speed in 1.2m/s

4.Over sized working table could achieve mass production

5.Red-light position for quick and accurate adjustment, auto focus ensure the precise engraving

6.Front and back opening design, width with infinity material-feeding, easy to dismantle and adjust the workpiece.

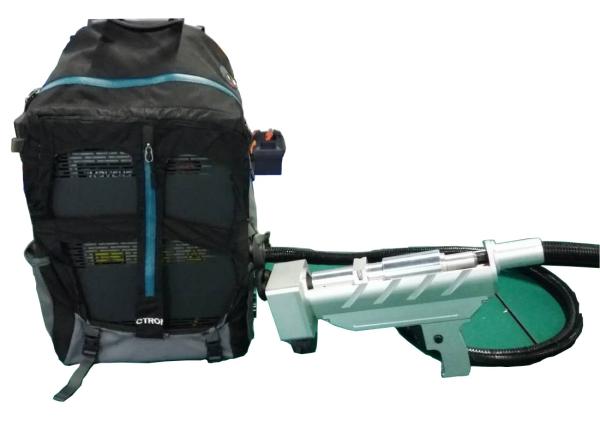

1.Portable: Integration design causes small volume. Can be easily installed. Air cooling.

2High speed scanning galvo mirror: Providing high speed precise marking/engraving.

3.Various field lens for different marking size:F=100mm/160mm/254mm/300mm/420mm.

4.Red dot pointer: To indicate the laser beam position.

5.Up & down worktable: Easy to adjust focal point.

6.Powerful software: Can be used in many applications like serial number marking.

7.Support files in many format: PLT, PCX, AI, DXF, BMP, JPG etc.

8.Various add-ons for different application like rotary marking on cylinder

items.Automatically marking on production line, filling line etc.Fiber laser: TEM00 very

good quality laser beam.

X,Main Technical Parameters:

XI, Product Manufacturing Process:

1.Mechanical system:Cover,Guide rail,Mirror frame and other

2.Optical system:Laser tube,Laser power supply,Three mirrors and one len

3.Transmission system:Three high-precision four equilibrium imported linear guide rail,Belt,Two or three stepper

motor and many gears

4.Control system:High-speed control card,Switching power supply,Motor drive

5.Auxiliary system:circulating industry chiller, Blow gas compressor, Smoke exhaust fan .
