Specifications
Brand Name :
BAMX
Model Number :
BX125-3
Certification :
CCC
Place of Origin :
Chongqing, China
MOQ :
105 units
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000 unit per year
Delivery Time :
20-25 work days
Packaging Details :
SKD, CKD
Engine: :
YBR 150CC /125CC Single-cylinder air-cooled, 4-stroke
Color: :
Customed color
Wheel: :
Spoke wheel/Aluminium Wheel
Brake: :
Front Disc/Drum brake, Rear Drum brake
Start: :
Electric/Kick Start
Clutch: :
Manual Clutch
Description

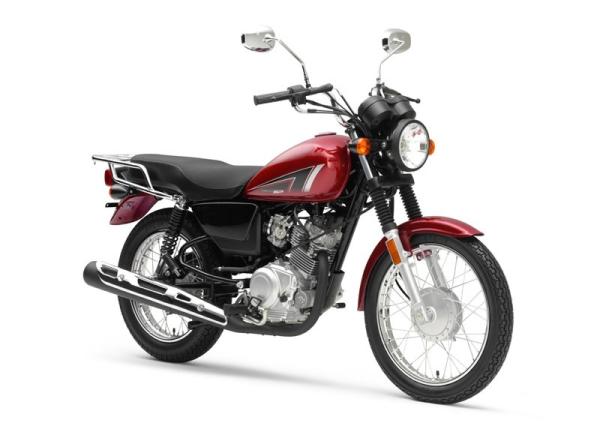

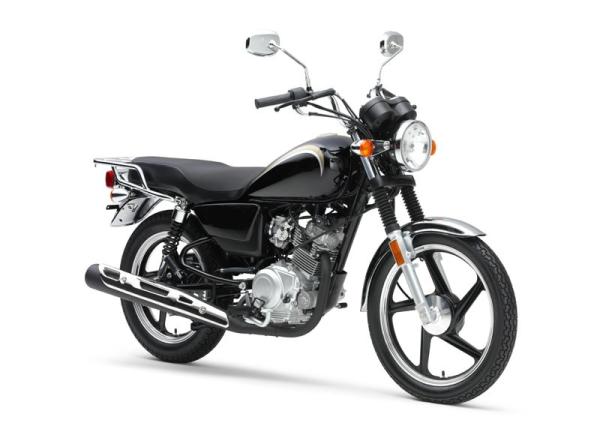

YB125SP Street Motorcycle Alloy Wheel Manual Clutch Disc Brake

Details:

MAIN SPECIFICATION
ENGINE
Engine Type: Single-cylinder,air-cooled, 4-stroke, balance shaft
Displacement (ml): 124ml
Bore X Stroke (mm): 54×54
Compression Ratio: 10:1
Max. Power (kw/r/min) 7.1/7800
Max. Torque (N.m/r/min): 9.9/6000
Max. Speed (Km/h): ≥90
Lubrication: Pressure ,splash
Clutch Type: Multiplate wet clutch
Ignition: CDI
Starting System: Electric/Kick start
Transmission System: Chain drive
CHASSIS
Front shock absorber: hydraulic pressure and spring
Rear shock absorber: hydraulic pressure and spring
Chassis structure: Steel tube and steel plate,rhombic structure
Rear fork: steel
Front Brake: Disc/Drum Brake
Rear Brake: Drum Brake
Front Tire: 2.75-18
Rear Tire: 3.00-18
Muffler:

matte black

Steering Head Angle: 39/41
Wheel rim Alloy/Spoke
Battery: 12V5Ah
DIMENSIONS
L X W X H (mm): 1970*760*1080
Seat Height (mm): 750mm
Wheelbase (mm): 1290mm
Min. Ground Clearance (mm): 150mm
Max. Permissionable Weight (kg): 150
Rider Capacity: 2 Persons
Dry. Weigth (kg): 115
Fuel Tank Capacity (L): 10L
Packing Size (mm):
Packing Weight (kg): 135

Product description:

1. New frame for excellent riding performancen.

Adjust the shape of the seat underframe, and design special rubber materials for the bearings at the rear arm mounting position, so as to achieve a balance between driving and riding, and achieve a stable and comfortable driving feeling.

Disc Brake Street Sport Motorcycles Manual Clutch 125cc Off Road Bike

2. Low long seat with excellent riding and comfort

A low long seat with a height of 760mm and a longitudinal length of 690mm is adopted, and the shape of the inner contact of the thighs is optimized to achieve good riding and driving comfort.

Disc Brake Street Sport Motorcycles Manual Clutch 125cc Off Road Bike

3. New design handlebars for comfortable riding posture

The new design handlebar for comfortable riding posture adopts the new design handlebar to leave a spare position for the elbow, which can obtain a riding posture with a straight back and relieve fatigue when driving for a long time

Disc Brake Street Sport Motorcycles Manual Clutch 125cc Off Road Bike

4. Handy choke handle for easy operation

The switch box panel of the left handlebar is provided with a choke handle, which is more convenient to operate when starting.

Disc Brake Street Sport Motorcycles Manual Clutch 125cc Off Road Bike

5. Identify gear display

There is a gear display in the instrument panel, which makes it easy to select a gear during driving.

Disc Brake Street Sport Motorcycles Manual Clutch 125cc Off Road Bike

6. Newly designed lightweight coil spring

The rear wheel suspension adopts a new lightweight spring to achieve light weight. The upper part of the connection between the suspension part and the vehicle body adopts a chrome plated cap to prevent sediment from entering and make it more solid.

Disc Brake Street Sport Motorcycles Manual Clutch 125cc Off Road Bike

7. Cast sleeve engine with excellent reliability

Air cooled 4-stroke SOHC 124cm3 single cylinder engine adopts "cast cylinder", which has higher reliability.

Disc Brake Street Sport Motorcycles Manual Clutch 125cc Off Road Bike

8. A new type of clutch for smooth transmission

New type clutch to realize smooth speed change the new type clutch uses paper-based materials for the friction plates to reduce friction and heat to realize smooth speed change.

Disc Brake Street Sport Motorcycles Manual Clutch 125cc Off Road Bike

Options:

MP3, USB, Remote Controller, Alarm

Customed Color And Sticker Design Is Accepted

Light: LED Light/ Halogen Lamp

Odometer: Digital Odometer/Mechanical Odometer

Engine: 125CC/150CC

Lagguge: Rear rack/ Small rear carrier/ Tail box
