57-1000335-01 FC SFP+ Transceiver XBR-000278 32G ELWL 25Km For X6 G610 G620 G630
57-1000335-01 FC SFP+ Transceiver XBR-000278 32G ELWL 25Km For X6 G610 G620 G630
57-1000335-01 FC SFP+ Transceiver XBR-000278 32G ELWL 25Km For X6 G610 G620 G630
57-1000335-01 FC SFP+ Transceiver XBR-000278 32G ELWL 25Km For X6 G610 G620 G630
Specifications
Brand Name :
Brocade
Model Number :
57-1000335-01
Certification :
CE UL
Place of Origin :
Malaysia
MOQ :
1pcs
Price :
price is negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100pcs per month
Delivery Time :
2-3 working days
Packaging Details :
Anti-static blister box
Center Wavelength :
1295 nm to 1310 nm
Temperature :
0°C~+70°C
Weight :
0.05KG/PCS
Performance :
auto-sensing of 8G, 16G, and 32G port speeds.
Cable Type :
SMF
Cable Distance :
25km
connector :
Industry-standard LC duplex
compliant :
RoHS
Description

Brocade 57-1000335-01 FC SFP+ Transceiver XBR-000278 32G ELWL 25Km for X6 G610 G620 G630

Brocade 32Gb/s ELWL FC SFP transceiver Specifications

The Brocade® 32G extended long wavelength (ELWL) SFP+, part of the Brocade family of optical transceivers, is optimized for Brocade 32G director and switch products. Together, these optical transceivers provide state-of-the-art performance, while extending data center connectivity over a distance of 25 km. This optical transceiver operates over single-mode fiber and uses an industry-standard LC connector.

Diagnostic features of the Brocade 32G ELWL SFP+ optical transceiver comply with SFF-8472 Rev.12.3, providing real-time monitoring of the following:

• Transmitted optical power

• Received optical power

• Laser bias current

• Temperature

• Supply voltage

Parameters for the 32Gb/s ELWL FC SFP Transceiver Module:

Performance

Fibre Channel: 8.5Gb/s, 14.025Gb/s, and 28.05Gb/s line speed, full duplex;

Media Hot-pluggable, industry-standard SFP+, LC connector; ELWL 25 km; minimum distance of 10 km required. This transceiver is targeted for long-reach applications with high-power transmitters. Attenuation of ~6 dB is needed for loopback testing
Operating Parameters

Transmit (Tx):

• Wavelength: 1295 nm to 1310 nm

• Average power: +2.0 dBm to +7.0 dBm

• RIN: −130 dB/Hz max.

• Optical return loss: 26 dB min.

• OMA: +2.0 dBm to +7 dBm

Receive (Rx):

• Average power: 2 dBm max.

• Optical return loss: 26 dB min.

• Unstressed sensitivity: 41 µW, −13.9 dBm
Size

Width: 14.81 mm (0.58 inches)

Height: 11.90 mm (0.47 inches)

Depth: 56.50 mm (2.22 inches)
Storage Temperature −40°C to +85°C (−40°F to +185°F)
Power Dissipation 1.5W

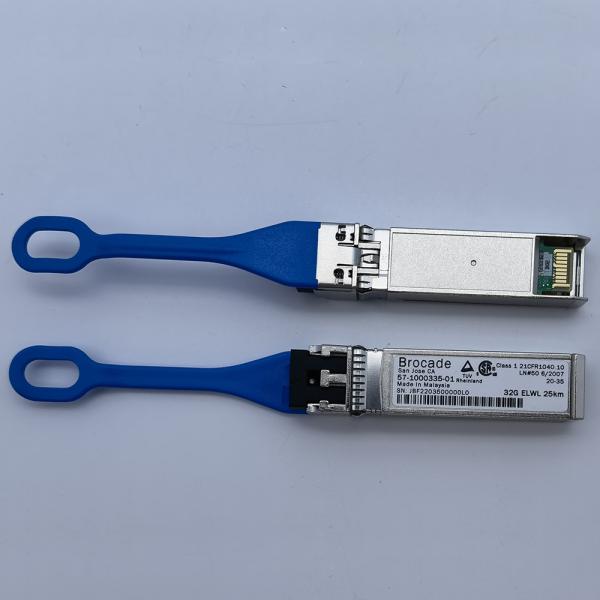

Photo for Brocade 32Gb/s ELWL FC SFP Transceiver

57-1000335-01 FC SFP+ Transceiver XBR-000278 32G ELWL 25Km For X6 G610 G620 G630

FAQ

Q1. Except for this Brocade 32Gb/s SW FC SFP Transceiver optical modules, what else Brocade sfp can you offer?

A1: pls check the below form for the Brocade optical module we can offer;

Data Rate
Description
Manufacturing
Part Number
Brocade Ordering
Part Number
4x32G FC QSFP+
SWL
57-1000351-01
XBR-000275 (1-pack)
4x32G FC QSFP+
SWL
57-1000490-01
XBR-000475 (1-pack)
4x32G FC QSFP+
2 km
57-1000480-01
XBR-000285 (1-pack)
64G FC SFP+
SWL
57-1000495-01
XBR-000462 (1-pack)
XBR-000463 (8-pack)
64G FC SFP+
LWL - 10 km
57-1000496-01
XBR-000468 (1-pack)
XBR-000469 (8-pack)
64G FC SFP+
ELWL - 25 km
57-1000497-01
XBR-000466 (1-pack)
32G FC SFP+
SWL
57-1000333-01
XBR-000212 (1-pack)
XBR-000213 (8-pack)
32G FC SFP+
SWL
57-1000485-01
XBR-000412 (1-pack)
XBR-000413 (8-pack)
32G FC SFP+
LWL - 10 km
57-1000332-01
XBR-000238 (1-pack)
XBR-000239 (8-pack)
32G FC SFP+
LWL - 10 km
57-1000486-01
XBR-000438 (1-pack)
XBR-000439 (8-pack)
32G FC SFP+
ELWL - 25 km
57-1000355-01
XBR-000278 (1-pack)
32G FC SFP+
ELWL - 25 km
57-1000494-01
XBR-000478 (1-pack)
32G FC SFP+
ELWL - 25 km
57-1000498-01
XBR-000479 (1-pack)
16G FC SFP+
SWL
57-0000088-01
XBR-000192 (1-pack)
XBR-000193 (8-pack)
16G FC SFP+
SWL
57-1000487-01
XBR-000492 (1-pack)
XBR-000493 (8-pack)
16G FC SFP+
 LWL - 10 km
57-0000089-01
XBR-000198 (1-pack)
XBR-000199 (8-pack)
16G FC SFP+
 LWL - 10 km
57-1000488-01
XBR-000498 (1-pack)
XBR-000499 (8-pack)
16G FC SFP+
 ELWL - 25 km
57-1000262-01
XBR-000258 (1-pack)
16G FC SFP+
 ELWL - 25 km
57-1000489-01
XBR-000458 (1-pack)
8G FC SFP+
SWL
57-1000117-01
XBR-000163 (1-pack)
XBR-000164 (8-pack)
8G FC SFP+ LWL - 10 km
57-1000027-02
XBR-000153 (1-pack)
XBR-000172 (8-pack)
8G FC SFP+ ELWL - 25 km
57-0000080-01
XBR-000174 (1-pack)

Q2:Is this genuine Brocade Original 32G ELWL FC SFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.



Q3:Does your SFP provide a quality warranty?
A3:​For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;



Q4:Can you send this SFP module to my place? and how long does it take?

​A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
