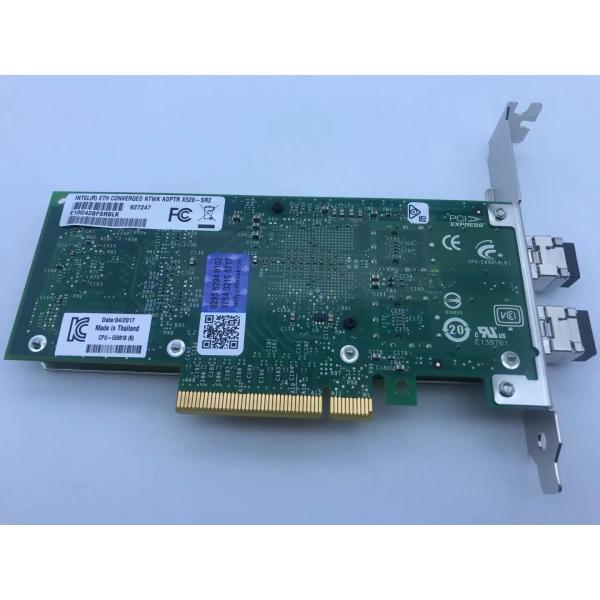

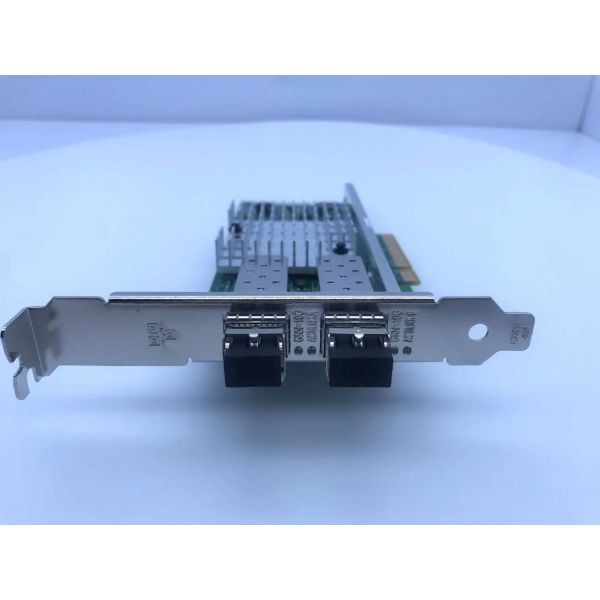

X520-SR2 10 GIGABIT Dual Port Ethernet Adapter
X520-SR2 10 GIGABIT Dual Port Ethernet Adapter
X520-SR2 10 GIGABIT Dual Port Ethernet Adapter
X520-SR2 10 GIGABIT Dual Port Ethernet Adapter
Specifications
Brand Name :
Intel
Model Number :
X520-SR2
Certification :
RoHS、FCC
Place of Origin :
Malaysia
MOQ :
1 pc
Price :
Price is negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal,Credit Card
Supply Ability :
500pcs/month
Delivery Time :
3-5 working days
Packaging Details :
Original Package
Products Status :
Stock
Application :
Server
Type :
Wireless
Connectors :
two LC
Transmission Rate :
10Gb
Interface Type :
PCI Express
Storage temperature :
-40 °C to 70 °C
Operating temperature :
0 °C to 55 °C
Description

X520-SR2 10 GIGABIT Dual-Port Ethernet Converged Network Adapter

X520-SR2 2-Port 10GB Adapter

Intel’s family of adapters, the Intel® Ethernet Converged Network Adapter X520 with SFP+ connectivity, are the most flexible and scalable Ethernet adapters for today’s demanding data center environments.

Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC),

database clusters, and video-on-demand are driving the need for 10 Gbps connections.

Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.

Powered by Intel’s third-generation 10 GbE network controller, the Intel® Ethernet 82599 10 Gigabit Ethernet Controller,

the X520 adapter family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance.

Features of X520-SR2

Intel® 82599 10 Gigabit Ethernet Controller • Industry-leading, energy-efficient design for next-generation 10 Gigabit performance and multi-core processors
SFP+ Connectivity • X520 Adapters with SFP+ connections support 10GBASE-SR, 10GBASE-LR and SFP+ Copper Direct Attach physical media.
Low-profile • Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers
Load balancing on multiple CPUs • Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling (RSS) from Microsoft or Scalable I/O on Linux*
iSCSI remote boot support • Provides centralized storage area network (SAN) management at a lower cost than other iSCSI solutions
Fibre Channel over Ethernet (FCoE) Support • Includes FCoE Boot and Data Center Bridging
Support for most network operating systems (NOS) • Enables widespread deployment
RoHS-compliant2 • Complies with the European Union directive 2002/95/EC to reduce the use of hazardous materials
Intel® PROSet Utility for Windows* Device Manager • Provides point-and-click management of individual adapters, advanced adapter features, connection teaming, and virtual local area network (VLAN) configuration
Time Sync (IEEE 1588*, 802.1as) • Enables networked Ethernet equipment to synchronize internal clocks according to a network mas- ter clock; endpoint can then acquire an accurate estimate of the master time by compensating for link latency

Technical Features of X520-SR2

Data rate supported per port:

• Optical: 1 GbE/10 GbE

• Direct Attach: 10 GbE
Bus type PCI Express 2.0 (5 GT/s)
Bus width 4-lane PCI Express and 8-lane PCI Express
Interrupt levels INTA, MSI, MSI-X
Hardware certifications FCC B, UL, CE, VCCI, BSMI, CTICK, KCC
Controller-processor Intel® 82599 Ethernet Controller

Power Consumption

SKU

Dual-port 10GBASE-SR/1000BASE-SX Dual-port 10GBASE-LR/1000BASE-LX Dual-port direct attached twinax Single-port 10GBASE-SR/1000BASE-SX Single-port 10GBASE-LR/1000BASE-LX Single-port direct attached twinax

Maximum Power

6.8 W

7.0 W

6.2 W

4.8 W

4.8 W

4.6 W

Typical Power

6.5 W

6.6 W

5.8 W

4.5 W

4.5 W

4.3 W
Operating temperature 0 °C to 55 °C (32 °F to 131 °F)
Air Flow Minimum of 100 LFM required
Storage temperature -40 °C to 70 °C (-40 °F to 158 °F)
Storage humidity Maximum: 90% non-condensing relative hu- midity at 35 °C
LED Indicators

LINK (solid) and ACTIVITY (blinking)

LINK SPEED (green=10 Gbps; yellow=1 Gbps)

Physical Dimensions

Low-profile PCIe

 5.73 in. long, measured without PCIe bracket

X520-SR2 10 GIGABIT Dual Port Ethernet Adapter

X520-SR2 10 GIGABIT Dual Port Ethernet AdapterX520-SR2 10 GIGABIT Dual Port Ethernet AdapterX520-SR2 10 GIGABIT Dual Port Ethernet Adapter

FAQ of X520-SR2

Q1. Are your network adapter original?

A1.Yes, all our network adapter are guaranteed 100% original!

Q2. What will you do if I found the product has any quality problem?

A2.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!

Q3. How about the shipment?
A3. We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Ocean transportation.
