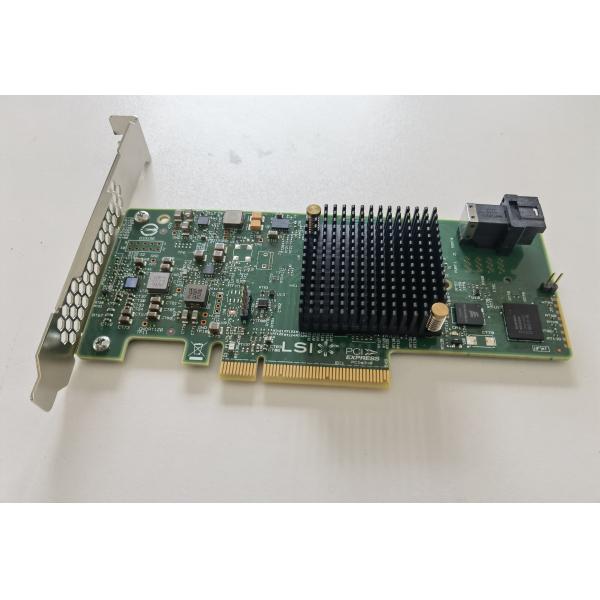

LSI SAS 9300-4i PCI Express To 12Gb/S Serial Network Adapter Card
LSI SAS 9300-4i PCI Express To 12Gb/S Serial Network Adapter Card
LSI SAS 9300-4i PCI Express To 12Gb/S Serial Network Adapter Card
LSI SAS 9300-4i PCI Express To 12Gb/S Serial Network Adapter Card
Specifications
Brand Name :
LSI
Model Number :
SAS 9300-4i
Certification :
RoHS、FCC
Place of Origin :
Malaysia
MOQ :
1 pc
Price :
Price is negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal,Credit Card
Supply Ability :
500pcs/month
Delivery Time :
3-5 working days
Packaging Details :
Original Package
Products Status :
Stock
Application :
Server
Ports :
4 ports
Warranty :
1 year
Transmission Rate :
12Gb/s
Type :
PCIe 3.0
Operating Temperature :
0°C to 55°C
Storage temperature :
–45 °C to +105 °C
Description

LSI SAS 9300-4i PCI Express to 12Gb/s Serial Network Host Bus Adapter Card

LSI SAS 9300-4i Adapter

The LSI® PCI Express® (PCIe® )-to-Serial Attached SCSI (SAS) host bus adapter (HBA), referred to as the LSI 12Gb/s SAS HBA, provides high-performance internal storage connectivity for servers and workstations.
The LSI 12Gb/s SAS HBA provides four lanes of 12Gb/s SAS connectivity and is matched with eight lanes of PCIe 3.0 8Gb/s performance.
The low-profile design of the SAS HBA includes a full-height bracket and low-profile mounting bracket that create a universal fit for any server.
The LSI 12Gb/s SAS HBA is based on the Fusion-MPT™-architected LSI SAS 3004 controller that integrates the latest enhancements in PCIe 3.0 technology and 12Gb/s SAS technology. The LSI 12Gb/s SAS HBA has onboard Flash memory for the firmware.

Features

  • Implements LSI SAS 3004 four-port 12Gb/s SAS to PCIe 3.0 controller

  • Supports eight-lane, full-duplex PCIe 3.0 performance

  • Supports SATA link rates of 3Gb/s and 6Gb/s

  • Supports SAS link rates of 3Gb/s, 6Gb/s, and 12Gb/s

  • Provides one x4 internal mini-SAS HD connector (SFF-8643)

  • Supports passive copper cable, active copper cable, and optical cable

  • Can upgrade to support Integrated RAID (RAID 0, RAID 1, RAID 10, and RAID 1E)

  • Supports up to 1024 SATA or SAS end devices

  • Offered with a full-height bracket and a low-profile vented bracket

  • Provides one heartbeat LED

Characteristics

Memory
The LSI 12Gb/s SAS HBA provides one 4-M × 16-bit Flash ROM to store the firmware and the BIOS. The LSI 12Gb/s SAS
HBA can provide up to 32 K × 8-bit NVSRAM for storing nonvolatile RAID information when a system failure occurs or
to reflash the board to run Integrated RAID (IR) firmware.
LED
The LSI 12Gb/s SAS HBA Heartbeat LED, CR1, blinks green to indicate the HBA is capable of general activity.
Connectors
PCIe Connector (EC1). The LSI 12Gb/s SAS HBA supports a x8 interface. The PCIe host interface connection is through
the edge connector, EC1, which provides connections on both the top (EC1 B) and bottom (EC1 A) of the board. The
signal definitions and pin numbers conform to the PCIe specification.
SATA+SAS Connector (J1). The LSI 12Gb/s SAS HBA supports SATA and SAS connectors through connectors that are
SFF-8643 mini-SAS HD, internal connectors.


LSI SAS 9300-4i PCI Express To 12Gb/S Serial Network Adapter Card

LSI SAS 9300-4i PCI Express To 12Gb/S Serial Network Adapter Card

FAQ

Q1. Are your network adapter original?

A1.Yes, all our network adapter are guaranteed 100% original!

Q2. What will you do if I found the product has any quality problem?

A2.We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years! Our dream is to build a famous 100 years enterprise!

Q3. How about the shipment?


A3. We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Ocean transportation.

Q4. What are the trade terms?

A4.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Alipay, Escow, Money Gram

Warranty: 1 Year
