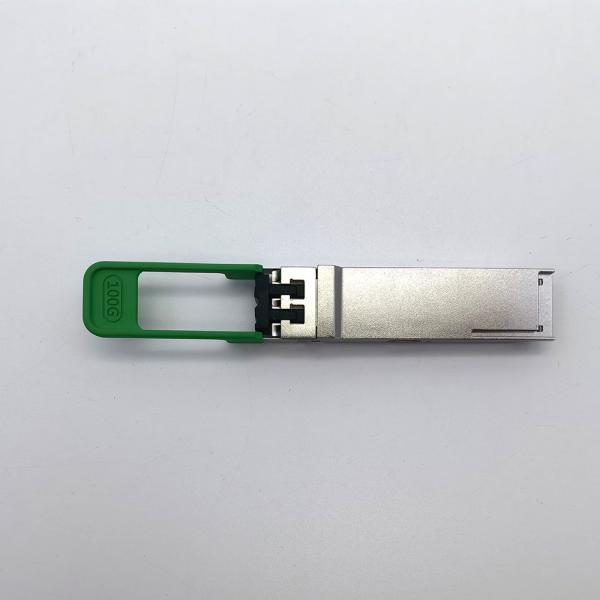

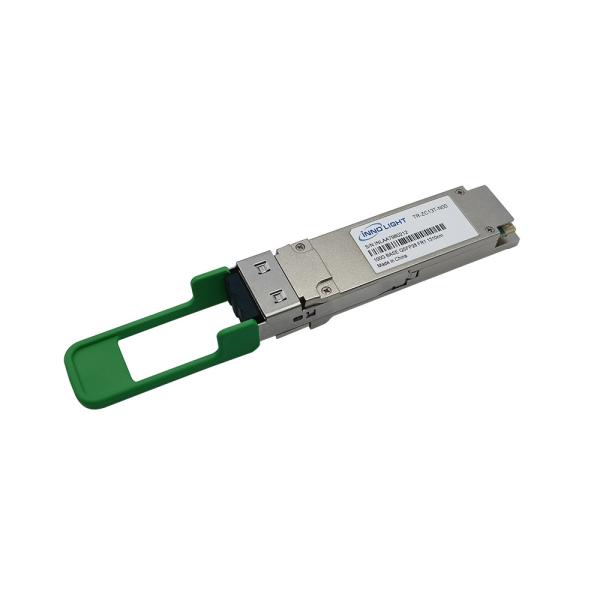

Innolight 100Gb/s QSFP28 Single TR-ZC13T-N00 Original Optical Transceiver Module

TR-ZC13T-N00 Features

• QSFP28 MSA compliant

• Supports 53.125Gbaud

• 100G Lambda MSA 100G-FR Specification compliant

• Up to 2km transmission on single mode fiber (SMF) with FEC

• Operating case temperature: 0 to 70oC

• 4x25G electrical interface (OIF CEI-28GVSR)

• Maximum power consumption 4.5W

• LC duplex connector RoHS compliant

APPLICATIONS

• Data Center Interconnect

• 100G Ethernet

• Enterprise networking

TR-ZC13T-N00 description

This product is a transceiver module designed for 2km optical communication applications.

The module incorporates one channel optical signal, on 1310nm center wavelength, operating at 50Gbaud data rate.

The transmitter path incorporates an EML Driver and a cooled EML together.

On the receiver path, the input optical signal is coupled to a Pin photodiode detector.

A DSP based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal.

Also a 4-channel retimer and FEC block are integrated in this DSP.

The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and optical interface is compliant to IEEE 802.3cd and 100G Lambda MSA with Duplex LC connector.

The module has a maximum power consumption of 4.5W.

FAQ

Q1. Are your Optical Transceivers original?

A1.Yes, all our optical transceivers are guaranteed 100% original!

Q2.How do you guarantee the quality of SFP?

A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.

Q3. What is the operating temperature range of optical modules?

A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT):-5 to 85°C(23 to 185°F)

Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)

Storage temperature range:-40 to +85°C(-40 to 185°F)

Q5. What are the trade terms?

A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Alipay, Escow, Money Gram

Warranty: 1 Year
