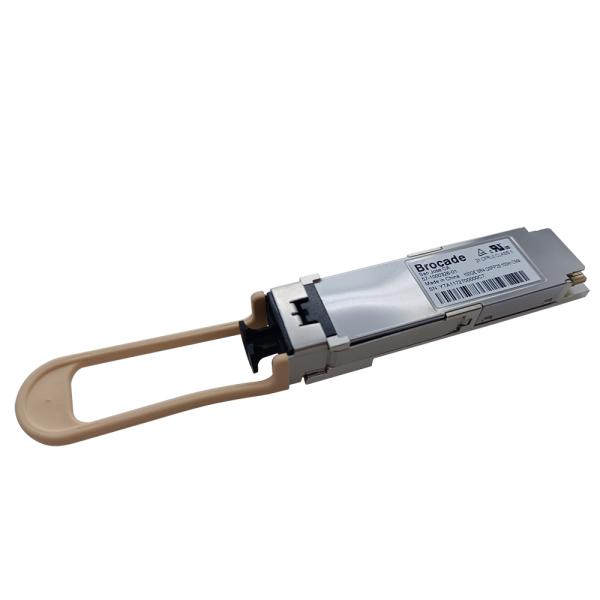

Brocade Gen6 FC32-64 Use 57-1000129-01 Transceiver QSFP+ 40GBASE-SR4 MMF MPO
The Brocade® 100 Gb/s SR4 QSFP28 optical transceivers provide stateof-the-art performance o help IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.
Data Speed | 4×25.8 Gb/s |
Center Wavelength | 850NM |
Fiber Type | MMF |
Transmission | 70M on OM3, 100M on OM4 |
Connector | MTP/MPO-12 |
Lasers | VCSEL + PIN |
Tx power | -9.1 - + 2.4 dBm |
Rx sensitivity | -11.0 - +2.4 dBm |
OMA | -7.1 dBm to +3.0 dBm per channel |
Power Consumption | 2.5 W |
Single Power Supply | 3.3 v |
The Brocade 100 Gb/s SR4 QSFP28 supports highly reliable operations in service provider and data center networks. It undergoes rigorous qualification and certification testing to provide an end-to-end solution that is easier to maintain—helping improve the availability of data center networks supporting mission-critical applications.
-
Provides high system reliability based on rigorous qualification and certification testing
-
Leverages unique design parameters to provide the highest performance with industry-leading Brocade solutions to support business continuity
-
Complies with 100GBASESR4 (IEEE 802.3bm) optical specifications, helping to ensure compatibility with other standardscompliant optics
-
Helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility
-
Optimizes connectivity to enable maximum cable distance
Parameters

FAQ
-
Is this genuine Brocade Original Transceiver?
Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since 2006 and never sell fake or copy brand items.
- Hong long does the SFP warranty provide?
For brocade SFP, we offer 30days of free return, one-year of free replacement.
Yes, we provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
-
Do you have regular stock of this Brocade transceiver?
Yes, we have regular stock of this model, ready to ship in 3 working days
