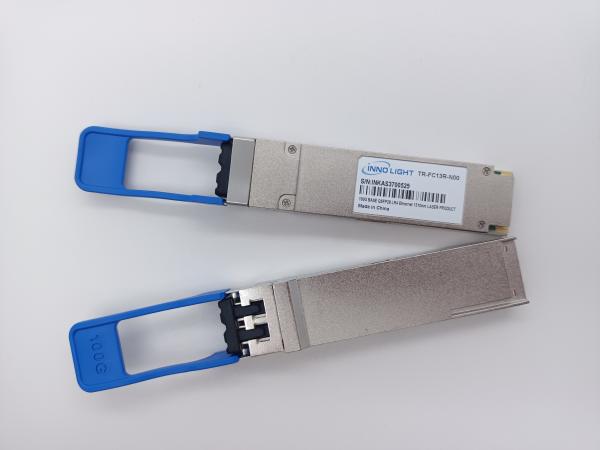

InnoLight TR-FC13R-N00 QSFP28 100G QSFP28 LR4 Ethernet Optical Transceiver
InnoLight TR-FC13R-N00 QSFP28 100G QSFP28 LR4 Ethernet Optical Transceiver
InnoLight TR-FC13R-N00 QSFP28 100G QSFP28 LR4 Ethernet Optical Transceiver
InnoLight TR-FC13R-N00 QSFP28 100G QSFP28 LR4 Ethernet Optical Transceiver
Specifications
Brand Name :
InnoLight
Model Number :
TR-FC13R-N00
Certification :
RoHS-6
Place of Origin :
Malaysia
MOQ :
1pc
Price :
Price is negotiable
Payment Terms :
T/T, Paypal、Credit card
Supply Ability :
5000pcs/month
Delivery Time :
3-5 working day
Packaging Details :
Anti-boxes，Standard packaging
Data rate :
100Gb/s
Form-Factor :
QSFP28
Receiver :
4x25Gb/s PIN ROSA
Transmitter :
cooled 4x25Gb/s LAN WDM DFB TOSA
Connector :
LC
Lasers :
DFB
Maximum power consumption :
4W
Operating case temperature :
0~70oC
Description

InnoLight TR-FC13R-N00 QSFP28 100G QSFP28 LR4 Ethernet Optical Transceiver

Fiber Type Single mode
Weight 0.06kg
Warranty 1 Year
Tx power -4.3 to + 4.5 dBm
Rx sensitivity -10.6 to + 4.5 dBm
Extinction Ratio 4.0dB
Single Power Supply
3.3V
Applications
100GBASE-LR4 Ethernet Links

Features of TR-FC13R-N00 QSFP28 100G
  • Hot pluggable QSFP28 MSA form factor
  • Compliant to IEEE 802.3ba 100GBASE-LR4
  • Supports 103.1Gb/s aggregate bit rate
  • Up to 10km reach for G.652 SMF
  • Single +3.3V power supply
  • Operating case temperature: 0~70oC
  • Transmitter: cooled 4x25Gb/s LAN WDM DFB
TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
  • Receiver: 4x25Gb/s PIN ROSA

  • 4x25G electrical interface (OIF CEI-28G-VSR)
  • Maximum power consumption 4.0W
  • Duplex LC receptacle
  • RoHS-6 compliant

Applications of TR-FC13R-N00 QSFP28 100G
  • 100GBASE-LR4 Ethernet Links
  • Infiniband QDR and DDR interconnects
  • Datacenter and Enterprise networking
General Description of TR-FC13R-N00 QSFP28 100G

This TR-FC13R-N00 QSFP28 100G is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE 802.3ba standard.
The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.
Reversely on the receiver side, the module demultiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
Functional Description of TR-FC13R-N00 QSFP28 100G
The TR-FC13R-N00 QSFP28 100G receives 4 channels of 25Gb/s electrical data, which are processed by a 4- channel Clock and Data Recovery (CDR) IC that reshapes and reduces the jitter of each electrical signal.
Subsequently, DFB laser driver IC converts each one of the 4 channels of electrical signals to an optical signal that is transmitted from one of the 4 cooled DFB lasers which are packaged in the Transmitter Optical Sub-Assembly (TOSA).
Each laser launches the optical signal in specific wavelength specified in IEEE 802.3ba 100GBASE-LR4 requirements.
These 4-lane optical signals will be optically multiplexed into a single fiber by a 4-to-1 optical WDM MUX. The optical output power of each channel is maintained constant by an automatic power control (APC) circuit.
The transmitter output can be turned off by TX_DIS hardware signal and/or 2-wire serial interface.
InnoLight TR-FC13R-N00 QSFP28 100G QSFP28 LR4 Ethernet Optical Transceiver
InnoLight TR-FC13R-N00 QSFP28 100G QSFP28 LR4 Ethernet Optical Transceiver

FAQ

Q1. Are your Optical Transceivers original?

A1.Yes, all our optical transceivers are guaranteed 100% original!

Q2.How do you guarantee the quality of SFP?

A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.

Q3. What is the operating temperature range of TR-FC13R-N00 QSFP28 100G?

A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT): -5 to 85°C(23 to 185°F)

Industrial temperature range(IND): -40 to 85°C(-40 to 185°F)

Storage temperature range: -40 to +85°C(-40 to 185°F)

Q4. What payment terms do you accept?
A4. T/T, Paypal,Credit card.

Q5. How about the shipment?


We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Ocean transportation.

Warranty: 1 Year
