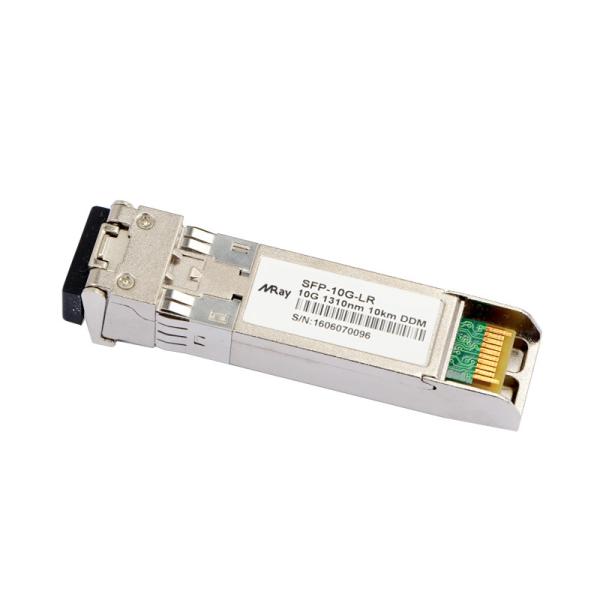

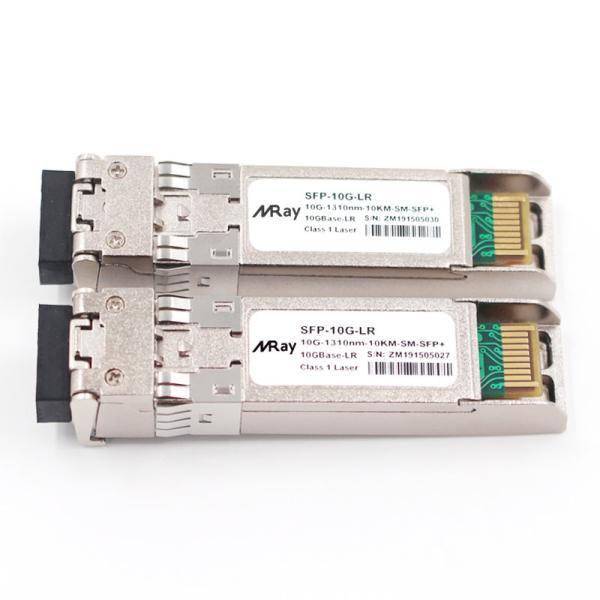

20km SMF Lr Sfp+ Module , Ubiquiti 10g Sfp+ For FTTH FTTB FTTO Network
20km SMF Lr Sfp+ Module , Ubiquiti 10g Sfp+ For FTTH FTTB FTTO Network
20km SMF Lr Sfp+ Module , Ubiquiti 10g Sfp+ For FTTH FTTB FTTO Network
20km SMF Lr Sfp+ Module , Ubiquiti 10g Sfp+ For FTTH FTTB FTTO Network
20km SMF Lr Sfp+ Module , Ubiquiti 10g Sfp+ For FTTH FTTB FTTO Network
20km SMF Lr Sfp+ Module , Ubiquiti 10g Sfp+ For FTTH FTTB FTTO Network
20km SMF Lr Sfp+ Module , Ubiquiti 10g Sfp+ For FTTH FTTB FTTO Network
20km SMF Lr Sfp+ Module , Ubiquiti 10g Sfp+ For FTTH FTTB FTTO Network
Specifications
Brand Name :
Mray
Model Number :
SFP-10G-LR20
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
USD15-20/piece
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
10pcs/plastic try, 500pcs per standard export carton
Product name :
10GBase-LR SFP+ Transceiver 10G 1310nm SMF
Data Rate :
10Gbps
Distance :
20km SMF
Connector type :
Dual LC
Compatiable :
Dell, HP, Cisco, Juniper, Ubiquiti...
Application :
FTTH FTTB FTTO Network
Description

10GBase-LR SFP+ Transceiver 10G 1310nm SMF Compatible with Ubiquiti UF-SM-10G

Description

This Miray SFP-10G-LR20 Small Form Factor Pluggable SFP+ transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. The high performance uncooled 1310nm DFB transmitter and high sensitivity PIN receiver provide superior performance for 10GBASE-LR/LW applications up to SMF 20km optical links.

Standard

  • Compliant with SFF-8431 and SFF-8432

  • Compliant with SFF-8472 Rev 10.2

  • Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW

  • RoHS Compliant

Features

  • Compliant with IEEE802.3ae 10GBASE-LR/LW

  • Compliant with SFF-8431 SFP+ MSA

  • Support 8.5Gb/s to 11.32Gb/s Multi-Rate

  • Hot Pluggable

  • 1310nm DFB laser transmitter

  • Duplex LC connector

  • 2-wire interface for management and diagnostic monitor compliant with SFF-8472

  • Single +3.3V power supply

  • Link distance 10km over SM fiber

  • RoHS Compliant

Application

  • 10GBASE-LR/LW Ethernet @10.3125G

  • Fiber Channel 800-SM-LC-L 8GFC @8.5G, 1200-SM-LL-L 10GFC @10.51875G

  • SONET OC-192 & SDH STM-64 @9.953G

  • CPRI Option #7 @9.83G, #8 @10.1376G

  • OTN OTU2 @10.7G, OTU2e @11.09G, OTU2f @11.32G

Transmitter Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameters

Symbol

Min.

Typ.

Max.

Unit

Note

Operating Date Rate

DR

8.5

10.3125

11.32

Gb/s

Optical Launch Power

Po

-8.2

+0.5

dBm

1

Optical Center Wavelength

λc

1260

1310

1355

nm

Spectral Width (-20dB)

Δλ

1

nm

Side Mode Suppression Ratio

SMSR

30

dB

Optical Extinction Ratio

ER

3.5

dB

Optical Eye Mask

IEEE802.3ae

Relative Intensity Noise

RIN

-128

dB/Hz

Differential Data Input Swing

VIN

180

850

mV

TX Disable Input Voltage-Low (TX ON)

TDISVL

GND

0.8

V

TX Disable Input Voltage-High (TX OFF)

TDISVH

2.0

Vcc

V

TX Fault Output Voltage-Low (TX Normal)

TFLTVL

GND

0.8

V

TX Fault Output Voltage-High (TX Fault)

TFLTVH

2.0

Vcc

V

Receiver Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameters

Symbol

Min.

Typ.

Max.

Unit

Note

Operating Date Rate

DR

8.5

10.3125

11.32

Gb/s

Receiver Sensitivity

PIN_min

-14.5

dBm

1

Maximum Input Power

PIN_max

+0.5

dBm

1

Optical Center Wavelength

λc

1260

1620

nm

LOS De-Assert

LOSD

-15.5

dBm

LOS Assert

LOSA

-30

dBm

LOS Hysteresis

LOSHY

0.5

dB

Differential Data Output Swing

VOUT

300

900

mV

Receiver LOS Signal Output Voltage-Low

LOSVL

GND

0.8

V

Receiver LOS Signal Output Voltage-High

LOSVH

2.0

Vcc

V

Dimension

20km SMF Lr Sfp+ Module , Ubiquiti 10g Sfp+ For FTTH FTTB FTTO Network

Product Packing

20km SMF Lr Sfp+ Module , Ubiquiti 10g Sfp+ For FTTH FTTB FTTO Network

Compatibility Test

20km SMF Lr Sfp+ Module , Ubiquiti 10g Sfp+ For FTTH FTTB FTTO Network

20km SMF Lr Sfp+ Module , Ubiquiti 10g Sfp+ For FTTH FTTB FTTO Network

Compatible Brands

20km SMF Lr Sfp+ Module , Ubiquiti 10g Sfp+ For FTTH FTTB FTTO Network

Production Flow

20km SMF Lr Sfp+ Module , Ubiquiti 10g Sfp+ For FTTH FTTB FTTO Network

For more details, welcome to inquire us freely.
