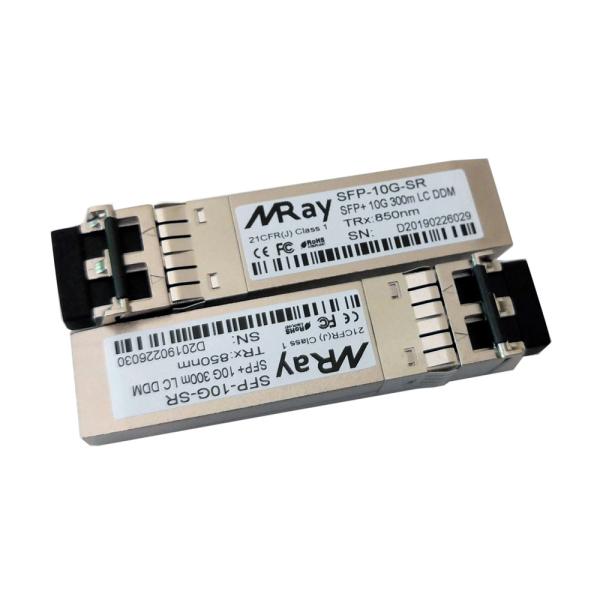

ISO9001 Cisco 10g Sfp Sr MMF Fiber type Dual LC Connector
ISO9001 Cisco 10g Sfp Sr MMF Fiber type Dual LC Connector
ISO9001 Cisco 10g Sfp Sr MMF Fiber type Dual LC Connector
ISO9001 Cisco 10g Sfp Sr MMF Fiber type Dual LC Connector
ISO9001 Cisco 10g Sfp Sr MMF Fiber type Dual LC Connector
ISO9001 Cisco 10g Sfp Sr MMF Fiber type Dual LC Connector
Specifications
Brand Name :
Mray
Model Number :
SFP-10G-SR
Certification :
CE RoHS FCC ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
USD8-12/piece
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
10pcs/plastic try, 500pcs per standard export carton
Product name :
10G Dual Fiber MM 300m LC
Rate :
10G
Connector :
Dual LC Connector
Wavelength :
850nm
Distance :
300m
Fiber type :
MMF
Application :
Telecommunication, Gigabit Ethernet, FTTH FTTB FTTO Network,
Operating temperature :
0°C to 70°C
Compatible :
Cisco, huawei, HP, Finisar
Warranty :
3 Years
Description

10Gbps SFP+ SR Multimode Fibre Module- 10GBase-SR LC Transceiver Compatible for Cisco

Description

Miray’s SFP+ SR is specifically designed for the high performance integrated duplex data transmission over multi mode optical fiber. This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1). This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-SR/SW base IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L.

Features

● Duplex LC Connector

● Support hot-pluggable
● Metal with lower EMI
● Excellent ESD protection
● VCSEL Transmitter and PIN Receiver
● Typical Center Wavelength:850nm
● Max link length up to 300m on MMF
● RoHS Compliant and Lead-Free
● Digital diagnostic compatible with SFF-8472
● Case Operation Temperature:-5℃~+70℃
● Single 3.3V power supply and Low power dissipation <1.0W

Recommended Operating Environment

Parameter

Symbol

Min.

Typ.

Max.

Unit

Notes

Power Supply Voltage

Vcc

3.13

3.30

3.47

V

Power Supply Current

Icc

-

-

300

mA

Case Operating Temperature

Top

-5

-

70

°C

Data Rate

-

-

10.3125

-

Gb/s

9/125um G652 SMF

Lmax

-

-

300

m

Baud Rate Tolerance

-100

+100

ppm

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter

Symbol

Min

Typ

Max

Note

Unit

Transmitter

Nominal Wavelength

λ

840

860

nm

Optical Output Power

Pav

-6

0.5

dBm

Extinction Ratio

ER

3

dB

Relative Intensity Noise

RIN

-128

dB/Hz

Transmitter

Center Wavelength

λC

840

860

nm

Receiver Sensitivity@8.5Gb/s

RSENSE

-11.5

1

dBm

Receiver Sensitivity@10.52Gb/s

RSENSE

-11

1

dBm

Average Receiver Power

Pavg

0.5

dBm

LOS Assert

LOSA

-30

dBm

LOS De-Assert LOS

LOSD

-12

dBm

LOS Hysteresis

0.5

dB

Dimension

ISO9001 Cisco 10g Sfp Sr MMF Fiber type Dual LC Connector

Product Packing

ISO9001 Cisco 10g Sfp Sr MMF Fiber type Dual LC Connector

Compatibility Test

ISO9001 Cisco 10g Sfp Sr MMF Fiber type Dual LC Connector

Compatible Brands

ISO9001 Cisco 10g Sfp Sr MMF Fiber type Dual LC Connector

Production Flow

ISO9001 Cisco 10g Sfp Sr MMF Fiber type Dual LC Connector
ISO9001 Cisco 10g Sfp Sr MMF Fiber type Dual LC Connector

For more details, welcome to inquire us freely.
