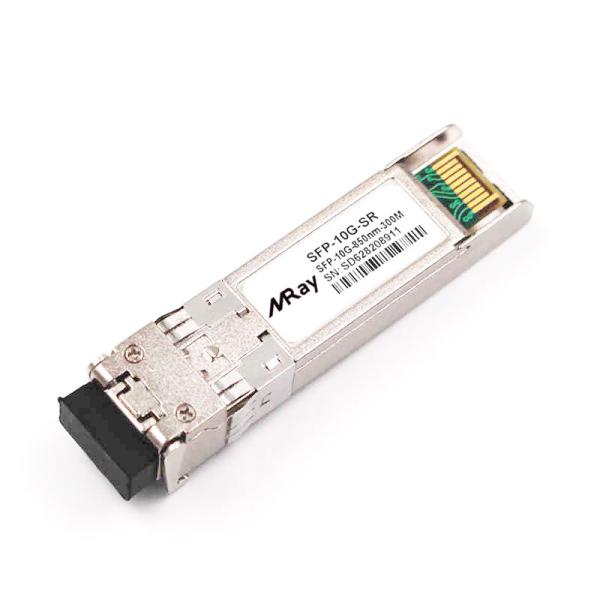

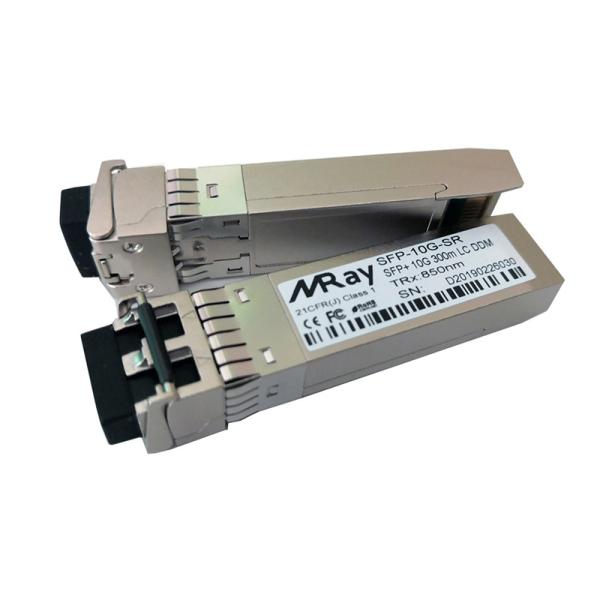

ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported
ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported
ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported
ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported
ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported
ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported
ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported
ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported
Specifications
Brand Name :
Mray
Model Number :
SFP-10G-SR
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
USD8-12/piece
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
10pcs/plastic try, 500pcs per standard export carton
Product name :
10GBASE-SR SFP+ Transceiver Module
Data Rate :
10Gb/s
Fiber type :
MMF
Connector :
Duplex LC
Working Temperature :
0~70℃
Wavelength :
850nm
Warranty :
3 Years
Application :
Telecommunication, Gigabit Ethernet, FTTH FTTB FTTO Network,
Description

SFP-10G-SR Compatible HP Extreme ARISTA Mellanox Generic 10GBASE-SR SFP+ Transceiver Module

Description

The SFP-10G-SR is a multi-rate optical transceiver module for transmission at 850nm over multimode fiber. Supporting Ethernet and Fibre Channel standards make it ideally suited for 10G datacom and storage area network applications. Its sub watt power consumption and its excellent EMI performance allow system design with high port density. The small form factor integrates an 850nm vertical cavity surface emitting laser (VCSEL) in an LC package and a PIN receiver. Module is lead free, RoHS compliant and is designed and tested in accordance with industry safety standards.

Features

  • Compatible with Part Number: SFP-10G-SR

  • Form Type: SFP+

  • Data Rate: 10G 10.3125Gbps

  • Wavelength: 850nm

  • Distance: 300m

  • Connector: Dual LC

  • Fiber Type: MMF

  • Operating Temperature: 0~70 C

  • DOM Supported: Yes

Applications

  • 10G Networking, Storage, Telecommunications
  • 10G Switches, Routers, Network Interface Card(NICs)

Recommended Operating Conditions

Parameter

Conditions

Symbol

Min.

Typical

Max.

Unit

Operating Case Temperature

altitude of < 3km

JCase

0

+70

°C

Power Supply Voltage@3.3V

Vcc3

3.135

3.30

3.465

V

DC Common Mode Voltage

Vcm

0

3.6

V

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter

Symbol

Min

Typ

Max

Note

Unit

Transmitter

Nominal Wavelength

λ

840

860

nm

Optical Output Power

Pav

-6

0.5

dBm

Extinction Ratio

ER

3

dB

Relative Intensity Noise

RIN

-128

dB/Hz

Transmitter

Center Wavelength

λC

840

860

nm

Receiver Sensitivity@8.5Gb/s

RSENSE

-11.5

1

dBm

Receiver Sensitivity@10.52Gb/s

RSENSE

-11

1

dBm

Average Receiver Power

Pavg

0.5

dBm

LOS Assert

LOSA

-30

dBm

LOS De-Assert LOS

LOSD

-12

dBm

LOS Hysteresis

0.5

dB

Product List

ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported

Dimension

ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported

Product Packing

ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported

Compatibility Test

ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported

Compatible Brands

ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported

Production Flow

ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported
ARISTA Mellanox 10gb Sfp+ Sr Transceiver Duplex LC 850nm MMF Fiber Dom Supported

For more details, welcome to inquire us freely.
