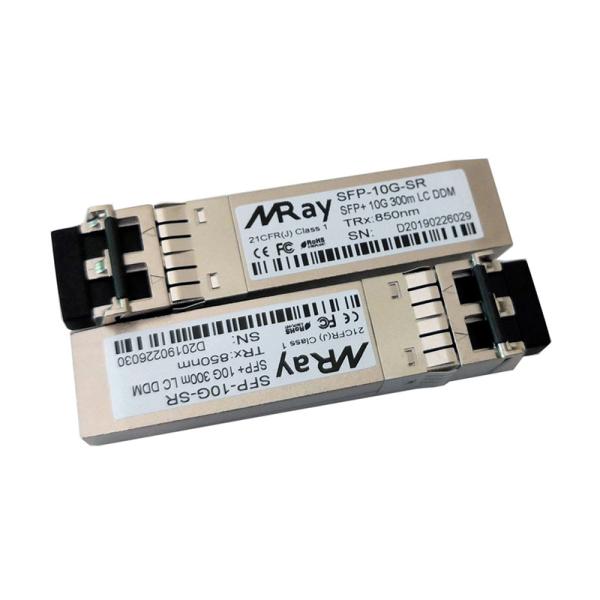

Cisco Compatible SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M
Cisco Compatible SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M
Cisco Compatible SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M
Cisco Compatible SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M
Cisco Compatible SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M
Cisco Compatible SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M
Specifications
Brand Name :
Mray
Model Number :
SFP-10G-SR
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
USD8-12/piece
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
10pcs/plastic try, 500pcs per standard export carton
Product name :
SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M
Rate :
10G
Fiber type :
MMF
Connector :
Dual LC Connector
Working Temperature :
0~70℃
Wavelength :
850nm
Warranty :
3 Years
Application :
Telecommunication, Gigabit Ethernet, FTTH FTTB FTTO Network,
Description

Cisco Compatible SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M

Description

This SFP+ transceiver allows you to connect a 50/125 multimode fiber optic cable to a 10 Gbps network router, server or switch. It transmits data up to 300 meters (984 feet) and supports bi-directional Gigabit Ethernet communication up to 11.1 Gbps. The metal housing protects against electromagnetic interference (EMI) and excessive power dissipation.

Features

  • Form Type: SFP+
  • Interface: LC duplex
  • Cable Type: MMF
  • Wavelength: 850nm
  • Max Cable Distance: 300m @ OM3 MMF
  • Power Consumption: 1.5W
  • Total Loss Budget: 1.9dB at OM3
  • DOM Support: Yes
  • Commercial Temperature Range: 0 to 70°C (32 to 158°F)

Applications

  • 10G Networking, Storage, Telecommunications
  • 10G Switches, Routers, Network Interface Card(NICs)

General Specifications

Parameter

Symbol

Min

Typ

Max

Units

Ref.

Bit Rate

BR

8.5

10.52

Gb/s

1

Bit Error Ratio

BER

10e-12

2

Max. Supported Link Length

LMAX

300

m

1

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter

Symbol

Min

Typ

Max

Note

Unit

Transmitter

Nominal Wavelength

λ

840

860

nm

Optical Output Power

Pav

-6

0.5

dBm

Extinction Ratio

ER

3

dB

Relative Intensity Noise

RIN

-128

dB/Hz

Transmitter

Center Wavelength

λC

840

860

nm

Receiver Sensitivity@8.5Gb/s

RSENSE

-11.5

1

dBm

Receiver Sensitivity@10.52Gb/s

RSENSE

-11

1

dBm

Average Receiver Power

Pavg

0.5

dBm

LOS Assert

LOSA

-30

dBm

LOS De-Assert LOS

LOSD

-12

dBm

LOS Hysteresis

0.5

dB

Product List

Cisco Compatible SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M

Dimension

Cisco Compatible SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M

Product Packing

Cisco Compatible SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M

Compatibility Test

Cisco Compatible SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M

Compatible Brands

Cisco Compatible SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M

Production Flow

Cisco Compatible SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M
Cisco Compatible SFP-10G-SR-S SFP+ Transceiver DDM Multimode LC 850nm 300M

For more details, welcome to inquire us freely.
