Specifications
Brand Name :
Mray
Model Number :
SFP-GE-BX20-SM1310/1550
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
10pcs/plastic try, 500pcs per standard export carton
Product name :
Gigabit 20Km DDM BIDI Mini Gbic SFP SM 1.25G Optical Tranceiver Module
Rate :
1.25G
Connector :
Simplex LC Connector
Wavelength :
1310nm/1550nm
Distance :
20km
Fiber type :
SMF
Application :
Telecommunication, Gigabit Ethernet, FTTH FTTB FTTO Network,
Warranty :
3 Years
Description

SFP Module 1.25G Bidi Single Fiber Transceiver 1310nm/1550nm SMF LC Connector up to 20 km

Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 20Km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integratedwith a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safetyrequirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. Forfurther information, please refer to SFP MSA.

Features

  • Up to 1.25Gb/s Data Links

  • Single LC connector

  • Up to 20 km on 9/125μm SMF

  • 1310nm FP laser transmitter

  • 1550nm PIN photo-detector

  • Single +3.3V Power Supply

  • Monitoring Interface Compliant with SFF-8472

  • Maximum Power <1W

  • Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available

  • RoHS compliant and Lead Free

Recommended Operating Environment

Parameter

Symbol

Min

Typical

Max

Unit

Operating Case Temperature

Standard Tc

0

25

70

°C

Power Supply Voltage

Vcc

3.13

3.3

3.47

V

Power Supply Current

Icc

300

mA

Power Dissipation

PD

800

1200

mW

Data Rate

DR

1.25

Gbps

Transmission Distance

TD

20

km

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter

Symbol

Min.

Typical

Max.

Unit

Note

Transmitter Section:

Center Wavelength

λc

1270

1310

1600

nm

Spectral Width(RMS)

σRMS

4

nm

Optical Output Power

Pout

-9

-3

dBm

1

Extinction Ratio

ER

9

dB

Optical Rise/Fall Time

tr / tf

260

ps

2

Relative Intensity Noise

RIN

-120

dB/Hz

Total Jitter Contribution

TX Δ TJ

0.284

UI

3

Eye Mask for Optical Output

Compliant with IEEE802.3 z (class 1 laser safety)

Receiver Section:

Optical Input Wavelength

λc

1530

1550

1570

nm

Receiver Overload

Pol

-3

dBm

4

RX Sensitivity

Sen

-24

dBm

4

RX_LOS Assert

LOS A

-40

dBm

RX_LOS De-assert

LOS D

-25

dBm

RX_LOS Hysteresis

LOS H

0.5

dB

General Specifications:

Data Rate

BR

1.25

Gb/s

Bit Error Rate

BER

10-12

Max. Supported Link Length on 9/125μm SMF@1.25Gb/s

LMAX

20

km

Total System Budget

LB

14

dB

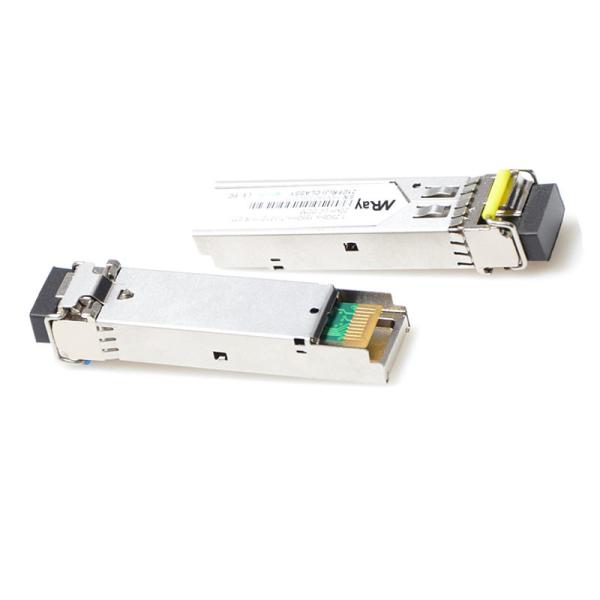

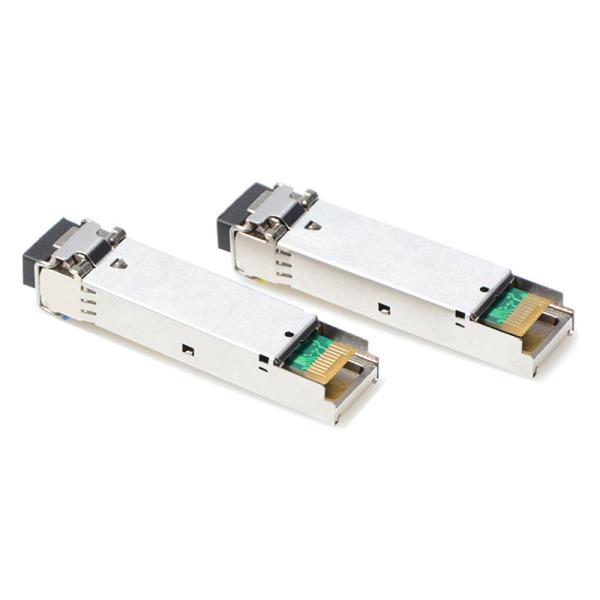

Product Show

BIDI Sfp Lc Transceiver , BX20 Sm Sfp Module 20Km For Gigabit EthernetBIDI Sfp Lc Transceiver , BX20 Sm Sfp Module 20Km For Gigabit Ethernet

Dimension

BIDI Sfp Lc Transceiver , BX20 Sm Sfp Module 20Km For Gigabit Ethernet

Product Packing

BIDI Sfp Lc Transceiver , BX20 Sm Sfp Module 20Km For Gigabit Ethernet

Compatibility Test

BIDI Sfp Lc Transceiver , BX20 Sm Sfp Module 20Km For Gigabit Ethernet

Compatible Brands

BIDI Sfp Lc Transceiver , BX20 Sm Sfp Module 20Km For Gigabit Ethernet

Production Flow

BIDI Sfp Lc Transceiver , BX20 Sm Sfp Module 20Km For Gigabit Ethernet
BIDI Sfp Lc Transceiver , BX20 Sm Sfp Module 20Km For Gigabit Ethernet

For more details, welcome to inquire us freely.
