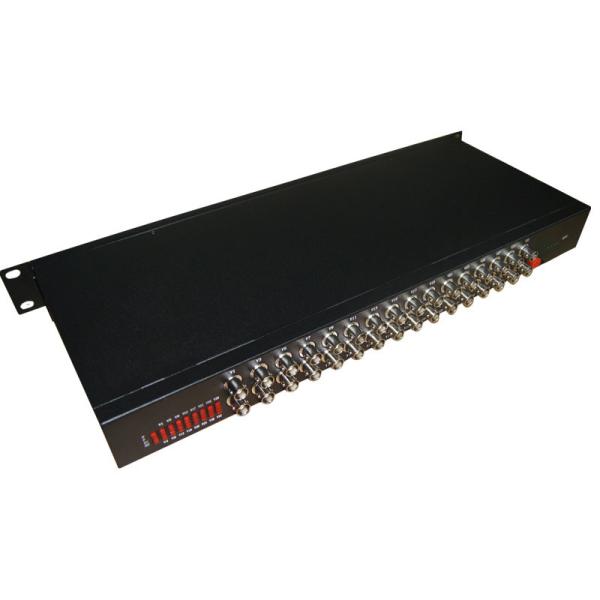

32 Channels Fiber Optic Video Converter RS485 RS422 to Fiber FC Connector
32 Channels Fiber Optic Video Converter RS485 RS422 to Fiber FC Connector
32 Channels Fiber Optic Video Converter RS485 RS422 to Fiber FC Connector
32 Channels Fiber Optic Video Converter RS485 RS422 to Fiber FC Connector
32 Channels Fiber Optic Video Converter RS485 RS422 to Fiber FC Connector
32 Channels Fiber Optic Video Converter RS485 RS422 to Fiber FC Connector
Specifications
Brand Name :
Mray
Model Number :
MR-32V1D-F20
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 pair
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
1pcs/box, 40pcs per standard export carton
Product name :
32 Channels Video Data RS485 RS422 To Fiber Converter
BNC port :
32Ch BNC port
Distance :
0~80km (Optional)
Connector :
FC/SC
Application :
FTTH FTTB FTTX Network
Warranty :
3 Years
Data :
1CH RS485
Operating temperature :
0~70'C(Standard)
Description

32 Channels Video Data RS485 RS422 To Fiber Converter Video Fiber Converter

Description

Miray's 32 channels fiber-optic video transceivers can simultaneously transmit 32 channels of 8-bit digitally encoded video / return or bidirectional data / unidirectional or bidirectional audio / Ethernet / Telephone / Dry contact over one multimode or single-mode optical fiber. These multiplexers are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment .

Features​

  • 8/10 bits digitally encoded video transmission of high quality over a single fiber
  • Compatible with NTSC, PAL, and SECAM Video Standards, auto compatible
  • Surface mount technology
  • Integrated Wavelength Division Multiplexing (WDM) in a Single Fiber
  • Multimode Fiber Support for Distances up to3km
  • Single-Mode Fiber Support for Distances up to 20-120 km
  • LED indicators for monitoring of system operating status
  • Immune to EMI, RFI, cross talk and video distoration
  • Surge protection against transient surge and over voltage
  • Automatic re-settable fuses, short circuit protection
  • No user adjustments required
  • Laser Diode for Transmission of Optical Signals
  • Industry-grade of operating temperature from -10 to 75 degrees, which is applied to the different working environment
  • Hot-swap function

Application

  • Smart Buildings
  • Intelligent Transportation System
  • Security and Surveillance, CCTV System
  • Access Contral
  • Connection of Sub-network for Surveillance Center
  • High Way & Toll Station Surveillance
  • High Quality Video Conference
  • Industrial Closed Circuit Television Surveillance

Technical Specification

VIDEO CHARACTERISTICS

Video interface number

1-64 channel video

Bandwidth of video

5MHz-7.5 MHz

Video input / output impedance

75 Ω(imbalance)

Differential gain

(10%-90%APL) DG <1% ( typical value)

Differential phase

(10%-90%APL) DP <0.7° ( typical value)

Automatic compatible video system

PAL SECAM NTSC

Weighted signal-to-noise ratio

S/N ≥ 70dB

AUDIO CHARACTERISTICS

Interface port

RJ-45 Lotus Block industrial standard port

Audio input / output impedance

600Ω (Balance/Imbalance)

Audio input / output voltage

2Vpp ( typical value)

Audio input / output level

0 dbm ( typical value)

Audio Bandwidth

10Hz~20kHz

Audio Digital Bandwidth

24 bit

Audio signal-to-noise ratio

S/N≥95dB (weighted)

DATA CHARACTERISTICS

Interface Port

RJ-45 industrial standard port

Interface Signal Type

RS485/RS422/RS232/Manchester

Code rate

0~400Kbps

BER

≤ 10-9

ETHERNET CHARACTERISTICS

Interface Port

RJ45

Duplex

Full duplex/half duplex

Supporting agreements

IEEE802.3,10M,10/100M automatic negotiation

TELEPHONE CHARACTERISTICS

Interface Port

RJ11

Bandwidth of telephone

8KHZ

Special functions

Support call-showing function;support H-F

Operating mode

Point-point hot line mode/program-controlled exchange mode

OTHER NORMAL CHARACTERISTICS

MTBF

≥ 105 hours

Operating Temperature

-40℃ ~ 85℃

Humidity

0~95% non-condensing

Operating Voltage

Input:AC220v or DC-48V/24V ; Output:DC 5V/2A

OPTICAL CHARACTERISTICS

Fiber connector

FC /SC /ST

Transmission distance

0-100KM

Wavelength

1310/1550μm

EXTERNAL DIMENSIONS

Wall-link-type (stand alone)

1-channel Mini-type:11.1(L)×10.7(W)×2.8(H) cm

1-4 channel : 19.2(L)×17.3(W)×2.8(H) cm

5-8 channel : 19.2(L)×17.3(W)×5.6(H) cm

Rack-mount chassis Type

9-16 channel : 48.3(L)×18(W)×4.4(H) cm

Ordering Information

Model

Description

MR-16V-F20

Fiber Video Converter,single

mode single fiber , 16CH video, 20KM, FC, Iron,

1V↑

MR-16V1D-F20

Fiber Video Converter,single

mode single fiber, 16CH video+ reverse data,

20KM, FC, Iron, 1V↑+1D↓

MR-32V-F20

Fiber Video Converter,single

mode single fiber , 32CH video, 20KM, FC, Iron,

1V↑

MR-32V1D-F20

Fiber Video Converter,single

mode single fiber, 32CH video+ reverse data,

20KM, FC, Iron, 1V↑+1D↓

Product Show


32 Channels Fiber Optic Video Converter RS485 RS422 to Fiber FC Connector

Connection

32 Channels Fiber Optic Video Converter RS485 RS422 to Fiber FC Connector

Product Details

32 Channels Fiber Optic Video Converter RS485 RS422 to Fiber FC Connector

Power Adapters

32 Channels Fiber Optic Video Converter RS485 RS422 to Fiber FC Connector

Video Application

32 Channels Fiber Optic Video Converter RS485 RS422 to Fiber FC Connector

Production Flow

32 Channels Fiber Optic Video Converter RS485 RS422 to Fiber FC Connector


For more details, welcome to inquire us freely.
