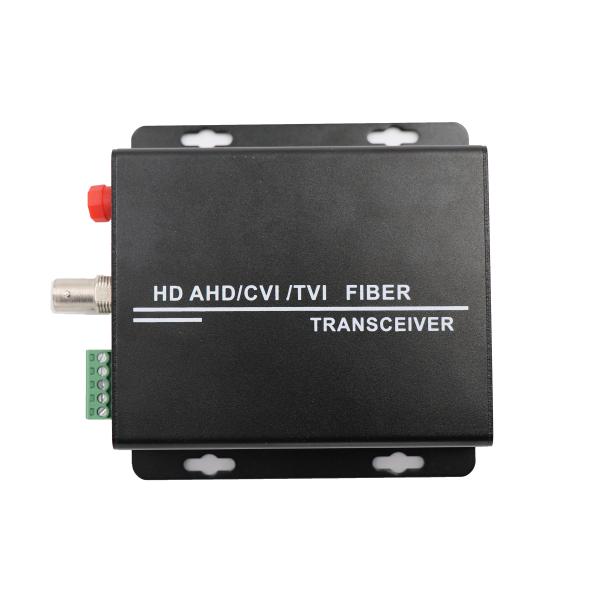

1-16Ch Optical Transmitter And Receiver 80km Distance Steel Material

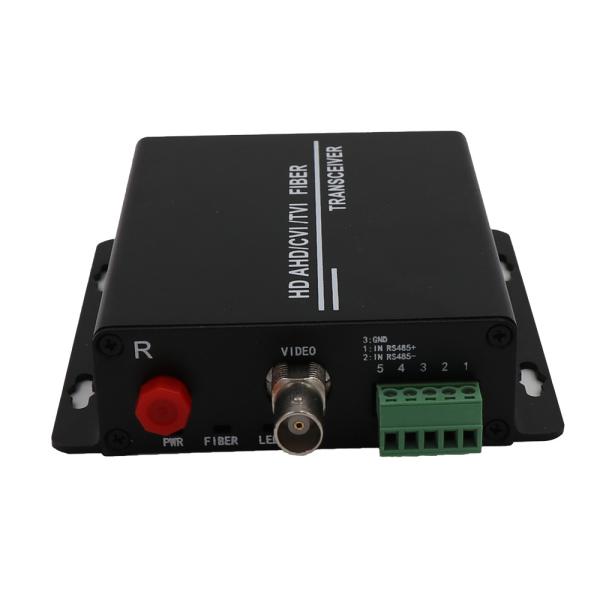

1-16Ch Optical Transmitter And Receiver 80km Distance Steel Material

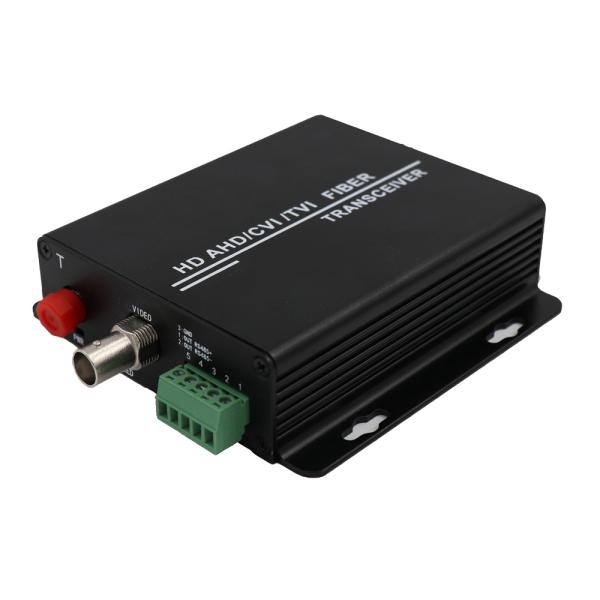

1-16Ch Optical Transmitter And Receiver 80km Distance Steel Material

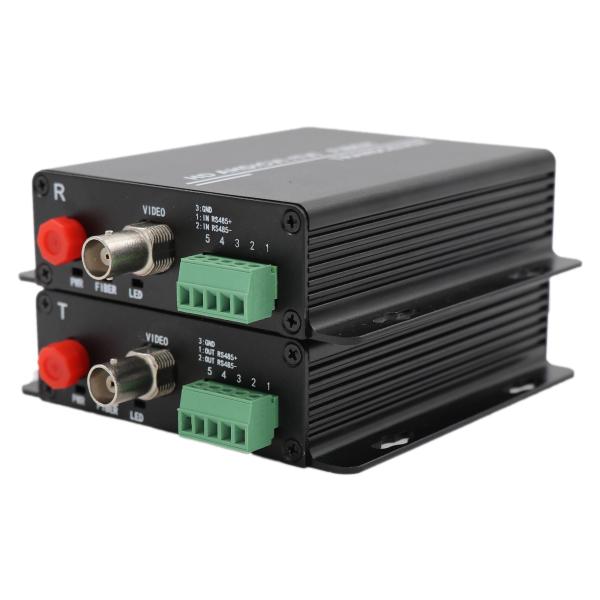

1-16Ch Optical Transmitter And Receiver 80km Distance Steel Material
1-16Ch Optical Transmitter And Receiver 80km Distance Steel Material
1-16Ch Optical Transmitter And Receiver 80km Distance Steel Material
1-16Ch Optical Transmitter And Receiver 80km Distance Steel Material
1-16Ch Optical Transmitter And Receiver 80km Distance Steel Material
Specifications
Brand Name :
Mray
Model Number :
MR-1V1D-F20-720P
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 pair
Price :
USD25-30/pair
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
1pcs/box, 40pcs per standard export carton
Product name :
1Ch HDCVI/TVI Video Fiber Optic Converter
Distance :
20~80km
Wavelength :
1310/1550nm
Case Material :
Steel
Automatic compatible video system :
PAL, NTSC, SECAM
Operating temperature :
0℃ to +70℃
Power adapter :
external power adapter
Connector :
FC ST SC
BNC port :
1Ch BNC port
Warranty :
3 Years
Description

1-16Ch HDCVI/TVI Video Fiber Optic Transmitters Receivers/720P 1080P HDTVI Fiber video converter

Description

Miray this converter can simultaneously transmit 1ch HD-CVI/TVI/AHD over one multimode or single-mode optical fiber. LED indicates instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It is without loss and non-compression real time transmission.

Features​

  • Non-compression coding technology;
  • Automatically identify formats of input videos;
  • Support 1ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable;
  • DC 5V power supply;
  • Support 720p/25,720p/30,720p/50,720p/60,960p,1080p/25,1080p/30 video etc;
  • Through LED indicators to inform its functional mode;
  • Industrial wide range of operational temperature;
  • Plug and play, simple installation

Technical Specification

Feature

Description

optical

Fiber Type

Multi-mode fiber or Single mode fiber

Fiber Connector

FC/ST/SC

Distance

0~80km (Optional)

Wavelength

Transmitter

Tx1310nm, Rx1550nm

Receiver

Tx1550nm,Rx1310nm.

Tx

Input level

>500mVp-p

self-adaption cable equilibrium

1080p:75-5

coaxial cable,300m

720p:75-5 coaxial cable,500m

Input/Output Impe

75Ω

Physical Interface

1/2/4/8/16channel BNC connector

Rx

Output level

1Vp-p

Input/Output Impedance

75Ω

Physical Interface

1/2/4/8/16 channel BNC connector

Data

RS485 Protocol

RS485

Data Rate

0~200Kbps

Bit Error Rate

< 10-9

Connector

Standard Terminal Block

General

EPS

DC5V

Power Consumption

≤5W

Operation temperature

-40℃~+85℃

Operation Humidity

10%～90%

Atmospheric Pressure

86kpa~106kpa

Mounting Method

Wall-mounted


Ordering Information

Model

Description

MR-1V-F20-720P

720P AHD/TVI/CVI Fiber Video Converter,single

mode single fiber , 1CH video, 20KM, FC, Iron,

1V↑

MR-1V1D-F20-720P

720P AHD/TVI/CVI Fiber Video Converter,single

mode single fiber, 1CH video+ reverse data,

20KM, FC, Iron, 1V↑+1D↓

MR-1V-F20-1080P

1080P AHD/TVI/CVI Fiber Video Converter,single

mode single fiber , 1CH video, 20KM, FC, Iron,

1V↑

MR-1V1D-F20-1080P

1080P AHD/TVI/CVI Fiber Video Converter,single

mode single fiber, 1CH video+ reverse data,

20KM, FC, Iron, 1V↑+1D↓

Product Show


1-16Ch Optical Transmitter And Receiver 80km Distance Steel Material

Connection

1-16Ch Optical Transmitter And Receiver 80km Distance Steel Material

Product Details

1-16Ch Optical Transmitter And Receiver 80km Distance Steel Material

Power Adapters

1-16Ch Optical Transmitter And Receiver 80km Distance Steel Material

Video Application

1-16Ch Optical Transmitter And Receiver 80km Distance Steel Material

Production Flow

1-16Ch Optical Transmitter And Receiver 80km Distance Steel Material


For more details, welcome to inquire us freely.
