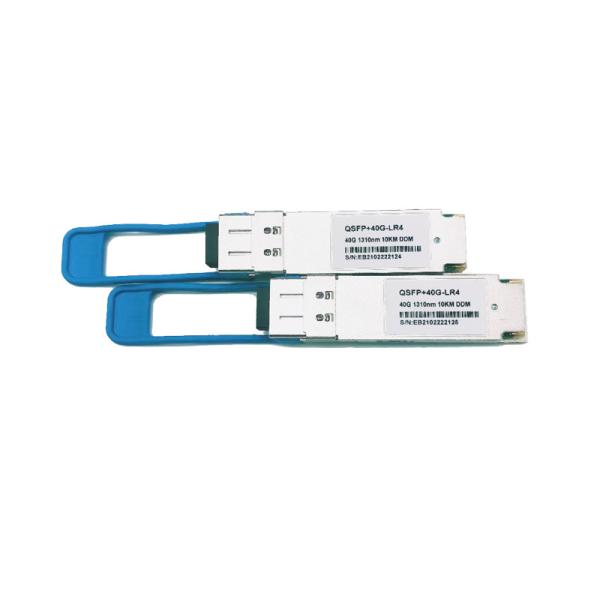

40g Qsfp LR4 Single Mode Fiber QSFP Transceiver Module MSA Compliant CWDMx4

Description

Miray QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The transceiver is RoHS-6 compliant and lead-free per Directive 2011/65/EU, and Application Note AN-2038.

Features

• Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard
• QSFP+ MSA compliant
• Compliant with QDR/DDR Infiniband data rates
• Up to 11.2Gb/s data rate per wavelength
• 4 CWDM lanes MUX/DEMUX design
• Up to 10km/2km transmission on single mode fiber (SMF)
• Operating case temperature: 0 to 70℃
• Maximum power consumption 3.5W
• RoHS compliant

Application

  • 40G Ethernet
  • Infiniband QDR, DDR and SDR
  • Datacenter and Enterprise networking

Recommended Operating Environment

Parameters

Symbol

Min.

Typ.

Max.

Unit

Case Operating Temperature

TOP

0

-

+70

°C

Supply Voltage

VCC

+3.13

+3.3

+3.47

V

Data Rate, per lane

DR

10.3125

11.2

Gb/s

Data Rate Accuracy

ΔDR

-100

+100

ppm

Bit Error Rate

BER

10-12

Supply Current

ICC

1000

mA

Power Consumption

P

2.5

3.5

W

Transceiver Power-on Initialization Time

2000

ms

Control Input Voltage High

VIH

2.0

Vcc

V

Control Input Voltage Low

VIL

GND

0.7

V

Control Output Voltage High

VOH

2.0

Vcc

V

Control Output Voltage Low

VOL

GND

0.7

V

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Optical Transmitter Performance

Parameters

Symbol

Min.

Typ.

Max.

Unit

Note

Operating Date Rate, per Lane

DR

10.3125

11.2

Gb/s

Total Average Launch Power

TPAVG

+8.3

dBm

Average Launch Power, per Lane

PAVG

-7.0

+2.3

dBm

Optical Modulation Amplitude (OMA), per lane

POMA

-5.0

+3.5

dBm

1

Difference in Launch Power between any two Lanes (OMA)

PTX-DIFF

6.5

dB

Transmitter Dispersion Penalty, per Lane

TDP

2.3

dB

Launch Power in OMA minus Transmitter

and Dispersion Penalty (TDP), per Lane

OMA-

TDP

-4.8

dB

Optical Wavelength, each Lane

λL0

1264.5

1271

1277.5

nm

λL1

1284.5

1291

1297.5

nm

λL2

1304.5

1311

1317.5

nm

λL3

1324.5

1331

1337.5

nm

Spectral Width (-20dB)

Δλ

1

nm

Side Mode Suppression Ratio

SMSR

30

dB

Optical Extinction Ratio

ER

3.5

dB

Optical Eye Mask { X1, X2, X3, Y1, Y2, Y3 }

{ 0.25, 0.4, 0.45, 0.25, 0.28, 0.4 }

2

Average Launch Power OFF, per Lane

POFF

-30

dBm

Relative Intensity Noise (OMA)

RIN

-128

dB/Hz

Optical Return Loss Tolerance

ORLT

12

dB

Transmitter Reflectance

RTX

-12

dB

Input Differential Impedance

ZIN

85

100

115

Ω

Differential Data Input Voltage

VIN-PP

150

1200

mVpp

Optical Receiver Performance

Parameters

Symbol

Min.

Typ.

Max.

Unit

Note

Operating Date Rate, per Lane

DR

10.3125

11.2

Gb/s

Damage Threshold, per Lane

DTH

+3.3

dBm

1

Average Receive Power, per Lane

PRX-AVG

-13.7

+2.3

dBm

Receiver Power (OMA), per Lane

PRX-OMA

+3.5

dBm

Receiver Sensitivity (OMA), per Lane

SENAVG

-11.5

dBm

2

Stressed Receiver Sensitivity (OMA), per Lane

SENSOMA

-9.9

dBm

3

Receiver Reflectance

RRX

-26

dB

LOS De-Assert

LOSD

-15

dBm

LOS Assert

LOSA

-30

dBm

LOS Hysteresis

LOSHY

0.5

dB

Receiver Electrical 3dB upper Cutoff Frequency, per Lane

FCUT

12.3

GHz

Output Differential Impedance

ZOUT

85

100

115

Ω

Differential Data Output Voltage

VOUT-PP

370

600

950

mVpp

Connection

40g Qsfp LR4 Single Mode Fiber QSFP Transceiver Module MSA Compliant CWDMx4

Dimension

40g Qsfp LR4 Single Mode Fiber QSFP Transceiver Module MSA Compliant CWDMx4

Product Packing

40g Qsfp LR4 Single Mode Fiber QSFP Transceiver Module MSA Compliant CWDMx4

Compatibility Test

40g Qsfp LR4 Single Mode Fiber QSFP Transceiver Module MSA Compliant CWDMx4

Compatible Brands

40g Qsfp LR4 Single Mode Fiber QSFP Transceiver Module MSA Compliant CWDMx4

Production Flow

40g Qsfp LR4 Single Mode Fiber QSFP Transceiver Module MSA Compliant CWDMx4
