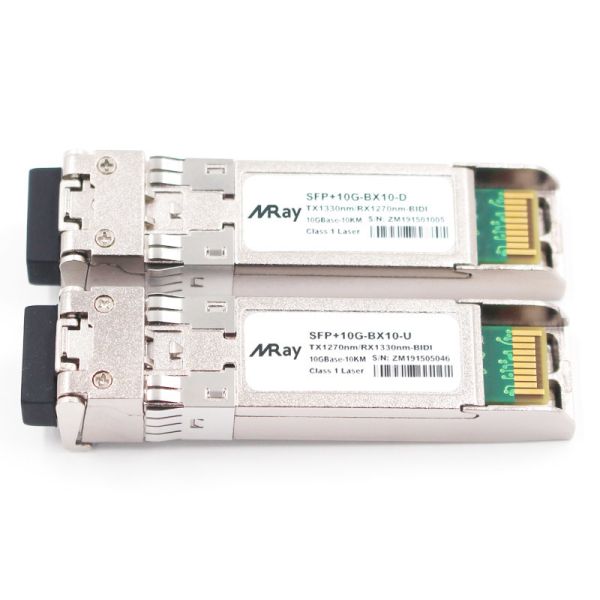

1330nm Sfp+ Optical Transceiver Shortwave Bidirectional DDM Simplex LC
1330nm Sfp+ Optical Transceiver Shortwave Bidirectional DDM Simplex LC
1330nm Sfp+ Optical Transceiver Shortwave Bidirectional DDM Simplex LC
1330nm Sfp+ Optical Transceiver Shortwave Bidirectional DDM Simplex LC
1330nm Sfp+ Optical Transceiver Shortwave Bidirectional DDM Simplex LC
1330nm Sfp+ Optical Transceiver Shortwave Bidirectional DDM Simplex LC
1330nm Sfp+ Optical Transceiver Shortwave Bidirectional DDM Simplex LC
1330nm Sfp+ Optical Transceiver Shortwave Bidirectional DDM Simplex LC
Specifications
Brand Name :
Mray
Model Number :
SFP-10G-BX10-SM1270/1330
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
USD25-35/piece
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
10pcs/plastic try, 500pcs per standard export carton
Product name :
10G BiDi 10km SFP+ Transceiver Module
Rate :
10G
Connector :
simplex LC
Wavelength :
1270/1330nm
Distance :
10km
Fiber type :
SMF
Application :
Telecommunication, Gigabit Ethernet, FTTH FTTB FTTO Network,
Operating temperature :
0°C to 70°C
Description

10G BiDi 10km DDM LC 1270nm/1330nm SFP+ Optical Transceiver Module

Description

Miray’ SFP-10G-BX10-SM1270 & SFP-10G-BX10-SM1330 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.

Features

  • Supports 9.95Gb/s to 11.3Gb/s bit rates

  • Hot-pluggable SFP+ footprint

  • Single LC for Bi-directional Transmission

  • Maximum link length of 10km

  • Built-in 1270/1330 WDM Filter

  • Uncooled 1270nm or 1330nm CWDM DFB Laser.

  • Power dissipation <1.5W

  • No Reference Clock required

  • Built-in digital diagnostic functions

  • Temperature range 0°C to 70°C

  • Very low EMI and excellent ESD protection

  • RoHS Compliant Part

Applications

  • 10GBASE-LR/LW Ethernet
  • SONET OC-192 / SDH
  • 10G Fibre Channel

Recommended Operating Environment

Parameter

Symbol

Min.

Typical

Max.

Unit

Case operating Temperature

TC

-5

+70

°C

Supply Voltage

VCCT, R

+3.135

+3.465

V

Supply Current

ICC

450

mA

Power Dissipation

PD

1.5

W

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Bit Rate BR 9.9 11.3 Gb/s
Optical Wavelength SFP-10G-BX10-SM1270 λ 1260 1270 1280 nm
SFP-10G-BX10-SM1330 1320 1330 1340
Average output power Po -6 -1 dBm
Optical Extinction Ratio ER 3.5 dB
Spectral width Δλ 1 nm
Side Mode Suppression Ratio SMSR 30 dB
Optical Eye Mask Compliant with IEEE802.3ae
Receiver
Bit Rate BR 9.9 11.3 Gb/s
Optical Wavelength SFP-10G-BX10-SM1270 λ 1320 1330 1340 nm
SFP-10G-BX10-SM1330 1260 1270 1280
Receiver Sensitivity Sen -14.5 dBm 1
Maximum Input Power PMAX 0 dBm
LOS De-Assert LOSD -15 dBm
LOS Assert LOSA -25 dBm
LOS Hysteresis LOSH 0.5 4 dB

Dimension

1330nm Sfp+ Optical Transceiver Shortwave Bidirectional DDM Simplex LC

Product Packing

1330nm Sfp+ Optical Transceiver Shortwave Bidirectional DDM Simplex LC

Compatibility Test

1330nm Sfp+ Optical Transceiver Shortwave Bidirectional DDM Simplex LC

Compatible Brands

1330nm Sfp+ Optical Transceiver Shortwave Bidirectional DDM Simplex LC

Production Flow

1330nm Sfp+ Optical Transceiver Shortwave Bidirectional DDM Simplex LC
1330nm Sfp+ Optical Transceiver Shortwave Bidirectional DDM Simplex LC

For more details, pls click here to download datasheet. 10G BIDI 20km 1270(1330).pdf
