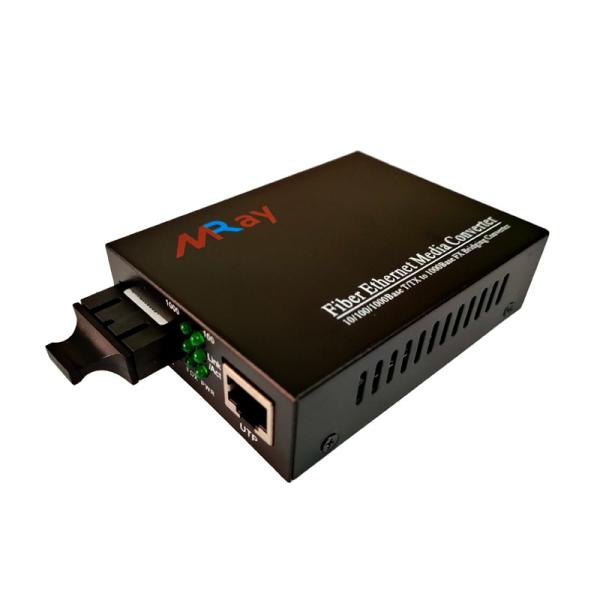

SC Dual Fiber Media Converter , 100Mbps Gigabit Media Converter Single Mode
SC Dual Fiber Media Converter , 100Mbps Gigabit Media Converter Single Mode
SC Dual Fiber Media Converter , 100Mbps Gigabit Media Converter Single Mode
SC Dual Fiber Media Converter , 100Mbps Gigabit Media Converter Single Mode
SC Dual Fiber Media Converter , 100Mbps Gigabit Media Converter Single Mode
SC Dual Fiber Media Converter , 100Mbps Gigabit Media Converter Single Mode
Specifications
Brand Name :
Mray
Model Number :
MR-101S20
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 pair
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/week
Delivery Time :
1~2 days for samples
Packaging Details :
1pcs/box, 40pcs per standard export carton
Product name :
Media Converter Ethernet To Fiber Optic Single Mode
Data rate :
10/100Mbps
Fiber Type :
Dual Fiber
Distance :
0~120km
Wavelength :
1310nm
Operating temperature :
0℃ to +70℃
Connector :
SC
Warranty :
3 Years
Description

10/100Mbps Media Converter Ethernet To Fiber Optic Single Mode

Description

Miray Media Converter converts the copper UTP media to the multimode or single mode fiber with duplex SC, ST, and LC interface. The equipped auto-negotiation function enables the media converters to operate at 10 or 100Mbps copper Ethernet or Fast Ethernet and the 100Mbps fiber. This conversion complies with IEEE802.3 and IEEE802.3u standards with two different network connection media, 10/100Base-TX and 100Base-FX. The data transmission is realized by switching and store-and-forward technologies.

Features​

  • Special used for exchanging between Ethernet LAN cable and Fiber.
  • Special maded chip with low consumption,supporting over longtime frame.
  • Superior Photoelectric integrated module which provide good optical and electrical performance.
  • Ensure the reliability of data transmitting,long operating life span.

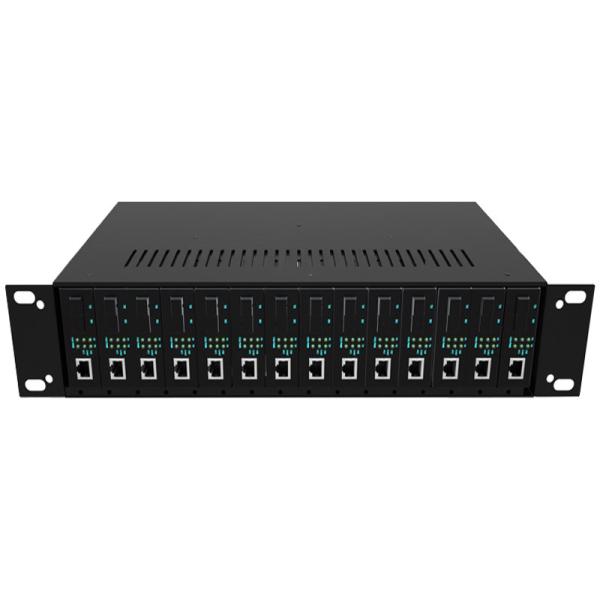

  • Support Internal and External:1.5U rack mount,optional installation method.
  • Average of No trouble working time to 50000 hours,meet the ITU-T standard.
  • Integrated after selling services, 3 years warranty, lifetime Maintenance Service.

Application

  • Access Control Systems
  • Building and Environmental Control Systems
  • Tamper Switch
  • 10/100Mbps Ethernet Media Converter
  • High Speed Computer Links

Technical Specification

Rate

self-adaptive 10/100M

Protocol supported

IEEE802.3/IEEE802.3U etc.

Cable type

single / dual fiber

Optic mode

single / multimode

Transmission mode

half / full duplex

Ethernet interface

RJ-45

Optic interface

SC/FC/ST

Storage humidity

5%~95%(no-condensing)

Optic wavelength

850nm, 1310nm, 1550nm

BER

< 1/1000000000

MTBF

3 years

Power

5W

Working temperature

0~50°C

Working humidity

5%-95%

Power supply

DC5V/1A AC220V/0.5A, DC-48V/0.5A

Storage temperature

0°C~70°C

Ordering Information

Part Number

Description

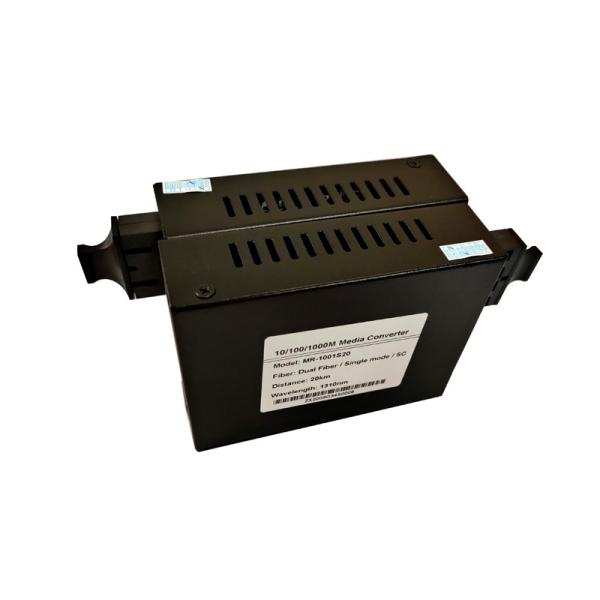

MR-101S20 10/100M Dual fiber SM 20KM SC External Power Supply

MR-101S20AB

10/100M Single fiber SM 20KM SC External Power Supply

MR-101S40AB

10/100M Single fiber SM 40KM SC External Power Supply

MR-101S60AB

10/100M Single fiber SM 60KM SC External Power Supply

MR-101S80AB

10/100M Single fiber SM 80KM SC External Power Supply


Application


SC Dual Fiber Media Converter , 100Mbps Gigabit Media Converter Single Mode

Connection

SC Dual Fiber Media Converter , 100Mbps Gigabit Media Converter Single Mode

Product Details

SC Dual Fiber Media Converter , 100Mbps Gigabit Media Converter Single Mode

Installation

SC Dual Fiber Media Converter , 100Mbps Gigabit Media Converter Single Mode

Power Adapters

SC Dual Fiber Media Converter , 100Mbps Gigabit Media Converter Single Mode

Reliablity Assurance

SC Dual Fiber Media Converter , 100Mbps Gigabit Media Converter Single Mode

For more details, welcome to inquire us freely.
