Industrial Poe Switch Din Rail Mount Type FE 100Mbps DC 10-52V
Industrial Poe Switch Din Rail Mount Type FE 100Mbps DC 10-52V
Industrial Poe Switch Din Rail Mount Type FE 100Mbps DC 10-52V
Industrial Poe Switch Din Rail Mount Type FE 100Mbps DC 10-52V
Industrial Poe Switch Din Rail Mount Type FE 100Mbps DC 10-52V
Industrial Poe Switch Din Rail Mount Type FE 100Mbps DC 10-52V
Specifications
Brand Name :
Mray
Model Number :
MR-I1F2T-SC20
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/week
Delivery Time :
1~2 days for samples
Packaging Details :
1pcs/box, 30pcs per standard export carton
Product name :
10/100M Fiber Switch 2 RJ45 Ports
Data rate :
100Mbps
Installation :
DIN Rail Type
Ports :
2 RJ45 Ports
Warranty :
5 Years
Power supply :
DC 10-52V
Application :
Network,transportation,Telecommunication
Working temperature :
-40°~ 85°C
Description

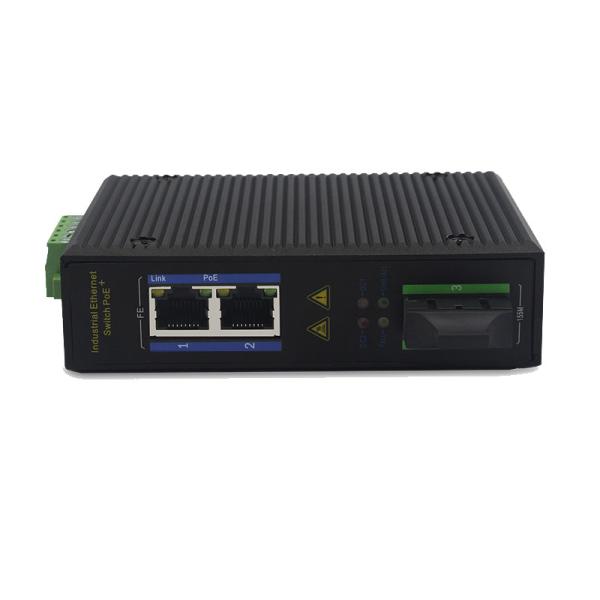

Industrial Rail Type FE Fiber Media Converter 10/100M Fiber Switch 2 RJ45 Ports

Description

MR-I1F2T-SC20 is an industrial-grade Ethernet switch. It provides with 1 100base-FX optical fiber port and 2 10/100base-T(X) Ethernet ports, which is used for data communication between 100Base-T(X) twisted pair cable and 100Base-FX optical fiber cable. It is the best choice for intelligent residential area or optical fiber to desktop connector. The transmission rate is 10/100Mbps, auto negotiation. This switch extends the network transmission distance from 100m by twisted pair to more than thousands of meters, which can easily realize the interconnection between mainboard server, repeater, hub, terminals. It adopts industrial design, fanless; It is low power consumption, and with good EMC protection; The working temperature is from - 40 ℃ - 85 ℃. It supports reverse polarity protection. MR-I1F2T-SC20 can be widely used in the field of electric power, rail transportation, intelligent transportation, mineral energy, industrial automation industry, etc.

Features

​

  • Industrial Ethernet series, designed for harsh industrial environments
  • Electrical connector (RJ45 connector) to support 10/100M adaptive, full/half duplex mode, MDI/MDI-X auto-detect
  • Optical interface supports dual-fiber multi-mode, dual-fiber single-mode, single-mode single fiber three kinds of optical fiber transmission modes, SC/ST/FC interface, optional
  • Support the transmission of VLAN long packets. Can be matched with the switch device that supports IEEE802.1Q, support up to 10240 byte Ethernet packets;
  • Support a wide range of AC and DC input
  • Power Support overload protection, anti-reverse protection
  • Meet industry four electromagnetic compatibility requirements
  • Super Lightning features: lightning, high pressure resistant sensors, anti-surge, etc.
  • Fanless cooling efficiency, reduce repair time
  • IP40 enclosure protection rating, can withstand the test of harsh environments
  • Rail or wall mounting
  • Wide temperature range: Operating temperature -40℃ ~ + 85℃

Technical Specification

Product Name

3-port 10/100M Industrial Ethernet Fiber Switch /Media Converter

Product Model

MR-I1F2T-SC20

Interface

2 x 10/100M copper RJ-45 ports, 1x 100M Optical fiber port

Switch Processing Scheme

Store-and-Forward

Transmission Distance

Multi-mode 2KM, single-mode 25KM

MTBF

539608 hours

Performance

Switching Capacity: 1.2G

Buffer Memory: 448KB

MAC Address: 2K

Forwarding Rate: 0.45Mpps

Standards Compliance

IEEE802.3: CSMA/CD;

IEEE802.3i: 10Base-T;

IEEE802.3u: 100Base-T;

LED Indicators

Power: PWR; Link; L/A

Power

Removable 5 green terminal wiring

(Power is not included in the package )

Product Size / Weight

119x100x30mm / 0.35kg

Working Environment

Working Temperature: -40~80℃;
Storage Temperature: -40~85℃;

Working Humidity: 5%~95%(non-condensing);
Storage Humidity: 5%~95%(non-condensing);
Working high: Altitude of 3000 m(10,000ft);
Storage high: Altitude of 3000 m(10,000ft);

Radiation

CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B

Safety

CE Mark, commercial;
CE/LVD EN60950

Warranty

5 years warranty


Application


Industrial Poe Switch Din Rail Mount Type FE 100Mbps DC 10-52V

Dimension

Industrial Poe Switch Din Rail Mount Type FE 100Mbps DC 10-52V

Installation

Industrial Poe Switch Din Rail Mount Type FE 100Mbps DC 10-52V

Product Packing

Industrial Poe Switch Din Rail Mount Type FE 100Mbps DC 10-52V

Reliablity Assurance

Industrial Poe Switch Din Rail Mount Type FE 100Mbps DC 10-52V

Industrial Poe Switch Din Rail Mount Type FE 100Mbps DC 10-52V

For more details, welcome to inquire us freely.
