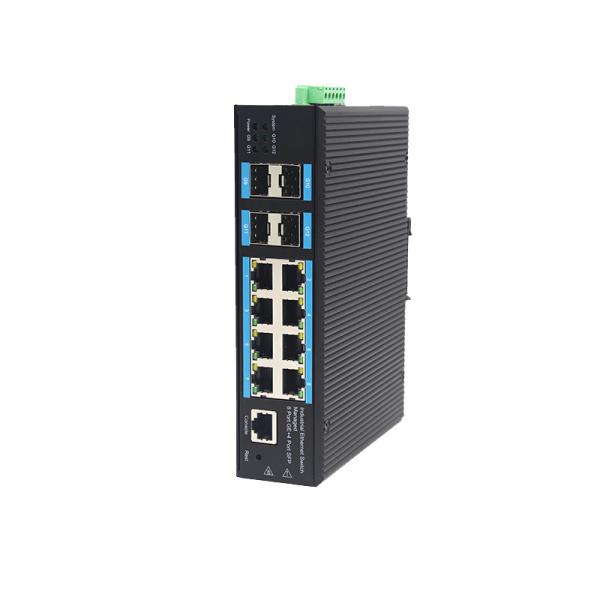

Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port
Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port
Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port
Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port
Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port
Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port
Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port
Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port
Specifications
Brand Name :
Mray
Model Number :
MR-IM4GF8T-SFP
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/week
Delivery Time :
1~2 days for samples
Packaging Details :
1pcs/box, 30pcs per standard export carton
Product name :
Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45
Data rate :
1000Mbps
Fiber Port :
4 SFP port
UTP Port :
8 RJ45 port
Installation :
DIN Rail Type
Warranty :
5 Years
Description

Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port

Description

Miray's MR-IM4G8TP-SFP is the 10/100/1000 Mbps managed industrial fiber switch, operating temperature -40 ℃ to + 85 ℃, meet IP30 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Features

​

  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 4 x 1000Mbps SFP fiber ports
  • 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~85 ° c
  • Intelligent power consumption detection and classification
  • NF-Ring ring network patent technology (Fault recovery time<20ms)
  • IGMP Snooping, GMRP and static IGMP
  • VLAN,PVLAN, control broadcast domain
  • IEEE802.1p_QOS
  • Port trunking, rate control, broadcast storm control
  • SNMP, Telnet, WEB
  • SSH,SSL,ACL, automatic MAC address bounding
  • Support port mirroring
  • Alarming: support ARP listening, power down, and ring-alarm
  • Support link monitoring

Technical Specification

Product Name

10/100/1000Mbps managed Industrial Fiber Switch (4F+8TP)

Model No.

MR-IM4GF8T-SFP

Port

4 x 1000Mpbs SFP ports

SM:1310nm/1550nm,20Km

1490nm/1550nm,40~120Km

MM:1310nm,2Km

8 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode:storage and forward

System bandwidth:40Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs

Power, network, fiber

Power supply

Input voltage: DC 12-36V

No-load power consumption: 5W

Reverse polarity protection: support

Environment

Working temperature:-40°～ 85°C

Storage temperature:-40°～ 85°C

Working humidity:10%～90%,non-condensing

Storage humidity:10%～95%,non-condensing

Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4

Safety

CE Mark ,commercial

CE/LVD EN60950

Mechanical information

Shell:Corrugated metal shell

Safety class:IP40

Dimension:158 x 114.8 x 60mm

Mounting method:Din-rail mounting

Warranty

Replacement within 1 year; 5 years repairing

Application


Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port

Installation

Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port

Product Packing

Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port

Reliablity Assurance

Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port

Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port

Din Rail Managed Industrial Gigabit Ethernet Switch 8 Ports RJ45 4 SFP port

For more details, welcome to inquire us freely.
