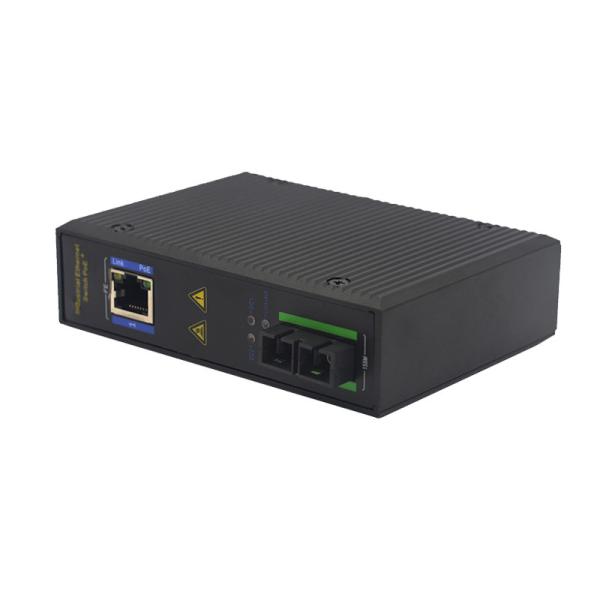

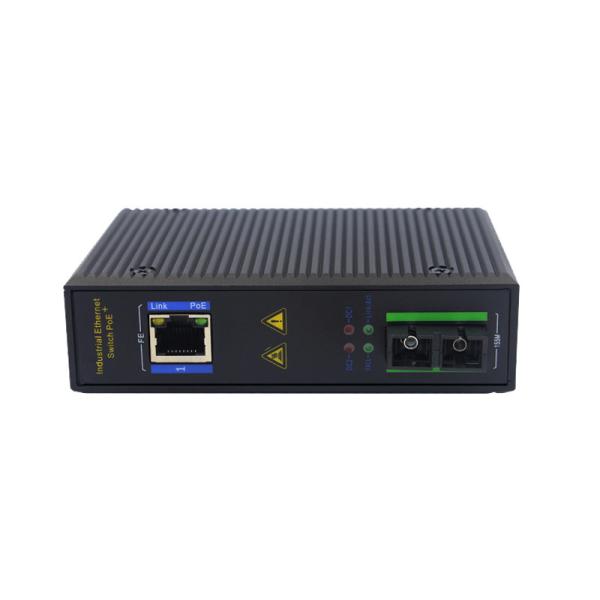

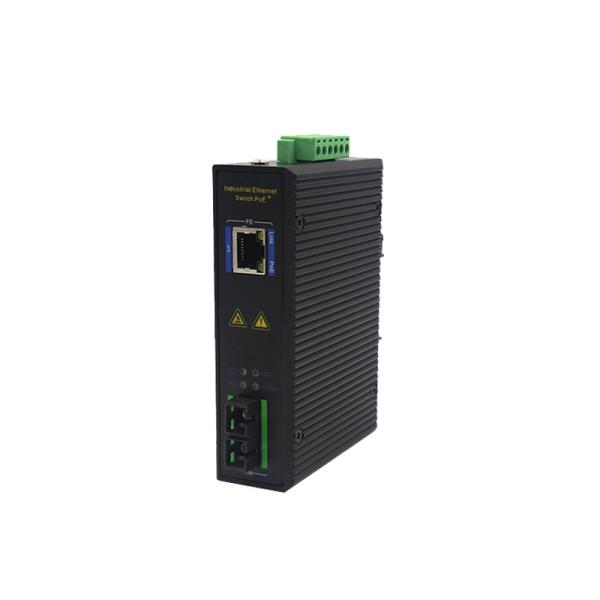

100Mbps SC Industrial Ethernet Switch Poe Din Rail Mounted 850nm
100Mbps SC Industrial Ethernet Switch Poe Din Rail Mounted 850nm
100Mbps SC Industrial Ethernet Switch Poe Din Rail Mounted 850nm
100Mbps SC Industrial Ethernet Switch Poe Din Rail Mounted 850nm
100Mbps SC Industrial Ethernet Switch Poe Din Rail Mounted 850nm
100Mbps SC Industrial Ethernet Switch Poe Din Rail Mounted 850nm
Specifications
Brand Name :
Mray
Model Number :
MR-I1F1T-SC20
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/week
Delivery Time :
1~2 days for samples
Packaging Details :
1pcs/box, 30pcs per standard export carton
Product name :
Industrial Fiber Media Converter
Data rate :
100Mbps
Communication mode :
Full-Duplex & Half-Duplex
Installation :
DIN rail kit and wall mount ear
Ports :
≤ 8
Warranty :
5 Years
Products status :
Stock
Power supply :
DC 10-52V
Description

Din Rail 10/100m Fast Ethernet Industrial Switch Industrial Fiber Media Converter

Description

Miray’s MR-I1F1T-SC20 Industrial fiber media converter is a 1 FX port 1 RJ45 port Ethernet media converter, which can implement mutual conversion between10Base-T/100Base-TX twisted pair electrical signal and 100Base-FX optical signal. Foway FC540B series media converter provide 2 RPS (Redundant power supply) input : 9.6 ~ 60 VDC and 18 ~ 30VAC , it can be connected to a DC or AC power supply. Besides, It can work under the -40 ~ 75°C , With IP40 environmental protection grade, suitable for any industry . MR-I1F1T series with the DIP switch , can enable or disable broadcast storm protection, for different industrial applications provide another flexible solution

Features

​

• 1 Port 10/100Mbps RJ45 with Auto Uplink , 1 port 100Mbps SC

• Automatic MAC address learning and aging

• Automatically support IGMP (Multicasting)

• 10/100Mbps Auto-negotiation , auto-MDI-MDI-X

• LED indicators for monitoring power/link/activity

• Supports 10/100Mbps-Full/Half-duplex

• Supports Wall-mount and DIN-Rail installation for lightning protection

• Supports Daisy-Chain connection

• Supports Broadcast Storm Control

• Super lightening protection, IP40 protection

• Excellent heat elimination without cooling fan

• Redundant dual DC power inputs

• Redundant Power Inputs

• Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City

• Harsh industrial environment or higher requirement

• -40℃~+85℃ operating temperature range

• 5-Year Warranty

Technical Specification

Parameters

Specifications

Access mode

10/100Mbps

Standard

IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE 802.3x Flow Control,IEEE802.1d Spanning Tree,IEEE802.1q vlan,IEEE802.1p Qos

Wavelength

850nm/1310nm/1550nm

Transmission distance

Dual-fiber multi-mode: 2Km; dual-fiber single-mode: 25/40/60/80/100/120Km;single-fiber single-mode: 25/40/60/80/100Km
Category-5 twisted pairs: 100m

Port

One RJ45 port: Connected to STP/UTP category-5 twisted pairs
One fiber port: Multi-mode – SC or ST (fiber size: 50,62.5/125μm)
Single mode – SC/FC fiber port (fiber size: 9/125μm)
Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125 μ m)

Conversion mode

Medium conversion, storing and forwarding/straight-through

MAC address table

I K

Buffer space

1Mbit

Flow control

Full duplex state: flow control; half-duplex state: back pressure mode

Delay

Storing & forwarding: 9.6 μ s; straight-through: 0.9 μ s;

Bit error rate

<1/1000000000

MTBF

100,000 hours

LED

FX LINK/ACT (fiber link/action)
SPD (twisted pair: transmission rate of 100M) TP LINK/ACT (twisted pair link/action);P1 (power supply P1) ,P2(power supply P2)

Power

12/24/48 VDC,18 ~ 30VAC input

Power consumption

2W

Operating temperature

-40~75°C

Operating humidity

5%~90%

Storage temperature

-40~85°C

Storage humidity

5%~90% (non-condensing)

Dimensions

118mm×39mm×86mm (height * width * depth)


Application


100Mbps SC Industrial Ethernet Switch Poe Din Rail Mounted 850nm

Dimension

100Mbps SC Industrial Ethernet Switch Poe Din Rail Mounted 850nm

Installation

100Mbps SC Industrial Ethernet Switch Poe Din Rail Mounted 850nm

Product Packing

100Mbps SC Industrial Ethernet Switch Poe Din Rail Mounted 850nm

Reliablity Assurance

100Mbps SC Industrial Ethernet Switch Poe Din Rail Mounted 850nm

100Mbps SC Industrial Ethernet Switch Poe Din Rail Mounted 850nm

For more details, welcome to inquire us freely.
