Standalone type RJ45 to fiber media converter 10g media converter SFP media converter
Standalone type RJ45 to fiber media converter 10g media converter SFP media converter
Standalone type RJ45 to fiber media converter 10g media converter SFP media converter
Standalone type RJ45 to fiber media converter 10g media converter SFP media converter
Standalone type RJ45 to fiber media converter 10g media converter SFP media converter
Standalone type RJ45 to fiber media converter 10g media converter SFP media converter
Specifications
Brand Name :
Mray
Model Number :
MR-10G-SFP
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 pair
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/week
Delivery Time :
1~2 days for samples
Packaging Details :
1pcs/box, 40pcs per standard export carton
Product name :
fiber media converter 10g media converter
Data rate :
10Gb/s
Fiber Type :
SFP+ Slot
Distance :
10km,20km, 40km, 80km, 120km
Wavelength :
850nm/1310nm/1550nm
Operating temperature :
0℃ to +70℃
Connector :
SFP+
Warranty :
3 Years
Description

Standalone type RJ45 to fiber media converter 10g media converter SFP media converter

Description

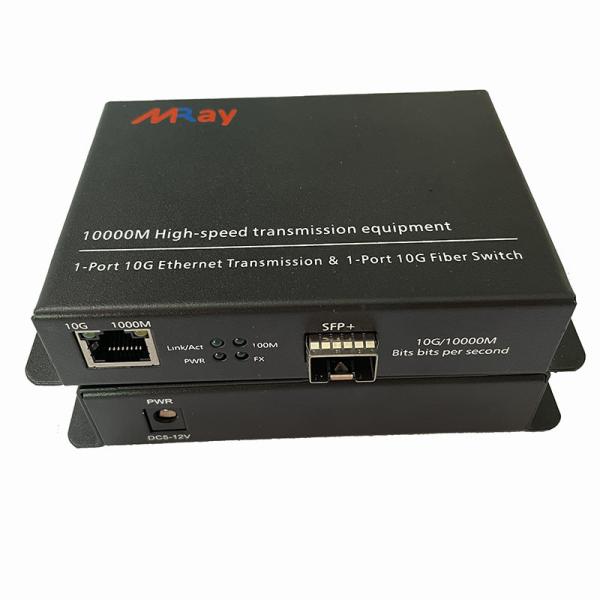

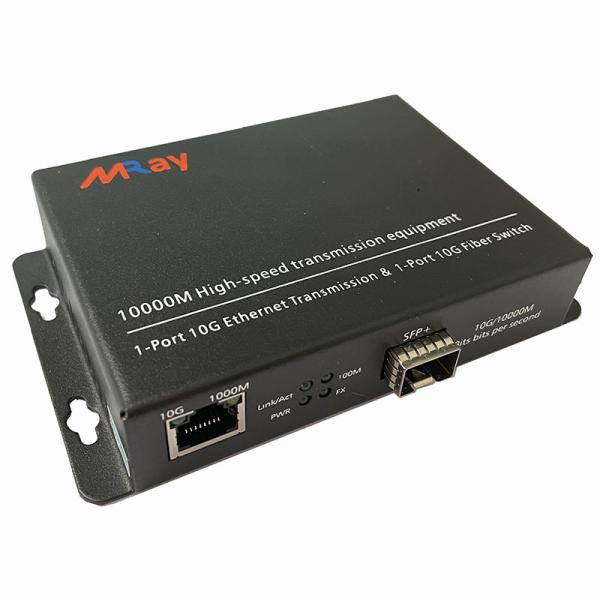

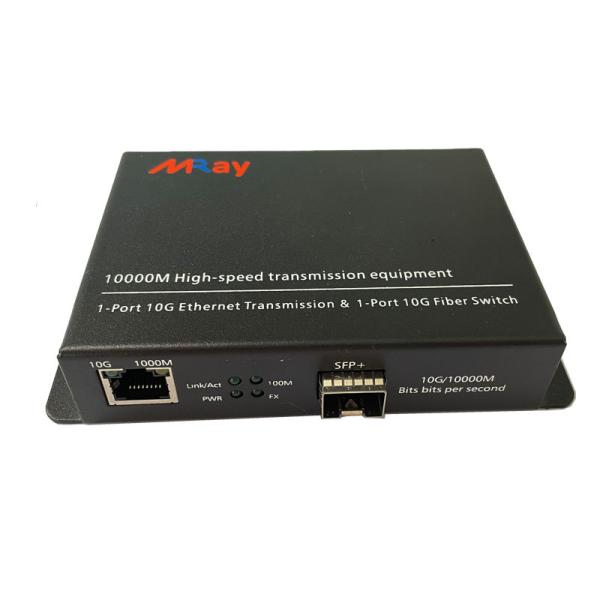

Miray 10G Base-T to 10G Base-R Media Converter supports two types media for network connection such as 10GBase-T and 10GBase-FX. The bridge media converter is designed with a 10Gbase Ethernet PHY chip that connects two types segments operation smoothly. This converter can be used as standalone unit or as slide-in module to the 19" converter rack Chassis for use at a central wiring closet.

Key Features

  • Support Jumbo Frame
  • Transparent Transport and very low delay
  • Support hot plugging
  • Full State Led display
  • Easy installation
  • Provide reliable long-distance connection
  • Fast connection with multi-function
  • Small portable size case
  • Plug and play

Technical Specification

Specifications
Product Name SFP 10GBase-TX to 10GBase-FX Media Converte
Ethernet Port Connector: 2 RJ45
Data Rate: 10/100/1000M
Distance: 25km
UTP Type:2 UTP
Brand Name Miray
Standards IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 10GBase-SX/LX
IEEE802.3x Flow control
IEEE802.1p QoS
IEEE802.1d Spanning Tree
IEEE802.1q VLAN
Model Number RTX-10G SFP+ Media Converter
Standards IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 10GBase-SX/LX
IEEE802.3x Flow control
IEEE802.1p QoS
IEEE802.1d Spanning Tree
IEEE802.1q VLAN
Connector Type 1 x RJ45
1 x SFP slot
Ethernet Port(EP) Connector: RJ45
Data Rate: 10Gbps
Distance: 100Meters
Full-Duplex and Half-Duplex auto-negotiation
UTP Type: UTP-5E or higher level
Power Consumption 0.75-3W
Buffer Space 1Mbit
Working Environment Operating Temperature: -10 ° ~ 55 ° C
Storage Temperature: -40 ° ~ 70 ° C
Relative Humidity: 5-90% ( no condensation)
Warranty 5 years
Fiber Port(FP) Connector: SFP slot
Data Rate: 10G
Optical wavelength: 850nm/1310nm/1490nm/1550nm
Distance: 550m～100km
Processing Type Store and Forward
Power Supply Power type: External Power Supply
Input Voltage :AC100V~ 250V
Output Voltage: DC12V

Ordering Information

Part Number

Description
MR-1001S20 10/100/1000M Dual fiber SM 20KM SC External Power Supply
MR-1001SFP 10/100/1000M SFP Slot Media Converter External Power Supply
MR-10G-SFP 10G SFP+ Slot Media Converter External Power Supply

MR-1001S20AB

10/100/1000M Single fiber SM 20KM SC External Power Supply

MR-1001S40AB

10/100/1000M Single fiber SM 40KM SC External Power Supply

MR-1001S60AB

10/100/1000M Single fiber SM 60KM SC External Power Supply

MR-1001S80AB

10/100/1000M Single fiber SM 80KM SC External Power Supply
