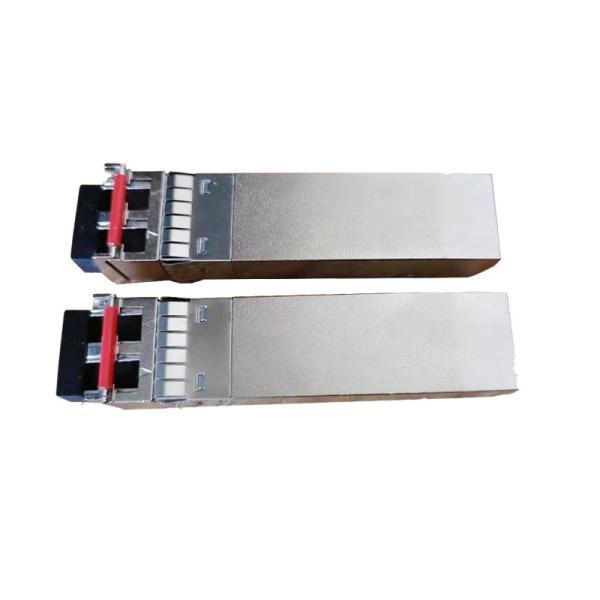

10Gb/S 1550nm ER 40km SFP+ Transceiver Module With CDR DDM
10Gb/S 1550nm ER 40km SFP+ Transceiver Module With CDR DDM
Specifications
Brand Name :
Mray
Model Number :
SFP-10G-ER
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
10pcs/plastic try, 500pcs per standard export carton
Product name :
SFP+ 10Gb/s 1550nm ER 40km SFP+ Transceiver Module
Data Rate :
10Gb/s
Connector :
Duplex LC
Wavelength :
1550nm
Distance :
40km
Application :
Telecommunication, Gigabit Ethernet
Power :
5~-2dBm
Sensitivity :
< -15dBm
Description

SFP+ 10Gb/s 1550nm ER 40km SFP+ Transceiver Module with CDR DDM

Description

Miray's SFP-10GB-ER SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fiber. The module consists of EML Laser, PIN and Preamplifier in a high- integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF 8472. The module data link up to 40km in 9/125um single mode fiber.

Features

  • Up to 40km transmission on SMF
  • Up to 10.3125Gbps
  • 1550nm EML laser and PIN receiver
  • SFI electrical interface
  • 2-wire interface for integrated Digital Diagnostic monitoring
  • SFP+ MSA package with duplex LC connector
  • Hot pluggable
  • Very low EMI and excellent ESD protection
  • +3.3V power supply
  • Power consumption less than 1.0W
  • Operating case temperature: 0~+70°C

Compliance

  • Compliant with IEEE 802.3ae-2002
  • Compliant with MSA SFF-8472
  • Compliant with MSA SFF-8431

Recommended Operating Environment

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Case Operating Temperature

Top

0

-

70

ºC

-40

85

Power Supply Voltage

VCC

3.14

3.3

3.47

V

Data Rate

BR

10.3125

11.3

Gbps

Max transmission Distance

TD

40

km

Coupled fiber

Single mode fiber

9/125um SMF

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Transmitter

Average Launched Power

PO

-1

+4

dBm

Note (1)

Extinction Ratio

ER

6

dB

Center Wavelength

λc

1530

1550

1565

nm

Note (2)

Spectrum Band Width (-20dB)

σ

1.0

nm

SMSR

30

dB

Transmitter OFF Output Power

Poff

-30

dBm

Output Eye Mask

Compliant with IEEE 802.3ae

Receiver

Input Optical Wavelength

λ

1270

1610

nm

Receiver Sensitivity

Psen

-16.0

dBm

Note (3)

Input Saturation Power (Overload)

Psat

0

dBm

LOS Assert

LOSA

-30

dBm

LOS De-assert

LOSD

-17

dBm

LOS Detect Hysteresis

Phys

0.5

dB

Dimension

10Gb/S 1550nm ER 40km SFP+ Transceiver Module With CDR DDM

Product Packing

10Gb/S 1550nm ER 40km SFP+ Transceiver Module With CDR DDM

Compatibility Test

10Gb/S 1550nm ER 40km SFP+ Transceiver Module With CDR DDM

Compatible Brands

10Gb/S 1550nm ER 40km SFP+ Transceiver Module With CDR DDM

Product Details

10Gb/S 1550nm ER 40km SFP+ Transceiver Module With CDR DDM

Production Flow

10Gb/S 1550nm ER 40km SFP+ Transceiver Module With CDR DDM

For more details, welcome to inquire us freely.
