1G SFP SX for Netgear AGM731F 1000BASE-SX MMF Mini-GBIC SFP Transceiver Module
1G SFP SX for Netgear AGM731F 1000BASE-SX MMF Mini-GBIC SFP Transceiver Module
1G SFP SX for Netgear AGM731F 1000BASE-SX MMF Mini-GBIC SFP Transceiver Module
1G SFP SX for Netgear AGM731F 1000BASE-SX MMF Mini-GBIC SFP Transceiver Module
1G SFP SX for Netgear AGM731F 1000BASE-SX MMF Mini-GBIC SFP Transceiver Module
1G SFP SX for Netgear AGM731F 1000BASE-SX MMF Mini-GBIC SFP Transceiver Module
Specifications
Brand Name :
Mray
Model Number :
GE-SX-MM850
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
10pcs/plastic try, 500pcs per standard export carton
Product Name :
1000BASE-SX MMF Mini-GBIC SFP Transceiver Module
Material :
Metal
Fiber Type :
Multimode
Reach :
550m
Wavelength :
850nm
Connector :
Duplex LC
Weight :
0.02kg
Output Power :
-9~-3dB
Description

1G SFP SX for Netgear AGM731F 1000BASE-SX MMF Mini-GBIC SFP Transceiver Module

Description

Miray's SFP-GE-SX Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the VCSEL laser and the PIN photo-detector . The module data link up to 550m in 50/125um multi mode fiber. The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

Features

  • Up to 1.25Gb/s data links
  • VCSEL laser transmitter and PIN photo-detector
  • Hot-pluggable SFP footprint
  • Duplex LC/UPC type pluggable optical interface
  • Low power dissipation
  • Metal enclosure, for lower EMI
  • RoHS compliant and lead-free
  • Single +3.3V power supply
  • Compliant with SFF-8472
  • Case operating temperature
  • Commercial: 0°C to +70°C

Applications

  • 1x Fiber Channel
  • Switch to Switch Interface
  • Gigabit Ethernet
  • Switched Backplane Applications
  • Router/Server Interface
  • Other Optical Links

Absolute Maximum Ratings

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Storage Temperature

Ts

-40

-

85

ºC

Relative Humidity

RH

5

-

95

%

Power Supply Voltage

VCC

-0.3

-

4

V

Signal Input Voltage

Vcc-0.3

-

Vcc+0.3

V

Recommended Operating Conditions

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Case Operating Temperature

Tcase

0

-

70

ºC

SF-8G1-01

Power Supply Voltage

VCC

3.14

3.3

3.47

V

Power Supply Current

ICC

-

280

mA

Data Rate

BR

1250/1250

Mbps

TX Rate/RX Rate

Transmission Distance

TD

550

m
Coupled fiber Multi mode fiber 50/125um MMF

Optical Characteristics

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3z

Device Interface

SFP MSA Compliant

LC duplex connector

Data Transfer Rate

1.25 Gbps

Wavelength

850 nm

Optical Output Power

-9 ~ -3 dBm

Distance

550 m (1804 ft.)

Special Features

Hot pluggable

Metal enclosure

Sensitivity

-20 dBm

Consumption: 1 W

Operating Temperature

0 – 70 °C /-40~80 °C (industrial type)

Operating Humidity

Max. 95% non-condensing

Weight

0.025kg

Certifications

CE

FCC

Warranty

3-year warranty

Ordering Information

Part Number

Description

GE-SX-MM

1.25G SFP module transceivers, multimode MM 850nm, Duplex LC, DDM, 550m

GE-SX-MM02

1.25G SFP module transceivers, multimode MM 1310nm, Duplex LC, DDM, 2km

GE-LX10-SM

1.25G SFP module transceivers, singlemode SM 1310nm, Duplex LC, DDM, 10km

GE-LX20-SM

1.25G SFP module transceivers, singlemode SM 1310nm, Duplex LC, DDM, 20km

GE-LX40-SM

1.25G SFP module transceivers, singlemode SM 1550nm, Duplex LC, DDM, 40km

GE-LX80-SM

1.25G SFP module transceivers, singlemode SM 1550nm, Duplex LC, DDM, 80km

GE-LX100-SM

1.25G SFP module transceivers, singlemode SM 1550nm, Duplex LC, DDM, 120km

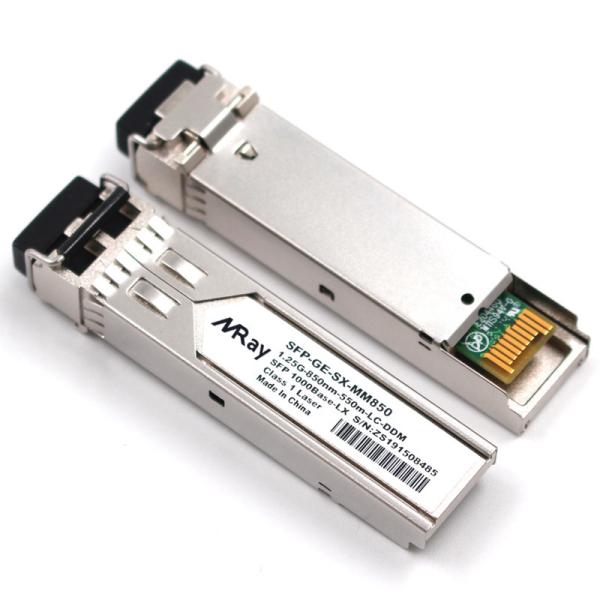

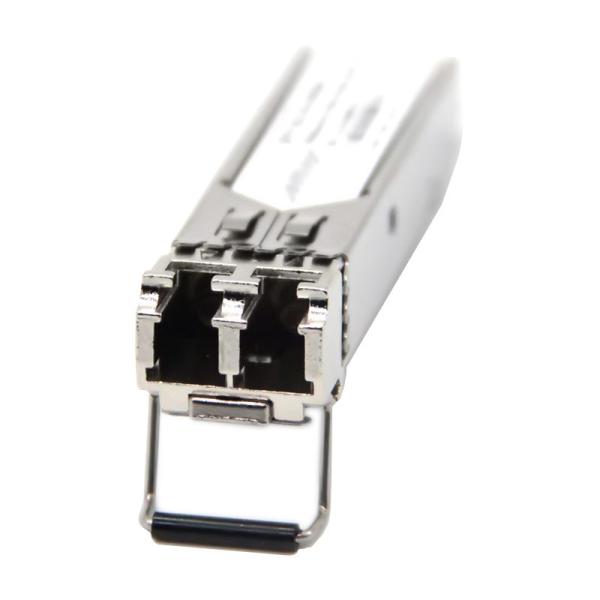

Product Show

1G SFP SX for Netgear AGM731F 1000BASE-SX MMF Mini-GBIC SFP Transceiver Module

Dimension

1G SFP SX for Netgear AGM731F 1000BASE-SX MMF Mini-GBIC SFP Transceiver Module

Product Packing

1G SFP SX for Netgear AGM731F 1000BASE-SX MMF Mini-GBIC SFP Transceiver Module

Compatibility Test

1G SFP SX for Netgear AGM731F 1000BASE-SX MMF Mini-GBIC SFP Transceiver Module

Compatible Brands

1G SFP SX for Netgear AGM731F 1000BASE-SX MMF Mini-GBIC SFP Transceiver Module

Production Flow

1G SFP SX for Netgear AGM731F 1000BASE-SX MMF Mini-GBIC SFP Transceiver Module

SFP List

1G SFP SX for Netgear AGM731F 1000BASE-SX MMF Mini-GBIC SFP Transceiver Module
