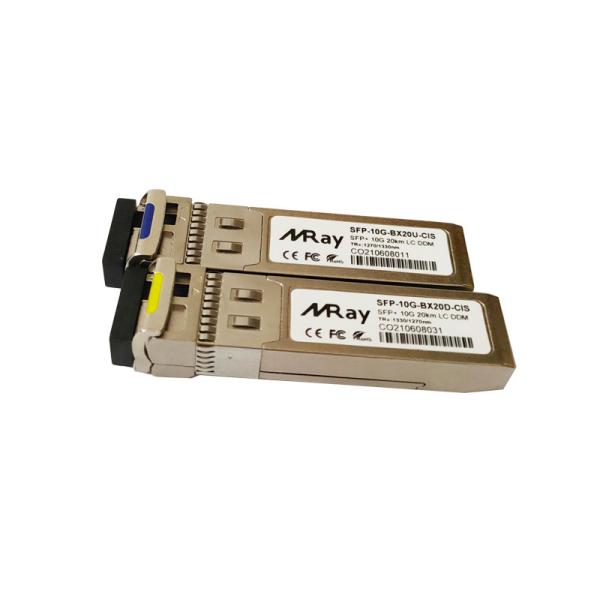

10G Bidi SFP+ Transceiver Module 20km LC DDM FCC Compatible With HP Aruba
10G Bidi SFP+ Transceiver Module 20km LC DDM FCC Compatible With HP Aruba
Specifications
Brand Name :
Mray
Model Number :
SFP-10G-BX20-SM1270/1330
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
10pcs/plastic try, 500pcs per standard export carton
Product name :
10G Bidi SFP+ Transceiver Module 20km LC DDM
Data Rate :
10Gb/s
Wavelength :
1270/1330nm
Distance :
20km
Power supply :
+3.3V
Operating temperature :
0~70 °C
Description

10G Bidi SFP+ Transceiver Module 20km LC DDM 10gb SFP Module Compatible With HP, Aruba

Description

Miray is your reliable supplier of SFP+ BiDi TX1330nm RX1270nm 10km 10GBASE LR transceiver. We produce and stock a large quantity of SFP+ BiDi TX1330nm RX1270nm 10km 10GBASE LR transceivers. All of our SFP+ BiDi TX1330nm RX1270nm 10km 10GBASE LR transceivers are tested in-house prior to shipping to insure that they will arrive in perfect physical and working condition. We guarantee the SFP+ BiDi TX1330nm RX1270nm 10km 10GBASE LR transceiver modules to work in your system without any problem.


In addition to SFP+ BiDi TX1330nm RX1270nm 10km 10GBASE LR transceiver, we also carry a wide array of other transceiver modules.

Features

  • Supports 9.95Gb/s to 11.3Gb/s bit rates

  • Hot-pluggable SFP+ footprint

  • Up to 20km transmission on SMF

  • Power dissipation<1.5W

  • 1270nm DFB laser and PIN receiver

  • 2-wire interface with integrated Digital Diagnostic monitoring

  • EEPROM with Serial ID Functionality

  • Compliant with SFP+ MSA with LC connector

  • Single + 3.3V Power Supply

  • Case operating temperature: 0ºC~+70ºC

Standard

  • Compliant with SFF-8472 and SFP+ M.SA
  • Compliant to SFP+ SFF-8431 and SFF-8432.
  • Compliant to 802.3ae 10GBASE-LR.

Applications

  • 10GBASE-BX at 10.3125 Gb/s
  • 10GBASE-BX at 9.953 Gb/s

Recommended Operating Environment

Parameter

Symbol

Min.

Typical

Max.

Unit

Case operating Temperature

TC

-5

+70

°C

Supply Voltage

VCCT, R

+3.135

+3.465

V

Supply Current

ICC

450

mA

Power Dissipation

PD

1.5

W

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Bit Rate BR 9.9 11.3 Gb/s
Optical Wavelength SFP-10G-BX10-SM1270 λ 1260 1270 1280 nm
SFP-10G-BX10-SM1330 1320 1330 1340
Average output power Po -6 -1 dBm
Optical Extinction Ratio ER 3.5 dB
Spectral width Δλ 1 nm
Side Mode Suppression Ratio SMSR 30 dB
Optical Eye Mask Compliant with IEEE802.3ae
Receiver
Bit Rate BR 9.9 11.3 Gb/s
Optical Wavelength SFP-10G-BX10-SM1270 λ 1320 1330 1340 nm
SFP-10G-BX10-SM1330 1260 1270 1280
Receiver Sensitivity Sen -14.5 dBm 1
Maximum Input Power PMAX 0 dBm
LOS De-Assert LOSD -15 dBm
LOS Assert LOSA -25 dBm
LOS Hysteresis LOSH 0.5 4 dB

Dimension

10G Bidi SFP+ Transceiver Module 20km LC DDM FCC Compatible With HP Aruba

Product Packing

10G Bidi SFP+ Transceiver Module 20km LC DDM FCC Compatible With HP Aruba

Compatibility Test

10G Bidi SFP+ Transceiver Module 20km LC DDM FCC Compatible With HP Aruba

Compatible Brands

10G Bidi SFP+ Transceiver Module 20km LC DDM FCC Compatible With HP Aruba

Production Flow

10G Bidi SFP+ Transceiver Module 20km LC DDM FCC Compatible With HP Aruba
10G Bidi SFP+ Transceiver Module 20km LC DDM FCC Compatible With HP Aruba

For more details, pls click here to download datasheet. 10G BIDI 20km 1270(1330).pdf
