24V1A POE Injector Power Ethernet Adapter 24W POE Devices Power Supply
24V1A POE Injector Power Ethernet Adapter 24W POE Devices Power Supply
24V1A POE Injector Power Ethernet Adapter 24W POE Devices Power Supply
24V1A POE Injector Power Ethernet Adapter 24W POE Devices Power Supply
24V1A POE Injector Power Ethernet Adapter 24W POE Devices Power Supply
24V1A POE Injector Power Ethernet Adapter 24W POE Devices Power Supply
Specifications
Brand Name :
Mray
Model Number :
MR-PA2410
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/week
Delivery Time :
1~2 days for samples
Packaging Details :
1pcs/box, 40pcs per standard export carton
Product name :
24W POE Switching Power Supply
Outlet connector :
RJ45 Connector
Power :
24W
Standard :
IEEE802.3af
Power Supply Mode :
45(+) 78(-)
Input Power AC Voltage :
100~240 VAC
Description

24V1A POE Injector Power Ethernet Adapter 24W POE Switching Power Supply


Description

POE (Power Over Ethernet) is a technology solution that, under the case of no any change for current Ethernet Cat5 wiring/cabling infrastructure, not only transfer data signal but also provide direct current power for some IP based terminal device (like IP telephony, Wireless LAN access point, Network camera, etc.).

POE technology can minimize the cost while ensuring the normal operation of the existing network and the safety of the existing structured cabling.

POE adapter provide a power solution for the related device, it can supply power and simultaneously be a media for data transfer in anywhere there is a cat5 cable.

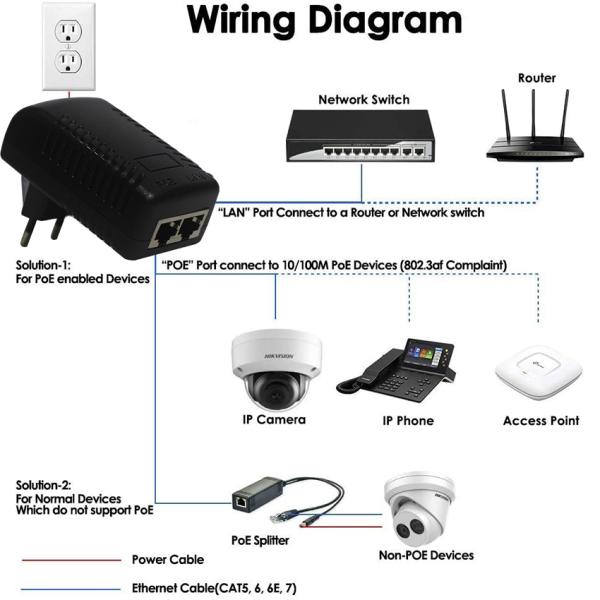

Application

  • PoE Injector/Midspan and Power Supply in one unit
  • DC power-over-Ethernet devices
  • VoIP (Voice over Internet Protocol) telephones
  • Wireless LAN Access Points and Bridges
  • IP surveillance cameras
  • DC Full-ODU(outdoor unit)high capacity microwave radios with POE capability


Features​

  1. Cost Saving, No Power Cabling for WLAN AP, IP Phone and any supported IEEE802.3af Powered Device
  2. Meeting IEEE 802.3af/at standards and more sufficiently is able to provide power to PD devices
  3. Small lightweight plastic enclosure
  4. Built-in universal 100-240V AC switching power supply
  5. Standard RJ45 Cat.5 Ethernet data input and output
  6. Easy, convenient, and simple to use


Technical Specification

Model:MR-PA2410
Input:100-240V,50-60Hz
Output:24V1A 24W
Power Cord:US/EU/UK/AU
Color:Black
Size:/
Packing:Brown Box
Material for PCB & Housing:ABS+PC+Fireproofing marterial
Delivery Date:Within 2-3 working days after confirm the payment
Warranty:24 months
Approved:CE,FCC,RoHS, SAA, PSE
Protection:SCP,OVP,OCP,OTP
Test:Temperature test; Vibration test; Drop-Test;Over charging and discharging test
Line Regulation:+/-5%
Load Regulation+/-5%
Normal Operating Temperature and Humidity:Operating Temperature: 0°C to 45°C
Humidity:10% to 90%RH

Ordering Information

Part Number

Description

MR-PA4805

POE Module Power Supply, 48V0.5A, 24W

MR-PA2410

POE Module Power Supply,24V1A, 24W

MR-PA2405

POE Module Power Supply,24V0.5A, 12W

MR-PA1810

POE Module Power Supply,18V1A, 18W

MR-PA1508

POE Module Power Supply,15V0.8A, 12W
MR-PA1210POE Module Power Supply,12V1A, 12W
MR-PA1220POE Module Power Supply,12V2A, 24W


Application Environment

24V1A POE Injector Power Ethernet Adapter 24W POE Devices Power Supply

Product Details

24V1A POE Injector Power Ethernet Adapter 24W POE Devices Power Supply

24V1A POE Injector Power Ethernet Adapter 24W POE Devices Power Supply

24V1A POE Injector Power Ethernet Adapter 24W POE Devices Power Supply

Dimension

24V1A POE Injector Power Ethernet Adapter 24W POE Devices Power Supply

Reliablity Assurance

24V1A POE Injector Power Ethernet Adapter 24W POE Devices Power Supply

For more details, welcome to inquire us freely.
