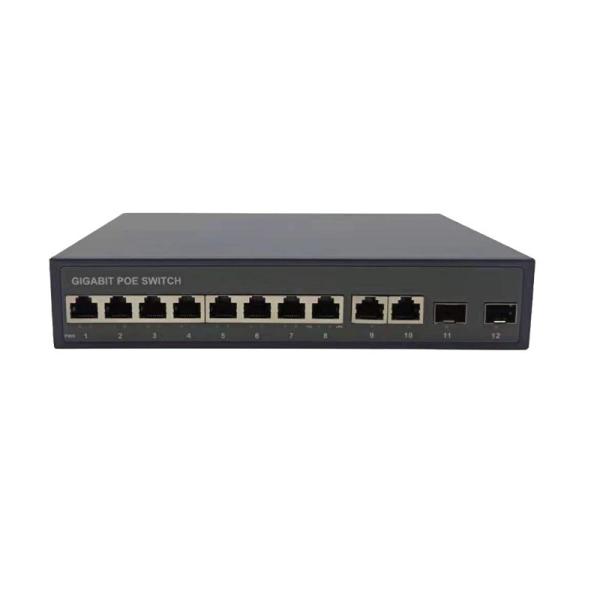

Gigabit Unmanaged POE Devices AC100V 8 Ports RJ45 2 Uplink Ports IEEE802.3af/At
Gigabit Unmanaged POE Devices AC100V 8 Ports RJ45 2 Uplink Ports IEEE802.3af/At
Gigabit Unmanaged POE Devices AC100V 8 Ports RJ45 2 Uplink Ports IEEE802.3af/At
Gigabit Unmanaged POE Devices AC100V 8 Ports RJ45 2 Uplink Ports IEEE802.3af/At
Specifications
Brand Name :
Mray
Model Number :
MR-P1008G-2G
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/week
Delivery Time :
1~2 days for samples
Packaging Details :
1pcs/box, 40pcs per standard export carton
Product name :
8 ports POE Switch
Standard :
IEEE802.3af/at
Uplink Ports :
2 RJ45 Uplink ports
Raw Material :
Iron Case
Voltage Range :
AC100-240V
PoE Power Supply Mode :
End-span method
Description

Gigabit Unmanaged 8 ports POE Switch with 2 Uplink Ports IEEE802.3af/at

Description

To fulfill the demand of High Power PoE for network applications with Gigabit transmission, MR-1008G-2G PoE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the MR-1008G-2G features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 96/120-watt PoE budget on the whole system, It is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / speed dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other network devices by doubling PoE power, more than the current conventional 802.3af PoE.

All RJ45 copper interfaces of the MR-1008G-2G support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. 2 extra 10/100/100Mbps RJ45 can be used for uplink.

Features​

  • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
  • 8-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device
  • 2-Port 10/100/1000Mbps RJ45 interface for uplink
  • Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE
  • Up to 8 IEEE 802.3af devices powered
  • Supports PoE Power up to 15.4 watts for each PoE port
  • Up to 4 IEEE 802.3at devices powered
  • Supports PoE Power up to 30 watts for each PoE port
  • 120-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
  • Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Integrates address look-up engine, supporting 8K absolute MAC addresses
  • 2M packet buffer
  • 10K Jumbo frame supports at 1000Mbps duplex mode
  • IEEE 802.1Q VLAN packet transparency support
  • Automatic address learning and address aging
  • Made of metal, desktop size and wall-mount design

Technical Specification

Item

Description

Model

MR-P1008G-2G

Power Supply

Power Supply Mode

City power

Voltage Range

AC100-240V

Power Consumption

The device <5W, POE power supply <96/120W

Network Port Parameter

Network Ports

1～8 Ports: 10/100/1000Mbps Ethernet port, adaptive control

Uplink 2 10/100/100Mbps RJ45

Transmission Distance

1~8 Ethernet Port:0~100m

Mandatory 10 Mbps reach up to 250m

2 uplink Ethernet Port:0~100m

Transmission Media

1~10 Ethernet Port:Cat5e/6 standard UTP cable,

POE Agreement

IEEE802.3 af/at standards

PoE Power Supply Mode

End-span method

PoE Power Supply Wattage

Each port≤30W,Whole device<96/120W

Network Switch Specification

Network Standard

IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T

Swap Mode

Store-and- forward

Switch Capacity

22Gbps

MAC Address List

8K

Status Indicators

Power Indicator Light

One power light (green)

Optical Fiber Port Indicator

One fiber link indication light ( green), Green light keeps on when the fiber port is well connected

PoE Indicator

1~8 PoE indicator light(yellow)

PoE Network Port LED

1~10 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data

Protection Level

Surge Immunity

Level 3, executive standard:IEC61000-4-5

Electrostatic Protection

1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard:IEC61000-4-2

Operating Environment

Working Temperature

-10℃～55℃

Storage Temperature

-40℃-85℃

Humidity(non-congeal)

0~95%

Mechanical Attributes

Dimensions (L*W*H)

202X140X45MM

Color

Black

Weight

1kg

Reliability

Mean time between failures (MTBF)

＞50000h

Ordering Information

Part Number

Description

MR-P1008G-2G

POE Switch, 8 ports 10/100/1000M + 2 Uplink GE port

MR-P1008G-1G1SFP

 POE Switch, 8 ports 10/100/1000M + 1 Uplink GE port 1 Uplink SFP port

MR-P1008G-2G2SFP

POE Switch, 8 ports 10/100/1000M + 2 Uplink GE ports 2 Uplink SFP ports

MR-P1016G-2G

POE Switch, 16 ports 10/100/1000M + 2 Uplink GE port

MR-P1016G-1G1SFP

 POE Switch, 16 ports 10/100/1000M + 1 Uplink GE port 1 Uplink SFP port
MR-P1016G-2G2SFP POE Switch, 16 ports 10/100/1000M + 2 Uplink GE port 2 Uplink SFP port


Application

Gigabit Unmanaged POE Devices AC100V 8 Ports RJ45 2 Uplink Ports IEEE802.3af/At

Reliablity Assurance

Gigabit Unmanaged POE Devices AC100V 8 Ports RJ45 2 Uplink Ports IEEE802.3af/At

For more details, welcome to inquire us freely.
