Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module
Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module
Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module
Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module
Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module
Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module
Specifications
Brand Name :
Mray
Model Number :
GE-SX-MM850
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
10pcs/plastic try, 500pcs per standard export carton
Product name :
1000BASE-SX 850nm MMF 550m SFP
Connector Type :
Duplex LC
Distance :
0.55KM
Form Type :
SFP
Power supply :
+3.3V
Operating temperature :
-40℃ to +85℃ , 0~70℃
Description

Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module

Description

Miray's 1G 850nm 550m SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 550m transmission distance with MMF. The fiber optic transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The 1000BASE-SX sfp modules are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features

  • Operating Data Rate up to 1.25Gbps
  • Single 3.3V Power Supply
  • Hot-Pluggable SFP Footprint Duplex LC Connector Interface
  • Class 1 FDA and IEC60825-1 Laser Safety Compliant
  • Operating Temperature: Com.0°C ~+70°C/Ind.:-40°C ~+85°C /Ext.:-20°C ~+70°C
  • Compliant with MSA SFP Specification
  • Compliant with SFF-8472

Applications

  1. Gigabit Ethernet/Fast Ethenet

  2. Fiber Channel

  3. SDH/SONET/ATM

  4. Switch to Switch interface

  5. Router/Server interface

  6. Other optical transmission systems

Recommended Operating Conditions

Parameter

Symbol

Min.

Typical

Max.

Unit

Case operating Temperature

Industrial

TC

-40

85

°C

Extended

-5

85

°C

Commercial

0

+70

°C

Supply Voltage

VCC

3.135

3.465

V

Supply Current

Icc

300

mA

Inrush Current

Isurge

Icc+30

mA

Maximum Power

Pmax

1

W

Transmitter Electro-optical Characteristics

VCC= 3.13V to 3.47V, TOP = 0 °C to 70 °C (GE-SX-MM850); TOP = -40 °C to 85 °C (GE-SX-MM850i)

Parameters

Symbol

Min.

Typ.

Max.

Unit

Note

Operating Date Rate

DR

1.0625

1.25

Gb/s

Optical Launch Power

Po

-9

-3

dBm

1

Optical Center Wavelength

λc

830

850

870

nm

Spectral Width (RMS)

Δλ

0.85

nm

Optical Extinction Ratio

ER

9

dB

Optical Eye Mask

IEEE802.3z

Relative Intensity Noise

RIN

-117

dB/Hz

Differential Data Input Swing

VIN

180

1200

mV

TX Disable Input Voltage-Low (TX ON)

TDISVL

GND

0.8

V

TX Disable Input Voltage-High (TX OFF)

TDISVH

2.0

Vcc

V

TX Fault Output Voltage-Low (TX Normal)

TFLTVL

GND

0.8

V

TX Fault Output Voltage-High (TX Fault)

TFLTVH

2.0

Vcc

V

Receiver Electro-optical Characteristics

VCC= 3.13V to 3.47V, TOP = 0 °C to 70 °C (GE-SX-MM850); TOP = -40 °C to 85 °C (GE-SX-MM850i)

Parameters

Symbol

Min.

Typ.

Max.

Unit

Note

Operating Date Rate

DR

1.0625

1.25

Gb/s

Receiver Sensitivity

PIN_min

-18

dBm

1

Maximum Input Power

PIN_max

-3

dBm

1

Optical Center Wavelength

λc

830

850

870

nm

LOS De-Assert

LOSD

-19

dBm

LOS Assert

LOSA

-38

dBm

LOS Hysteresis

LOSHY

0.5

dB

Differential Data Output Swing

VOUT

600

1000

mV

Receiver LOS Signal Output Voltage-Low

LOSVL

GND

0.8

V

Receiver LOS Signal Output Voltage-High

LOSVH

2.0

Vcc

V

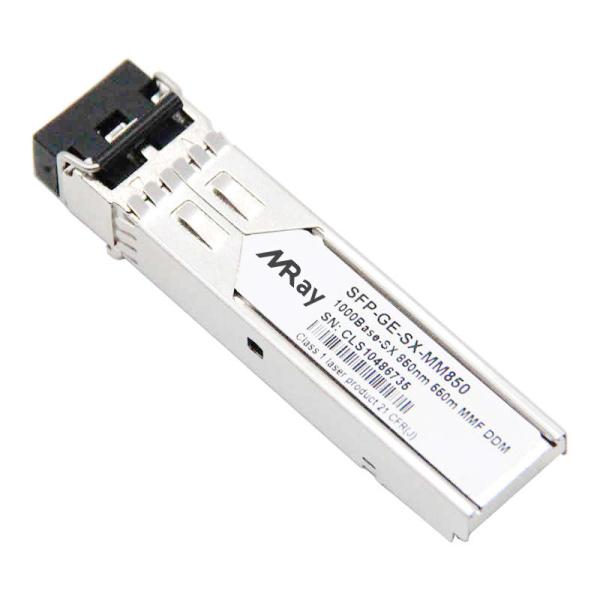

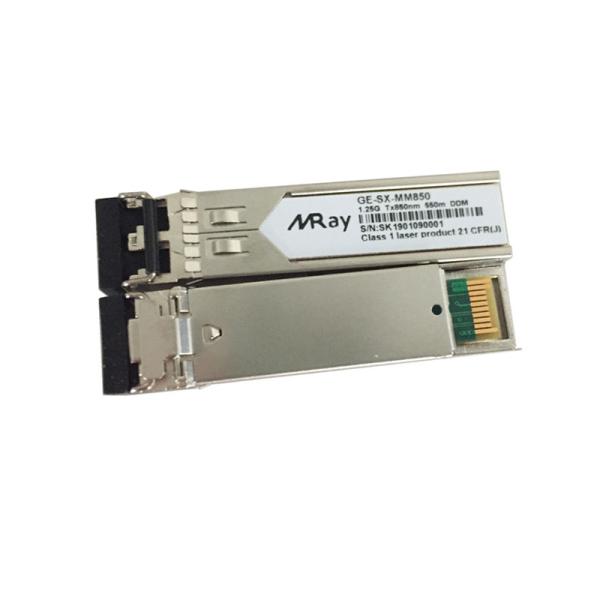

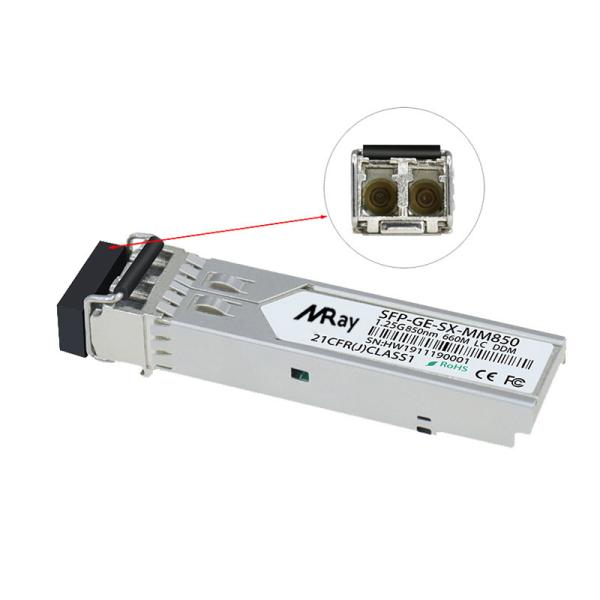

Product Show

Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module

Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module

Dimension

Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module

Product Packing

Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module

Compatibility Test

Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module

Compatible Brands

Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module

Production Flow

Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module

Why Choose Us

Juniper GLC-SX-MM Compatible 1000BASE-SX 850nm MMF 550m SFP Transceiver Module

If you need more information, pls do not hesitate in contacting us: sales@miraycomm.com
