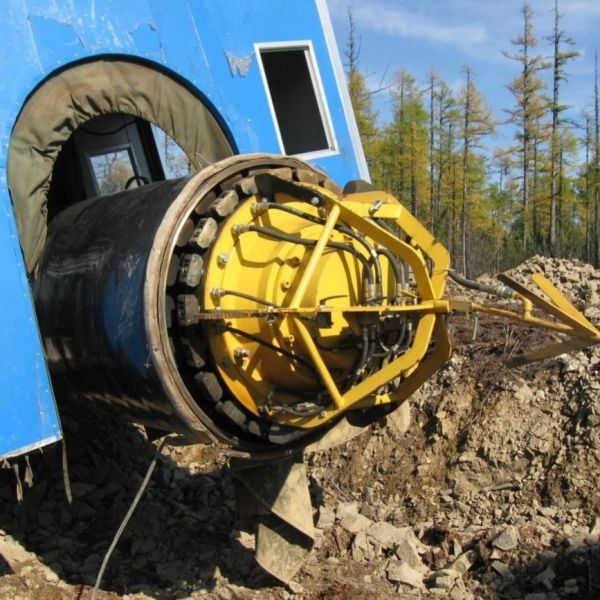

Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
Specifications
Brand Name :
WINCOO
Model Number :
HGDNQ6''~80''
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD+10700~18600+set
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10 set/month
Delivery Time :
30 days
Packaging Details :
Export package
Material :
Metal
Usage :
Pipe Clamp,industrial pipe
Color :
Bule/Balck/Red
Type :
Heavy Duty Pipe Clamp
Size :
Customized Sizes Acceptable
Function :
Clamping
Description

The pneumatic internal mouthpiece produced by our company is developed by absorbing advanced technology and experience of domestic and foreign products and combining with the construction characteristics of Chinese pipeline construction enterprises. Using compressed air as power, no pollution, especially suitable for the construction of water pipelines and oil and natural gas pipelines with high environmental protection requirements. It has the advantages of reliable performance, strong adaptability, quick action, accurate matching, compact structure, simple operation and accurate clearance adjustment. Product quality and performance can be comparable to the international similar products, including clearance type pneumatic inner mouthpiece, copper shoe type pneumatic inner mouthpiece, Marine pneumatic inner mouthpiece, fill the domestic market blank.

Pneumatic Internal Line-up Clamp Machine for Pipeline Construction

Product Features

1. Simple structure and beautiful appearance
2. Light weight, fast walking speed, strong climbing ability, small gas consumption
3. Large support, accurate clearance adjustment, greatly improve the construction efficiency
4. The valve parts are imported, the joint is made of stainless steel material to ensure that the air path is clean, and the joint type is C-type structure to ensure reliable sealing performance
5. The walking frame is manufactured strictly in accordance with the technological tooling to ensure the performance of the walking wheel set and improve the performance of the whole machine
6. From manufacturing to installation and commissioning, the whole machine is strictly implemented in accordance with national standards and processes, ensuring that the amount of misalignment and the precision of clearance adjustment is within 0.5mm, meeting the requirements of pipeline construction standards
Product Parameter
Non-self-propelled Clamp (Manual Pulled)
Model
Pipe Size
Piston No.s
Piston Power
L
W
H
Weight
Cube
(mm)
(KN)
(mm)
(mm)
(mm)
(kg)
(m3)
HGDNQ6’'
168
6X2
134
1473
150
150
36
0.04
HGDNQ8''
219
6X2
209
1593
189
189
53
0.06
HGDNQ10’’
273
6X2
382
1665
240
240
60
0.09
HGDNQ12-14''
305-357
6X2
405
1751
280
280
100
0.14

Self-propelled Clamp (Travels Under Its Own Power)
Model
Pipe size (mm)
Pistons (Nos)
Piston
Power (KN)
Motor power (Hp)
L (mm)
W (mm)
H (mm)
Weight
(KG)
Cube
(M³)
HGDNQ16-18’’
406-457
8x2
959
1
2132
360
360
188
.29
HGDNQ20-22’’
508-559
10x2
1057
1.5
2434
480
480
296
.59
HGDNQ22-24’’
559-610
12x2
1268
1.5
2500
530
530
390
.72
HGDNQ24-26’’
610-660
12x2
1268
1.5
2672
580
580
418
.90
HGDNQ28-30’’
711-762
12x2
1748
1.5
2700
670
670
512
1.2
HGDNQ30-32’’
762-813
14x2
2937
3
2938
690
690
733
1.4
HGDNQ34-36’’
864-914
16x2
2937
3
3020
790
790
779
1.8
HGDNQ36-38’’
914-965
18x2
2937
3
3188
860
860
865
2.4
HGDNQ40-42’’
1016-1067
20x2
2937
3
3029
980
980
982
3.0
HGDNQ46-48’’
1168-1219
20x2
4855
3
3100
1050
1050
1420
3.7
HGDNQ48-50’’
1219-1270
22x2
4855
3
3517
1120
1120
1876
5.2
HGDNQ52-54’’
1321-1372
22x2
4855
3
3520
1210
1210
1988
5.4
HGDNQ56’’
1422
22x2
4855
3
3500
1310
1310
2187
6.6
HGDNQ60’’
1524
22x2
4855
3
3500
1310
1310
2187
6.6
HGDNQ62-66’’
1574-1676
24x2
4855
3
3864
1557
1557
2887
10.0
HGDNQ68-72’’
1727-1727
24x2
4855
3
3864
1557
1557
2887
10.0
HGDNQ76-80’’
1930-2032
30x2
4855
3
4000
1800
1800
3855
13.0

Product Major Component

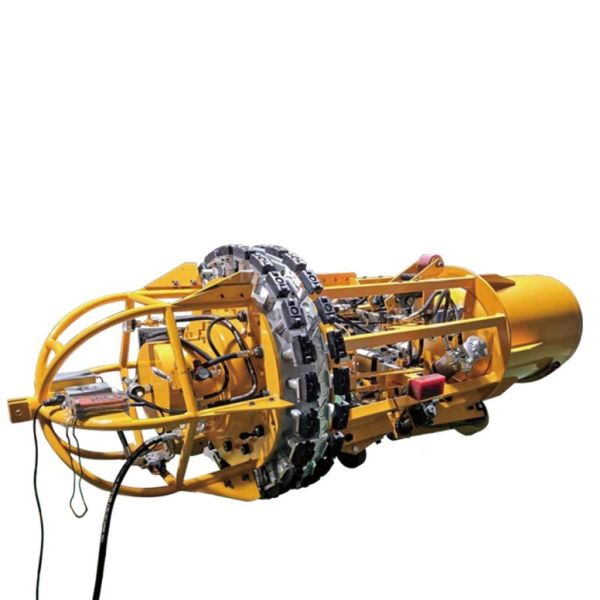

Main components of the mouthpiece: mouthpiece assembly (Swelling block), clearance cylinder, driving assembly, walking frame, walking wheel, brake assembly, gas tank, front cage frame, joystick (gas pipe), gas path assembly, etc., controlled by compressed air as power source. See the picture below.

Pneumatic Internal Line-up Clamp Machine for Pipeline Construction

1, Front cage frame

4, Back swelling block

2, Clearance cylinder

5, Gas path

3, Front swelling block

6, Gas tank

7, Adjustable nut

10, Brake assembly

13, Back walking wheel
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction

8, Mouthpiece assembly

11, Walking frame

9, Front walking wheel

12, Driving assembly

Application of Major Component

A. First of all, the air compressor is connected with the joystick (gas path) and the air inlet pipe on the front cage frame with a high pressure hose and a quick joint to achieve the purpose of filling or filling air; The joystick (gas path) is then connected to the control shaft on the front cage frame by a hook.
B. The joystick (gas path) is welded by hollow steel pipe, and its function:
1, Supplementary gas volume. 2, Air path control: front row rising, front row shrinking, back row rising, back row shrinking, clearance opening, clearance closing. 3, Control the forward movement of the mouthpiece.
C. The control cable is used to control the driving walking, braking, forward and backward pointing. When walking, the forward walking cable should be tightened, and the automatic brake will be applied when it is released to prevent too fast speed when going downhill. If it is necessary to move forward, quickly tighten the cable and quickly loosen the cable to realize the point walking.
D. The gas tank is installed at the end of the mouthpiece, and its function is as follows: 1, Realize the balance of the whole machine. 2, Gas storage.
E. The mouthpiece assembly is the core part of the clamp device, which is composed of the cylinder, the distributor and two groups of swelling block (holding claw), etc., which mainly completes the matching.
Product Photos
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
Pneumatic Internal Line-up Clamp Machine for Pipeline Construction
