Tank Corner Fillet Welding Equipment for Tank Bottom Plate
Tank Corner Fillet Welding Equipment for Tank Bottom Plate
Tank Corner Fillet Welding Equipment for Tank Bottom Plate
Tank Corner Fillet Welding Equipment for Tank Bottom Plate
Tank Corner Fillet Welding Equipment for Tank Bottom Plate
Tank Corner Fillet Welding Equipment for Tank Bottom Plate
Tank Corner Fillet Welding Equipment for Tank Bottom Plate
Tank Corner Fillet Welding Equipment for Tank Bottom Plate
Tank Corner Fillet Welding Equipment for Tank Bottom Plate
Tank Corner Fillet Welding Equipment for Tank Bottom Plate
Tank Corner Fillet Welding Equipment for Tank Bottom Plate
Tank Corner Fillet Welding Equipment for Tank Bottom Plate
Specifications
Brand Name :
WINCOO
Model Number :
MLTW-P/J
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD+1200~2080+set
Payment Terms :
L/C, D/P, T/T
Supply Ability :
100 set/month
Delivery Time :
30 days
Packaging Details :
Export package
Description

Product Introduction

Large tank Angle welder is a kind of equipment specially used for welding large tanks. It can complete the corner and bottom of the tank welding work, to ensure the tightness and stability of the tank. The main components of large tank Angle welder include welding joint, welding power supply, control system, transmission system and so on.

Tank Corner Fillet Welding Equipment for Tank Bottom Plate Tank Corner Fillet Welding Equipment for Tank Bottom Plate

Technical Parameter

Welding Process SAW
Model MLTW-P/J
Plate Thickness 6mm and above
Plate Material Carbon steel, Stainless Steel
Groove Square groove, Single V groove, Double V groove, Lap joint
Dimension(L x W x H) 800mm x 500mm x 700mm
Gross Weight 90kg

Product Features

Large tank Angle welder is characterized by high efficiency, precision and stability. It can automatically control welding speed and current to ensure welding quality and stability. At the same time, it also has intelligent control system, according to different welding process and materials, can automatically adjust the welding parameters, improve the welding efficiency and quality.

Why choose a large tank Angle welder? First of all, the welding work of the corner of large storage tank is complicated, and it needs high precision and high stability equipment to complete. The large tank Angle welder is the professional equipment to meet this demand. Secondly, large tank Angle welder can improve welding efficiency and quality, reduce manual error and labor intensity, reduce production costs and improve production efficiency.

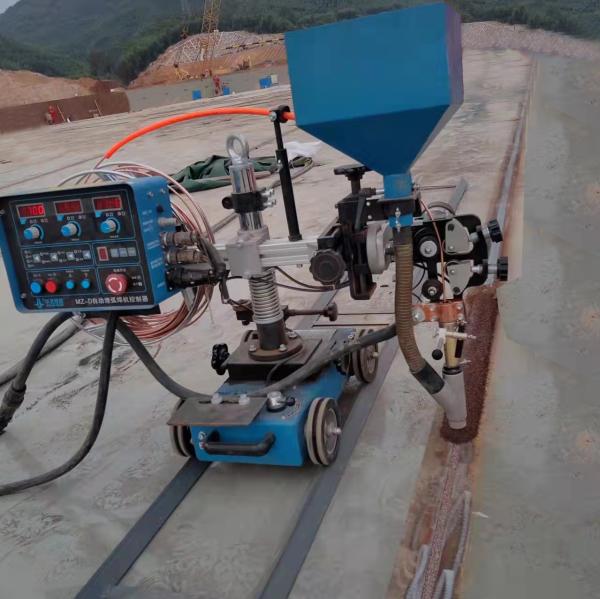

Construction Site Photos

Tank Corner Fillet Welding Equipment for Tank Bottom Plate

In short, the large tank Angle welder is an important equipment, it can ensure the tightness and stability of the tank, improve production efficiency and quality, reduce production costs. Therefore, the selection of an efficient, accurate and stable large tank Angle welder will have a positive impact on the production and economic benefits of enterprises.
